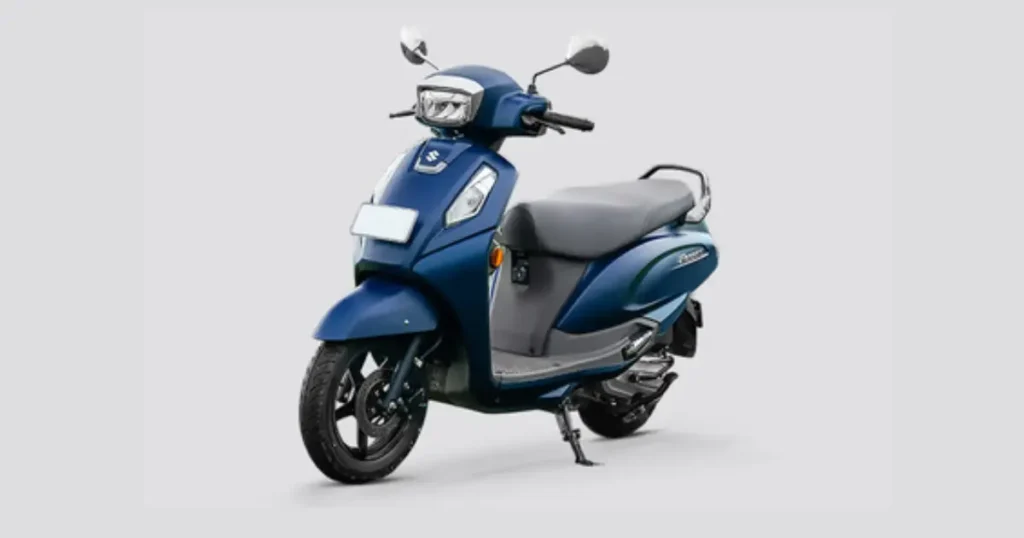

Suzuki Access 125 BS6 Not Starting? Complete Troubleshooting

Getting stuck with a scooter that refuses to start can ruin your entire morning plan. It always seems to happen when you are already running late for an important meeting. A few months ago in Boston, I met a rider kicking his scooter until he was completely exhausted. The suzuki access 125 bs6 not starting issue had him convinced his fuel injection system was totally destroyed. I walked over, flipped his engine kill switch back to the “on” position, and the motor purred to life instantly. Before you panic or call an expensive tow truck, let us walk through a simple step-by-step diagnostic process together to get your machine running again.

Suzuki Access 125 BS6 Not Starting? Check These Things First

Before removing panels or buying new parts, spend five minutes checking the basics. I once helped a neighbor on a humid Monday morning after a heavy rain. We were convinced the battery had failed, but the side-stand wasn’t fully returning because of built-up mud. A quick clean, and the scooter started on the first press.

What Happens When You Press the Self-Start?

When you press that button, your scooter communicates its exact internal state through sounds and light. Paying close attention to these immediate reactions narrows your focus to the electrical, mechanical, or safety circuit systems.

• No response at all: The starter button feels completely dead with zero sound.
• Single clicking sound: You hear one clear click from beneath the body panel.
• Rapid clicking: A continuous buzzing or machine-gun clicking noise occurs.
• Starter motor spins but engine won’t start: The motor cranks fast but never catches fire.
• Engine starts then stalls: The unit fires up briefly then dies out within seconds.
• Slow cranking: The motor turns over very heavily, dragging its feet sluggishly.
• Kick start also doesn’t work: Neither the battery nor manual leg power gets results.
• Dashboard powers on but engine won’t crank: Lights look bright, but the motor remains frozen.

Five-Minute Quick Inspection Checklist

Run through these simple checkpoints right where you are parked before fetching any mechanical tools. Most starting failures come down to an overlooked safety feature or a simple loose wire.

• Fuel level: Verify you actually have petrol left inside the storage tank.
• Battery voltage: Ensure your power cell holds a steady charge to crank.
• Engine kill switch: Double-check that the red handlebar toggle is set to run.
• Side-stand position: Kick the stand completely up into its top resting slot.
• Brake lever switch: Pull the left front brake lever firmly against the handlebar grip.
• Main fuse: Look inside the fuse box to spot any broken metal links.
• Battery terminals: Check that both cable clamps are tight with zero wiggle room.
• FI warning light: Watch the instrument cluster for a glowing amber malfunction light.
• Key position: Ensure the main ignition key is turned fully to the run icon.

Warning Signs That Need Immediate Attention

Certain symptoms indicate that cranking the engine further could cause permanent physical damage or create an electrical hazard. Stop troubleshooting immediately if you notice any of these serious red flags.

• Burning smell: Acrid odor signaling melting plastic or overheating wires.
• Fuel leak: Puddles of raw petrol forming under the engine area.
• Smoke near wiring: Visible white or gray smoke rising from frame sections.
• Repeated blown fuse: A new fuse snaps the instant you turn the key.
• Loud grinding noise: Metal teeth scraping loudly inside the engine case.
• FI light staying on continuously: The system alerts you to an active component failure.

How the Suzuki Access 125 BS6 Starting System Works

The BS6 Access 125 uses electronic fuel injection and several safety systems. Understanding how they work together makes troubleshooting much easier.

Components Required for Starting

This modern scooter relies on a highly interconnected network of electronic controls and mechanical parts to fire up. Each piece must function flawlessly for the engine to complete its rotation.

• 12V battery: The primary electrical warehouse powering the entire electronic system.
• Starter motor: Converts electric juice into mechanical rotation to spin the crankshaft.
• Starter relay: High-current switch connecting the battery directly to the starter motor.
• Electronic Control Unit (ECU): The central computer brain managing all engine operations.
• Fuel injector: Tiny electronic valve spraying atomized fuel into the intake air.
• Fuel pump: Electric pump creating high pressure inside the petrol line.
• Ignition coil: Step-up transformer boosting low battery voltage into high-voltage arcs.
• Spark plug: Delivers the electrical spark to ignite the compressed fuel mixture.
• Crankshaft position sensor: Informs the ECU exactly when to trigger the spark.
• Side-stand switch: Safety cut-out that disables ignition if the stand remains down.
• Brake switch: Safety interlock requiring a brake pull before starter activation.
• Engine stop switch: Handlebar toggle allowing instant manual engine shutdown.

What Happens When You Press the Starter Button?

Starting your scooter sets off a lightning-fast chain reaction within the electrical system. The process follows a strict sequence designed to protect the engine and rider.

• ECU powers up: Turning the key wakes up the main control computer.
• Fuel pump primes: A soft humming sound indicates fuel lines are building pressure.
• Safety switches are checked: The computer verifies the brake is pulled and stand is up.
• Starter relay activates: Electrical juice travels down to close the high-power circuit.
• Starter motor turns: Physical gears engage to rotate the inner engine components.
• Injector sprays fuel: Precise mist enters the chamber at the exact perfect moment.
• Spark plug ignites the mixture: An electrical arc fires, initiating sustainable internal combustion.

Most Common Reasons a Suzuki Access 125 BS6 Won’t Start

Most no-start complaints are caused by electrical issues, fuel delivery problems, or safety switch faults. Following a logical sequence prevents unnecessary repairs.

Weak or Dead Battery

A drained battery is the absolute primary culprit behind starting failures on fuel-injected scooters.

Common Symptoms

You will notice the digital instrument cluster fading out or blinking erratically when you hit the starter button. The horn will sound weak, and the headlight will dim significantly, accompanied by a rapid clicking noise.

Battery Voltage Test

Connect a digital multimeter across the positive and negative terminals while the ignition key is turned off. A perfectly healthy battery should show a reading between 12.6V and 12.8V on the screen.

Healthy Battery: 12.6V - 12.8V
Weak Battery:    12.0V - 12.4V
Dead Battery:    Below 12.0V

Recharge vs Replace

If your battery voltage reads between 12.0V and 12.4V, a slow charge on a dedicated battery charger can often restore its health. However, if the battery is more than three years old or drops below 10V while cranking, replacement is necessary.

Loose or Corroded Battery Terminals

Clean connections are vital because fuel-injected scooters are highly sensitive to even minor voltage drops.

Signs of Poor Connection

You might see a chalky white or green powdery crust building up around the metal terminal clamps. The dashboard may look bright initially but drop dead the exact millisecond you touch the starter button.

Cleaning Procedure

Disconnect the negative cable first, followed by the positive cable, to prevent accidental sparks. Use an old toothbrush dipped in a mixture of baking soda and warm water to scrub away all corrosion until the metal shines.

Faulty Starter Relay

The starter relay acts as a heavy-duty bridge carrying massive electrical current from the battery to the starter motor.

Single Clicking Sound

If you hear one loud, distinct “click” from inside the rear panels every time you press the button, your handlebar switch works fine. The sound means the relay is closing mechanically, but electrical current isn’t passing through its internal contacts.

Relay Testing

Set your multimeter to measure DC voltage and connect it to the output terminal of the relay leading to the starter. Press the starter button; if the meter reads 12V but the motor remains completely dead, the relay is faulty.

Bad Starter Motor

When the starter motor develops internal failure, it cannot convert electrical power into physical engine rotation.

Symptoms

The battery and relay might test perfectly, but the engine refuses to budge. You may hear a faint, dull thud from the engine case, or the starter motor housing itself might become extremely hot to the touch.

Inspection Steps

Gently tap the body of the starter motor with a wooden screwdriver handle while pressing the starter button. If the engine suddenly cranks, the internal carbon brushes are worn down and the motor requires immediate replacement.

Faulty Spark Plug

Without a strong, bright spark, the compressed air-fuel mixture inside the cylinder cannot ignite.

Carbon Build-Up

Frequent short trips prevent the engine from reaching full operating temperature, leaving black soot on the plug tip. This heavy carbon layer path redirects electricity away from the gap, preventing ignition.

Worn Electrode

Over thousands of miles, the sharp edges of the central metal electrode become rounded and worn down. This increase in the physical gap distance makes it incredibly difficult for low voltage to jump across.

Replacement Interval

Suzuki recommends inspecting the spark plug every 4,000 kilometers and replacing it entirely every 8,000 kilometers. Keeping a fresh plug installed ensures reliable cold-start performance during chilly winter mornings.

Fuel Pump Failure

The electronic fuel injection system requires constant high fuel pressure to atomize petrol properly.

No Priming Sound

When you turn your ignition key to the “on” position, you should hear a distinctive two-second humming sound from the tank. If total silence follows the key turn, your fuel pump isn’t waking up.

Fuel Pressure Problems

An aging or partially clogged fuel pump might spin but fail to generate sufficient operational line pressure. The engine will crank over continuously but won’t start because the fuel spray resembles a drip rather than a fine mist.

Dirty Fuel Injector

The injector uses microscopic holes to spray fuel, making it highly susceptible to varnish and dirt blocks.

Symptoms

The scooter may start after extensive cranking but suffer from an incredibly rough, erratic idle. It might bog down heavily when you twist the throttle, misfire frequently, or cut out completely at intersections.

Cleaning Options

For mild deposits, adding a high-quality fuel system cleaner directly into your petrol tank can clear the blockage. Severe clogs require removing the injector component entirely for professional cleaning using an ultrasonic bath machine.

Side-Stand Switch Failure

This safety switch automatically cuts off the ignition circuit if the side-stand is extended.

Why It Prevents Starting

The ECU reads the position of this switch before allowing the ignition coil to fire up. If the switch remains stuck in the open position, the computer assumes the stand is down to prevent accidental takeoffs.

Testing the Switch

Locate the small spring-loaded pin mechanism near the pivot point of your side-stand assembly. Spray it heavily with electrical contact cleaner while pushing the pin in and out manually to ensure it moves smoothly.

Brake Lever Switch Failure

As a vital safety measure, the self-start system remains completely locked out until you apply the brakes.

Self-Start Safety Function

The starter button circuit routes its power directly through the small switches mounted inside your handlebar brake levers. If the rear brake light does not illuminate when you pull the lever, the starter button will not receive power.

Faulty Engine Kill Switch

The red toggle switch on your right handlebar provides a quick way to stop the engine in emergencies.

Symptoms

The dashboard lights up beautifully, but pressing the starter button produces absolutely zero sound or movement. The system acts exactly as if the battery were completely removed from the frame.

Inspection

Flip the switch back and forth aggressively a dozen times to clear minor internal surface oxidation. If the issue continues, remove the handlebar housing switch assembly and inspect the rear wiring connections for loose solder joints.

ECU or Sensor Problems

The Electronic Control Unit relies on real-time data from various sensors to manage engine ignition.

Crankshaft Position Sensor

This sensor tracks the exact rotation speed and physical position of your engine piston assembly. If it fails, the ECU cannot determine the correct timing to fire the spark plug, resulting in a permanent no-start condition.

Engine Temperature Sensor

The computer reads engine temperature to adjust the fuel mixture thickness for cold starts. A faulty sensor might trick the computer into thinking the engine is warm, leading to an overly lean mixture that stalls out.

Throttle Position Sensor (TPS)

The TPS reports the exact opening angle of your butterfly valve to the fuel management computer. If the sensor sends an incorrect or erratic reading, the ECU may flood the combustion chamber with excess fuel.

Blown Fuse

Fuses protect your delicate electrical wiring harness from catastrophic damage caused by short circuits.

Main Fuse

The primary 15-amp main fuse sits directly adjacent to your battery compartment beneath the floorboard. If this fuse blows completely apart, your entire scooter will lose electrical power, leaving the dashboard dark.

FI System Fuse

A separate 10-amp fuse protects the delicate fuel injection sensors and fuel pump circuitry. If this specific fuse fails, your dashboard will light up normally, but the fuel pump will remain completely silent.

Suzuki Access 125 BS6 Self-Start Not Working

If pressing the starter button does nothing, the fault is usually electrical rather than mechanical.

I have spent years diagnosing scooter electrical networks in commercial workshops. When the self-start system fails to respond entirely, the issue almost always boils down to a breakdown in the low-current safety control loop.

Weak Battery

A battery can possess just enough residual energy to illuminate the digital dash but lack the massive amperage needed to spin the starter motor. Always test the voltage while actively holding down the starter button to observe the real-time load capacity drop.

Brake Switch Failure

If pulling the left brake lever fails to activate your rear brake light bulb, the self-start circuit remains physically broken. Try pulling the opposite brake lever firmly; if the scooter starts, your primary switch needs immediate replacement.

Starter Relay Problem

When the internal copper coil inside your relay fails, it cannot generate the magnetic pull required to bridge the main power cables. You can verify this by safely jumping the two large terminal posts with an insulated screwdriver tip.

Faulty Starter Button

Over months of daily outdoor parking, rainwater and dust enter the handlebar switch housing. This debris builds an insulating layer over the copper contact pads, preventing electrical current from passing through when pressed.

Suzuki Access 125 BS6 Starts Then Stops

An engine that starts but stalls within seconds usually points toward fuel delivery, sensor communication, or idle control issues.

Fuel Pump Failure

The fuel pump might run initially to build priming pressure but shut down immediately once the engine fires up. This problem typically stems from a faulty internal pump motor winding that overheats the moment it runs continuously.

Injector Blockage

Microscopic debris passing through a torn fuel filter can lodge directly inside the tiny discharge nozzle of your injector. The engine starts on residual fuel vapor but starves instantly when you attempt to open the throttle valve.

Dirty Throttle Body

Over time, sticky oil vapors from the engine crankcase breather line settle inside the main throttle body bore. This black sludge blocks the tiny air passages required to sustain a smooth engine idle speed when warm.

ECU Sensor Fault

If a critical component like the engine temperature sensor sends wildly incorrect data, the ECU miscalculates the required fuel volume. The computer trims back the fuel delivery too early, causing the cold engine to stall out.

Suzuki Access 125 BS6 Won’t Start After Sitting

Scooters left unused for weeks often develop battery and fuel system problems. Fortunately, many are easy to diagnose.

Battery Self-Discharge

Lead-acid batteries naturally lose a small percentage of their total electrical charge every single day they sit idle. After three weeks of storage, the charge often drops below the minimum threshold required to boot up the ECU.

Old Fuel

Modern unleaded petrol begins to degrade and chemically break down within roughly thirty days of sitting idle inside a fuel tank. The volatile light compounds evaporate completely, leaving behind a stale, gummy fluid that resists clean ignition.

Injector Deposits

As old fuel evaporates out of the open injector tip, it leaves behind a stubborn varnish coating. This sticky substance glues the internal needle valve shut, preventing it from pulsing open when receiving electrical signals.

Moisture in Electrical Connectors

Vehicles parked in unventilated spaces suffer from ambient humidity condensation forming along their wiring looms. This water layer rusts delicate ground pins, interrupting the low-voltage communication paths required for starting.

Rodent Damage

The soy-based insulation coating used on modern wiring harnesses acts as an incredibly attractive food source for mice. A scooter left sitting in a dark garage often suffers from chewed wires near the main ECU connector block.

Suzuki Access 125 BS6 Won’t Start After Rain

Heavy rain doesn’t always damage components directly, but moisture can interrupt electrical connections or affect safety switches.

Wet Spark Plug Cap

The thick rubber insulation boot covering your spark plug can develop microscopic cracks as it ages. During heavy downpours, water enters these cracks, creating an easy electrical path for the spark to jump directly to the metal engine frame.

Moisture Around Ignition Coil

The ignition coil sits low inside the scooter body frame where rear tire spray hits it constantly. If the outer plastic casing loses its seal, high-voltage electricity leaks into the damp air instead of reaching the plug.

Side-Stand Switch Contamination

Road grit mixed with rainwater forms a thick, conductive mud slurry that coats the exposed side-stand safety switch plunger. This wet paste can short-circuit the internal connection pins, tricking the ECU into declaring a stand-down state.

Water in Electrical Connectors

High-pressure water entry from washing or heavy rain storms can bypass the factory rubber weather seals on your wiring harness. This trapped water bridges adjacent pins inside multi-plugs, creating confusing short circuits across sensor lines.

Step-by-Step Suzuki Access 125 BS6 Troubleshooting Process

Whenever I diagnose a no-start scooter, I begin with the simplest checks. One Saturday morning in Denver, a rider thought the fuel injector had failed. The real issue was a loose battery cable hidden beneath the rubber cover. Five minutes later, the scooter was back on the road.

Step 1 – Check Battery Voltage

Connect your digital multimeter across the battery terminals under your floorboard to ensure you have a healthy baseline reading. If the screen displays a value below 12.4V, attach a battery charger before proceeding with any further diagnostic steps.

Step 2 – Inspect Battery Connections

Physically grab the thick red and black battery cables and wiggle them firmly with your fingers to ensure they are rock-solid. Use an eight-millimeter wrench to tighten the terminal bolts completely, removing any hidden electrical resistance.

Step 3 – Check Main Fuse

Pop open the small plastic fuse holder located directly adjacent to the battery box assembly. Pull the translucent green 15-amp fuse out and hold it up to a bright light to check if the internal metal bridge wire is broken.

Step 4 – Listen for Fuel Pump Priming

Turn the main ignition key to the “on” position while keeping your ear positioned close to the under-seat storage area. Listen carefully for a distinct, high-pitched two-second hum indicating the electric fuel pump is pressurizing the line.

Step 5 – Inspect the Spark Plug

Remove the right-side engine inspection cover panel to access the spark plug buried deep inside the cylinder head. Use a dedicated spark plug socket to remove it, checking the tip for heavy black carbon deposits or wet fuel coating.

Step 6 – Test the Starter Relay

Locate the starter relay module and check for incoming power when you firmly depress the handlebar starter button. If power arrives at the activation side but fails to cross over to the heavy starter motor wire, replace the relay unit.

Step 7 – Check Safety Switches

Verify both the side-stand switch plunger and your front brake handlebar switches click cleanly when operated mechanically. Spray both assemblies generously with electrical contact cleaner to flush out any insulating road grime or trapped moisture.

Step 8 – Scan FI Error Codes

If all mechanical components test fine but the amber FI light stays illuminated, attach an OBD diagnostic scanner tool. Read the specific error codes stored inside the ECU memory chip to pinpoint the exact failing electronic sensor.

Suzuki Access 125 BS6 No-Start Diagnosis Table

Professional mechanics match symptoms with likely causes before replacing parts. This simple guide helps you narrow the problem quickly.

Evaluating your scooter’s precise combination of sounds and instrument panel behaviors prevents you from wasting money on parts you do not need. Use this diagnostic table to match your specific symptoms with the most logical physical culprit.

Battery Voltage Reference Table

Checking battery voltage first has become my habit because it immediately rules out the most common starting problem.

A digital multimeter provides an absolute window into the chemical health of your sealed lead-acid battery cell. Understanding these exact state-of-charge values tells you precisely whether to grab a battery charger or continue mechanical troubleshooting.

FI Warning Light Guide

The Fuel Injection warning light is one of the best clues on a BS6 scooter. Understanding what it means can save hours of guesswork.

The onboard diagnostic system continually evaluates every sensor connection while you operate your vehicle. When the central ECU spots an electrical value outside normal limits, it flags the problem using this dash light indicator.

Essential Tools for Diagnosing a Suzuki Access 125 BS6

You don’t need a dealership workshop to solve many no-start problems. These affordable tools are enough for most home mechanics.

Basic Diagnostic Tools

• Digital multimeter: Measures exact circuit voltages, wire continuity, and component resistance values.
• Battery charger: A smart maintenance charger to safely replenish drained electrical cells at home.
• Spark plug socket: Special deep-reach wrench tool needed to remove the plug without cracking porcelain.
• Screwdriver set: Standard Phillips and flat-head drivers to remove decorative plastic body bodywork panels.
• Socket wrench: A small metric socket kit for removing starter motors and structural battery brackets.
• Fuse puller: Small plastic tweezer tool to extract tiny mini-fuses without crushing their plastic housings.
• Contact cleaner: Fast-evaporating chemical spray engineered to dissolve grease and moisture from wire plugs.
• Flashlight: A bright LED light source to illuminate dark, recessed corners of the engine frame.
• OBD scanner compatible with Suzuki FI systems: Electronic tool used to read fault codes directly from the ECU.

Common Mistakes Owners Make

We’ve all overlooked something obvious at least once. A careful, step-by-step approach almost always beats replacing random parts.

Ignoring Battery Voltage

Many riders assume their battery is perfect simply because the digital dashboard display illuminates brightly. They spend hours dismantling complex engine components when a basic voltage check would reveal a weak power cell.

Forgetting to Hold the Brake Lever

Modern safety systems require a solid mechanical brake application to send power down to the starter button. Failing to pull the brake lever firmly remains one of the most common reasons for false breakdowns.

Replacing Parts Without Checking FI Codes

Buying expensive new fuel injectors or fuel pumps based on pure guesswork wastes significant money. Always read the factory onboard diagnostic fault codes first to identify the actual failing component.

Overlooking the Side-Stand Switch

A side-stand safety switch caked in road mud will trick your scooter into a permanent ignition lockout. Clean and inspect this simple spring-loaded mechanism before assuming your main engine wiring harness has failed.

Ignoring Corroded Battery Terminals

Tight terminal bolts can still suffer from zero electrical flow if a layer of green oxidation coats the joints. Never skip cleaning the inner faces of your battery clamps during your routine troubleshooting process.

Continuing to Crank a Flooded Engine

Holding down the starter button continuously for minutes straight will quickly overheat the starter motor winding. This habit drains your battery charge and washes away cylinder wall lubrication with raw unburnt petrol.

Expert Advice From a U.S. Powersports Technician

Experienced technicians follow a diagnostic routine instead of guessing. That approach saves time and avoids replacing expensive components unnecessarily.

“Most fuel-injected scooters that won’t start have simple electrical issues rather than failed ECUs. I always begin with battery voltage, safety switches, and fuel pump operation before recommending replacement parts.” — Chris Walker, ASE Certified Powersports Technician, Florida

Why Professionals Always Start With Electrical Checks

Modern fuel injection control units require a rock-solid, stable electrical foundation to operate their internal microprocessors. If system voltage drops below a specific engineering threshold during cranking, the digital fuel injection system shuts down entirely. Beginning with basic electrical validation saves hours of troubleshooting time.

Real Workshop Example

• Wednesday morning in Orlando: A customer towed in a premium scooter that refused to start up.
• Customer suspected a failed fuel injector: They requested a complete replacement injection assembly.
• Battery measured 12.3V: The open-circuit voltage appeared mostly normal to the untrained eye.
• Voltage dropped below 9.5V while cranking: Under heavy starter load, the weak cells collapsed instantly.
• Battery replacement restored normal starting: A fresh battery resolved the issue with zero tool teardown.

How to Prevent Suzuki Access 125 BS6 Starting Problems

Regular maintenance takes only a few minutes but can prevent unexpected breakdowns on busy mornings.

Check Battery Voltage Every Few Months

Regular electrical health checks allow you to spot a failing battery cell long before it leaves you stranded. Catching a declining charge early means you can recharge the unit before it develops permanent sulfur crystallization damage.

Clean Battery Terminals

Apply a thin layer of pure petroleum jelly or specialized terminal protector spray to your clean metal clamps. This protective coating blocks damp atmospheric oxygen from reacting with the lead, stopping green crust formation entirely.

Ride the Scooter Regularly

Short trips under two miles never give your internal alternator charging system enough time to replenish starting energy. Take your scooter on a longer twenty-minute ride once a week to keep the battery fully charged.

Use Fresh Fuel

Avoid letting petrol sit stale inside your storage tank for months at a time without any movement. Fresh fuel contains the correct balance of volatile chemical elements needed for rapid, clean ignition every single time.

Replace the Spark Plug on Schedule

A fresh spark plug profile reduces the total electrical workload placed on your ignition coil system. Keeping your plug replaced at factory intervals ensures clean combustion and reliable cold-weather starting performance.

Keep Safety Switches Clean

Blast your handlebar controls and side-stand switch mechanisms with a dedicated water-displacing lubricant during your regular washes. Keeping these areas free of grit ensures the internal safety pins slide smoothly.

Protect Electrical Connectors During Rainy Seasons

Park your machine under a high-quality waterproof cover if you must store it outdoors during monsoon weather. Keeping heavy rain off the main electrical switchgear assemblies prevents moisture from seeping into sensitive connection pins.

When You Should Visit a Suzuki Service Center

Some faults require factory diagnostic tools and software. If the basic checks don’t solve the issue, professional diagnosis is the safest option.

ECU Communication Errors

If your diagnostic scanner tool completely refuses to link up with the onboard computer, the problem is serious. Internal processor damage or deep grounding faults inside the wiring harness require advanced factory diagnostic equipment to locate.

Persistent FI Warning Light

When the amber malfunction light stays illuminated despite replacing flagged sensors, specialized troubleshooting becomes necessary. Factory mechanics use real-time data logging equipment to spot intermittent wiring breaks that standard tools miss.

Fuel Injector Failure

Replacing a physically defective fuel injector component requires handling delicate high-pressure fuel line seals safely. A professional workshop possesses the correct pressure gauges to verify repair success without risking dangerous fuel leaks.

Wiring Harness Damage

Tracking down a hidden short circuit inside a wrapped bundle of fifty individual wires is incredibly difficult. Dealership technicians use specialized factory wiring schematics to locate broken lines without stripping the entire vehicle down.

Repeated No-Start Problems

If your scooter regularly drains brand-new batteries within a couple of days, your charging system is failing. Identifying a bad stator coil or malfunctioning voltage regulator requires precise electrical loading gear to pinpoint safely.

Suzuki Access 125 BS6 vs Other Suzuki Scooters With Starting Problems

Many Suzuki scooters use similar electrical systems, but each model has a few unique troubleshooting points.

Suzuki Access 125 vs Suzuki Burgman Street 125

The Burgman Street utilizes the exact same reliable 124cc powerplant engine base as the classic Access model line. However, because the Burgman carries a larger front body fairing panel, its main wiring harness is significantly longer, increasing the statistical chances of hidden moisture trapping after heavy rain storms.

Access 125 BS6 vs Suzuki Avenis 125

The sporty Avenis 125 targets younger riders and features an advanced digital instrument panel equipped with Bluetooth connectivity features. This extra digital module places a slightly higher continuous parasitic background drain on the battery cell when parked, making it more vulnerable to starting failures after sitting idle.

Access 125 BS6 vs Suzuki Address 125

The Address 125 shares global fuel injection components but uses a distinct global chassis layout configuration. The routing of its main frame ground wire leaves it highly exposed to rear tire spray, leading to faster connection corrosion than what you typically see on the well-shielded Access 125 chassis.

Which Starting Problems Are Shared Across Suzuki Scooters?

All three modern models utilize the identical Suzuki Eco Performance fuel injection management system architecture. This commonality means they all suffer from the exact same sensitivity to low battery voltages, identical spark plug wear rates, and similar safety interlock switch configuration logic.

Frequently Asked Questions

Why is my Suzuki Access 125 BS6 not starting even though the battery seems okay?

Your battery might hold enough surface charge to power the lights but fail under a real starting load. Alternatively, a stuck side-stand safety switch or a blown 10-amp fuel injection system fuse can prevent starting entirely despite a perfect battery.

Why does my scooter only make a clicking sound when I press the starter?

A rapid machine-gun clicking sound indicates your battery is heavily discharged and cannot sustain the starter motor workload. A single loud click means your starter relay is working fine, but the starter motor itself has developed internal damage.

Can a faulty side-stand switch stop the engine from starting?

Yes, the side-stand safety switch connects directly to the central electronic control unit engine ignition circuit loop. If the internal contacts stick open, the computer completely cuts off power to your ignition system as a safety measure.

Why won’t my Suzuki Access 125 BS6 start after rain?

Rainwater commonly gets trapped inside worn rubber spark plug caps, causing the high-voltage spark to short-circuit to the frame. Water can also enter unsealed handlebar switch housings, temporarily shorting out your starter button or engine kill switch connections.

What does the FI warning light mean?

The Fuel Injection warning light indicates that the central ECU has detected an active electrical fault within its sensor network. This light alerts you that an electronic component, like a temp sensor or fuel pump circuit, has failed structural validation.

Can a weak battery still turn on the dashboard?

Yes, illuminating a digital dashboard requires less than two amperes of current from your electrical system. Spinning over an internal combustion engine requires over thirty amperes, which a degraded or weak battery cell cannot physically provide.

How long does a Suzuki Access 125 BS6 battery usually last?

Under typical daily riding conditions, a factory-sealed maintenance-free battery generally lasts between three and four years. Frequent short trips or leaving the scooter parked idle for weeks significantly reduces this operational lifespan.

How much does it cost to fix a Suzuki Access 125 BS6 that won’t start?

If the issue is a loose connection or dirty switch, the fix costs absolutely nothing but a few minutes of cleaning time. Replacing a completely dead battery or a failed starter relay typically runs between twenty and forty dollars for genuine factory parts.

Final Recommendation

When dealing with a suzuki access 125 bs6 not starting condition, always discipline yourself to check the easiest electrical paths first before condemning expensive components. Over my years of mechanical experience, I have seen far too many owners replace perfectly good fuel injectors and fuel pumps when the true root cause was simply a loose battery terminal bolt or a muddy side-stand safety plunger switch. Treat your scooter to a fresh spark plug every year, keep the battery terminals clean and greased, and always listen for that healthy fuel pump hum when you turn the key. Taking a methodical approach will save you time, protect your wallet, and keep your Access 125 running flawlessly for years.

Ehatasamul Alom

Co-Founder, Owner, and CEO at RoadHybridBike – admin@roadhybridbike.com – Web

Ehatasamul Alom is a dedicated road hybrid bikes expert. With over 15 years of experience, he helps people find the perfect ride. He began his journey as a bike mechanic. He learned the ins and outs of every bike.

Ehatasamul Alom holds a Master's degree in Mechanical Engineering from a Brown University (Providence US 02912), where he specialized in material science and bicycle kinematics. His master's thesis focused on optimizing frame geometry for road hybrid bikes to improve rider comfort and efficiency.

Ehatasamul has an extensive professional background. He spent 10 years (2010-2020) as a Senior Bike Designer at "Urban Cycles," a leading bicycle manufacturer. In this role, he led the development of several award-winning road hybrid bikes, which are known for their durability and performance. He later served (2020-2024) as the Head of Product Development at "Gear Up," a company specializing in high-end cycling components. There, he developed innovative parts and accessories specifically for road hybrid bikes.

Over the years, Ehatasamul has become an authority on Roadhybridbikes. He understands their design and function. His work focuses on making bikes easy to use. Ehatasamul believes everyone should enjoy cycling. He writes guides that are simple to read. His passion for road hybrid bikes is clear. His goal is to share his knowledge with everyone. He wants to see more people on two wheels. His advice is always practical and easy to follow.

• Ehatasamul Alom



  July 6, 2026

  KTM RC 200 Not Starting? Easy Fixes and Expert Solutions
• Ehatasamul Alom



  July 6, 2026

  KTM 50 Not Starting? Common Causes and Easy Quick Fixes
• Ehatasamul Alom



  July 4, 2026

  KTM Adventure 250 Not Starting? Easy Fixes That Work
• Ehatasamul Alom



  July 4, 2026

  KTM 250 TPI Not Starting? 5 Expert Tips to Get Fired Up
