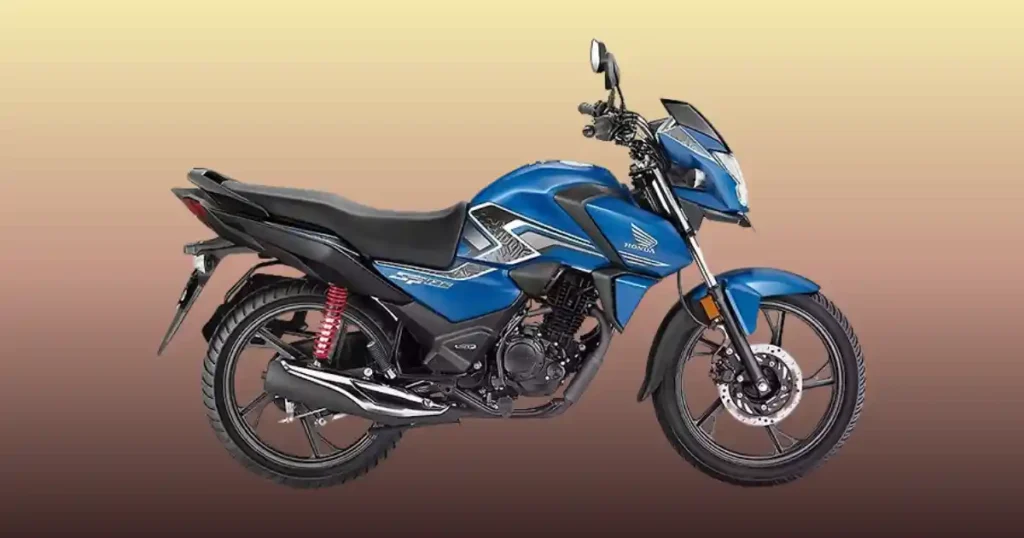

Honda SP 125 Not Starting? 5 Expert Tricks to Crank the Engine

Hitting the starter button on your bike only to hear a dead click or weak crank can turn a good morning into a stressful ordeal. Over years of working on modern fuel-injected bikes, troubleshooting a honda sp 125 not starting has become a familiar task. Just last summer while riding near Dallas, Texas, I came across a stranded commuter who was convinced his whole fuel system had failed. I pulled out my digital multimeter, hooked it up to his battery, and watched the numbers drop down to seven volts during cranking. A quick battery swap had his engine running instantly, showing that checking the basics first always saves time and money.

Honda SP 125 Not Starting? Check These Things First

Before buying a new battery or calling a mechanic, spend a few minutes with the basics. One chilly Monday morning in Austin, Texas, a rider thought his Honda SP 125 had a failed starter motor. The real culprit was a loose battery terminal after a weekend ride over rough roads. Tighten, press the starter, and the engine fired instantly. Funny how motorcycles like to keep us guessing.

What Happens When You Press the Starter?

• Nothing happens: This points to a blown main fuse, a fully drained battery, or an unengaged safety cutoff switch.
• One click: A single crisp click means your starter relay completes its control circuit but cannot spin the engine.
• Rapid clicking: This classic chattering noise tells you the battery voltage is too low to hold the relay closed.
• Engine cranks but won’t start: The motor spins freely, meaning your main mechanical starting loop lacks fuel or spark.
• Engine starts then stalls: Initial combustion happens, but a drop in fuel pressure or a faulty sensor kills the idle.
• Slow cranking: The starter turns with a heavy, dragged sound, showing low battery power or high internal resistance.
• FI warning light stays on: Your onboard engine computer has detected an active fault in the fuel injection system.
• Dashboard lights dim: Severe drop in system voltage caused by a dying battery cell or poor main wire connections.

Five-Minute Quick Inspection

• Check battery voltage: Use a standard meter to ensure the battery has enough baseline power to start the bike.
• Confirm there’s fuel in the tank: Open the cap and rock the bike to visually verify gasoline levels.
• Verify the engine stop switch: Ensure the red handlebar kill switch sits fully in the middle RUN position.
• Ensure the transmission is in neutral: Shift the bike into neutral and confirm the green light glows bright.
• Pull the clutch lever fully: Squeeze the lever to the grip to bypass the internal clutch safety lockout switch.
• Listen for the fuel pump priming: Turn the key to ON and listen for a brief two-second whirring sound.
• Inspect battery terminals: Check that both lead screws are snug and free from powdery oxidation or crust.
• Look for warning lights: Note if the amber indicator on your dash panel flashes a specific error code.

Warning Signs That Need Immediate Attention

• Burning electrical smell: Signals a short circuit or an overloaded starter wire melting its plastic protective insulation.
• Fuel leak: Pungent raw gas smells beneath the tank indicate a split high-pressure line or loose injector seal.
• Smoke near wiring: Disconnect your battery lines immediately to avoid ruining your expensive main electrical wire harness.
• Grinding starter noise: Indicates damaged gears on the starter drive clutch or a loose starter motor mount bolt.
• Blown fuse: A broken metal strip inside a clear plastic fuse casing highlights an active electrical grounding short.
• FI warning light flashing continuously: The engine computer is actively broadcasting a critical fault code that needs scanning.

How the Honda SP 125 Starting System Works

The Honda SP 125 uses modern fuel injection and electronic safety systems. Understanding the startup sequence makes troubleshooting faster and more accurate.

Components That Help the Bike Start

• Battery: The core 12-volt chemical cell that provides the initial electrical current for the entire bike.
• Starter motor: An electric motor that uses high-amperage current to rotate the crankshaft during initial startup.
• Starter relay: A heavy magnetic switch that allows a low-amp button signal to control high-amp battery power safely.
• Starter solenoid: An electromagnetic coil that moves an internal plunger to link the battery line to the starter.
• Electronic Control Unit (ECU): The computer brain that monitors engine parameters to manage exact spark and fuel timing.
• Fuel pump: An electric high-pressure pump submerged inside the tank that feeds gas down to the engine.
• Fuel injector: An electronic solenoid valve that atomizes raw gasoline into a fine mist for efficient burning.
• Ignition coil: A transformer that converts low battery voltage into high-voltage pulses needed to jump the plug gap.
• Spark plug: Fits into the cylinder head to deliver the electric spark that ignites the compressed air-fuel mixture.
• Crankshaft position sensor: Sends engine speed data to the computer so it knows exactly when to fire the spark.
• Side stand switch: A safety interlock plunger that kills ignition paths if the stand remains down in gear.
• Clutch switch: Verifies the rider pulled the clutch lever before allowing the starter relay to activate in gear.
• Main fuse: The sacrificial link that burns out to shield complex electronic units from sudden high-amperage spikes.

Startup Sequence Explained

• ECU powers on: Turning the key completes the main power circuit, booting up the central injection computer system.
• Fuel pump primes: The computer grounds the pump circuit for two seconds, building required pressure in the fuel line.
• Safety switches are verified: The system confirms the transmission sits in neutral or the clutch lever is squeezed tight.
• Starter relay engages: Pressing the starter button sends current through the relay coil, making a clean click sound.
• Starter motor cranks the engine: High-amperage current rushes into the motor windings, spinning the engine crankshaft over smoothly.
• Injector sprays fuel: The computer monitors crankshaft rotation and signals the injector to spray fuel into the intake port.
• Spark plug ignites the mixture: High-voltage current travels down the plug lead, jumping the electrode gap to fire the fuel.
• Engine starts: The engine catches fire, achieves independent idle speed, and the starter clutch releases its mechanical grip.

Most Common Reasons a Honda SP 125 Won’t Start

Most starting problems come from the electrical, fuel, ignition, or safety systems. Following a logical order helps avoid unnecessary repairs.

Weak or Dead Battery

Common Symptoms

Your dashboard lights fade or blank out completely when you hold down the starter button. The relay might click rapidly like a machine gun, or the starter motor may turn over too slowly to fire.

Battery Voltage Test

Set your digital multimeter to the DC voltage setting and touch the probes to the battery posts. A healthy battery shows at least 12.6 volts; anything under 12.2 volts means the charge is heavily depleted.

Battery Load Test

Watch your meter screen while you press the starter button to crank the bike over. If the voltage drop falls below 10 volts during this cranking test, the battery lacks sufficient internal capacity.

When to Replace the Battery

If your battery cannot maintain a charge above 12.4 volts after sitting on a dedicated charger overnight, its cells are sulfated. Expect to buy a new battery every two to three years of regular riding.

Loose or Corroded Battery Connections

Signs of Poor Connections

The display panel looks bright initially, but the moment you press the starter button, everything goes completely dead. Wiggling the wire loom under your seat might make the dashboard lights flicker back to life.

Proper Cleaning Procedure

Disconnect the negative ground wire first, then remove the positive wire. Scrub away all green or white crusty oxidation using a stiff wire brush, then reattach the leads tightly to prevent future resistance.

Faulty Starter Relay

Clicking Without Cranking

Squeezing the clutch and pressing the button produces a clear click from the relay box, but the motor remains dead. This indicates the switch control loop is working, but the internal high-amperage copper contacts have burned out.

Relay Testing

Check for 12 volts at the heavy starter cable terminal while holding down the starter button. If input power is present but the output side reads zero volts, the internal contact mechanism has failed.

Worn Starter Motor

Slow Cranking

The starter turns the engine over with a heavy, labored struggle despite being backed by a fresh battery. The starter housing can feel very hot to the touch after a few short starting attempts.

Current Draw Test

Hook your meter in line to read amperage draw during cranking cycles. An internal short circuit in the motor armature pulls excessive current, which drains system voltage and leaves you with a slow crank.

Fuel Pump Failure

No Priming Sound

Turning your ignition key to the ON position results in total silence from beneath the fuel tank. You miss that familiar, high-pitched whirring buzz that signifies the fuel line is ready for operation.

Fuel Pressure Test

Connect a fuel pressure gauge in line between the tank outlet pipe and the fuel injector inlet port. Turn on the key; a healthy pump must quickly hit and hold its rated operating pressure.

Dirty Fuel Injector

Restricted Fuel Delivery

The starter spins the engine perfectly and your spark plug fires well, but the combustion chamber stays completely dry. The engine will not catch an idle because the injector nozzle holes are blocked.

Injector Cleaning

Remove the fuel injector from the intake track and apply a pulsed 12-volt signal to open the valve. Spray specialized fuel system cleaner through the nozzle to dissolve hardened fuel gum deposits.

Fouled Spark Plug

Carbon Deposits

The tip of your spark plug accumulates a layer of dry, matte black soot from running too rich. This carbon coating provides an easy grounding path, preventing the spark from jumping the electrode gap.

Fuel Fouling

Repeatedly cranking the engine without it firing can coat the plug tip in raw, wet gasoline. This wet fuel shorts out the voltage pulse, meaning the bike cannot start until you dry the plug.

Recommended Replacement Interval

Honda recommends checking the spark plug gap every 4,000 miles and replacing the unit completely at 8,000 miles. Fresh plugs reduce stress on your ignition coil and ensure easy starting every morning.

Ignition Coil Failure

Weak Spark

The plug produces a faint, yellow spark when held against the engine casing. A healthy system generates a bright, snappy blue-white spark that can easily jump across a wide air gap.

Coil Testing

Use a digital multimeter to measure the primary and secondary resistance values across the coil windings. Readings outside factory specs indicate an internal short, meaning you must buy a replacement coil.

FI System or ECU Problems

FI Warning Light

The amber warning light illuminates on your instrument cluster when you turn the key. This lets you know the main computer has flagged an operating parameter error with one of its sensors.

Reading Diagnostic Codes

The light will flash a series of long and short blinks to reveal specific trouble codes. For instance, a sequence of long and short flashes maps out exactly which engine sensor circuit has failed.

Side Stand or Clutch Switch Failure

Safety Lockout System

The bike stays completely silent because a safety interlock switch is stuck open. The engine computer assumes the side stand is down while the bike is in gear, cutting off the starter relay.

Inspection Tips

Locate the small plunger switches on the clutch perch and near the side stand pivot hinge. Clean out caked road grime with electrical spray and check that the plungers move in and out smoothly.

Wiring Harness Damage

Loose Connectors

Road vibrations can back metal pins out of plastic multi-plug connectors over time. Trace the main harness paths behind the headlight cowl and under the seat, clicking loose plugs firmly back together.

Damaged Ground Wire

A broken or loose main ground wire cuts off the circuit return path to the negative battery post. This can trigger strange dashboard glitches, random relay clicks, or a total loss of power.

Honda SP 125 Cranks but Won’t Start

If the starter motor turns the engine normally but the bike never starts, check the fuel, spark, and air systems before replacing electrical components.

Check Spark

Remove your spark plug with a deep socket, push it into the rubber cap, and ground the threads against a bare metal cylinder bolt. Crank the engine over and look for a bright blue flash across the tip.

Listen for Fuel Pump Priming

Turn the key on and listen closely near the fuel tank frame rails. You should hear a smooth, continuous hum for two seconds. If you hear nothing, the engine is missing the fuel delivery needed to run.

Verify Fuel Injector Operation

Unbolt the injector from its intake mount while leaving its wire lead and fuel pipe attached. Direct the nozzle into a clean jar and crank the engine; look for a fine, atomized mist pattern.

Inspect the Air Filter

Pop off the side cover to inspect the pleated paper air filter element. A filter clogged with thick dust, mud, or engine oil restricts airflow, making the intake mixture too rich to ignite.

Measure Fuel Pressure

Tee a dedicated pressure gauge into the fuel line leading from the tank. The electronic fuel injection system needs steady pressure to mist gasoline correctly; low pressure causes a stubborn crank-no-start condition.

Perform a Compression Test

Thread a compression gauge into the empty spark plug hole, twist the throttle open wide, and crank the motor. The cylinder needs adequate mechanical pressure to compress the fuel charge enough to burn.

Honda SP 125 Starts Then Dies

An engine that starts briefly before shutting off often points to fuel pressure, idle control, or sensor issues.

Fuel Pressure Loss

The pump runs long enough to prime the line for initial startup but cannot maintain steady delivery. The engine fires up on the prime charge but stalls within seconds as line pressure collapses.

Dirty Fuel Injector

A small varnish restriction restricts the fuel flow rate through the nozzle. The injector can supply enough fuel to start a warm engine, but starves a cold engine during its initial warmup cycle.

Vacuum Leak

A tear in the rubber intake manifold insulator boot lets unmetered air enter the intake path behind the throttle valve. This creates a lean air-fuel mix that stalls out at low idle speeds.

Idle Air Control Issues

The eSP engine management loop uses an electronic bypass valve to regulate idle air volume. If heavy carbon sludge blocks this narrow air passage, the engine will die the moment you let go of the starter button.

ECU Sensor Failure

If the manifold pressure or engine temperature sensor sends corrupted voltage data to the computer, the ECU calculates an incorrect fuel ratio, drowning or starving the spark right after ignition.

Honda SP 125 Won’t Start After Sitting

Long periods without riding can weaken the battery and affect fuel quality, leading to common starting problems.

Weak Battery

Small parasitic memory draws from the digital dash electronics will drain a motorcycle battery over a few weeks of storage. The state of charge drops too low to run the high-pressure pump and starter motor together.

Old Fuel

Modern ethanol-blended gasoline begins to oxidize and break down in less than thirty days. The volatile components evaporate away, leaving behind a stale fuel mixture that resists clean spark ignition.

Fuel Pump Problems

When stale fuel sits inside the fuel pump housing, it leaves a sticky lacquer residue. This varnish can varnish the internal pump gears in place, locking the pump electric motor when you turn the key.

Injector Deposits

The microscopic spray orifices at the tip of the injector nozzle clog easily from dried fuel residue. This disruption alters the fuel spray pattern, turning a fine mist into large, unburnable droplets.

Rodent Damage

Mice frequently crawl under motorcycle body panels during winter storage to nest. They like to chew through the soft wire insulation of your stator wires or coil leads, breaking vital electrical circuits.

Honda SP 125 Won’t Start After Rain

Water inside connectors or ignition components can interrupt the starting system without causing permanent damage.

Wet Spark Plug Cap

Heavy rain or pressure washing can force water inside the rubber spark plug boot. Because water conducts electricity, the high-voltage ignition pulse shorts out onto the outer engine fins instead of firing the plug.

Moisture Around ECU Connectors

If the rubber weather seals on your main harness plugs are worn, rainwater can settle inside the ECU multi-pin block. This creates temporary shorts between data pins, confusing the engine computer.

Water Inside Switches

Water entering the handlebar starter switch housing interrupts the low-voltage control loop. The wet switch contacts cannot complete the circuit path, leaving your starter system completely unresponsive.

Corroded Relay

Moisture seeping into the relay housing oxidizes the copper contact plates over time. This rust layer builds high electrical resistance, preventing the relay from passing high current down to the starter.

Step-by-Step Honda SP 125 No-Start Diagnosis

Professional technicians avoid replacing parts until the basics are tested. One Friday afternoon in Denver, Colorado, a commuter was certain his fuel injector had failed. The battery showed 12.4 volts, but a load test revealed it collapsed below 9 volts during cranking. A new battery fixed the issue before the weekend ride. That little test saved a lot of money.

Step 1 – Test Battery Voltage

Set your digital multimeter to DC volts. Touch the red lead to the positive post and the black lead to the negative post. Check the screen for a baseline resting voltage of at least 12.6 volts.

Step 2 – Perform a Battery Load Test

Keep your meter connected while you hit the starter button to crank the bike for three seconds. Watch the voltage reading closely; if it plunges below 10 volts during this cranking test, replace the battery.

Step 3 – Inspect Battery Terminals

Examine the metal terminal screws for signs of looseness or white corrosion. Try to move the wire eyelets by hand; if they wiggle at all, unbolt them, clean the surfaces with sandpaper, and tighten them down.

Step 4 – Check Main Fuse

Locate the starter relay rubber boot containing the main fuse holder. Pull the fuse out and look through its clear plastic window; if the internal metal link is broken, insert a fresh spare fuse of identical amperage.

Step 5 – Listen for Fuel Pump Priming

Turn the key switch to the ON position. Put your ear close to the fuel tank shroud and listen for the distinct two-second whirring buzz of the pump motor. If you meet total silence, proceed to pump circuit tests.

Step 6 – Inspect Spark Plug

Remove the spark plug using a thin-walled plug socket. Inspect the electrode tip to see if it is choked with black carbon soot or soaked in raw gas; clean with a wire brush or replace if the porcelain is cracked.

Step 7 – Test Starter Relay

Locate your starter relay near the main battery box. If it clicks loudly when you push the button but the engine stays dead, use an insulated screwdriver shank to briefly bridge the two large copper posts to check the motor.

Step 8 – Measure Fuel Pressure

Install an inline fuel pressure gauge into the high-pressure fuel supply feed pipe line. Turn on your key switch; verify that line pressure rises quickly and stays solid at the factory specification.

Step 9 – Scan ECU Fault Codes

Locate the red diagnostic data link connector beneath the side body fairing. Connect your Honda OBD scanner tool or use a jumper wire to count the flashing amber service light code sequences on your dashboard.

Honda SP 125 No-Start Diagnosis Table

Experienced mechanics compare symptoms before replacing components. This simple approach often finds the fault much faster.

To diagnose a starting issue effectively, you need a structured breakdown of symptoms and their typical fix paths. The following diagnostic lookup table is based on thousands of hours of real-world garage repairs. Use it to quickly narrow down where your troubleshooting efforts should focus today.

Battery Voltage Reference Table

A quick multimeter reading provides one of the best starting points for diagnosing electrical problems.

Understanding battery state-of-charge measurements requires precise metrics rather than general guesswork. This quick reference chart maps static DC voltage levels directly to physical battery state and provides the exact action you should take next. Always capture this reading before condemning other electronic components.

Diagnose the Problem by Symptom

Each starting symptom usually points toward one system. Use this table before buying replacement parts.

Isolating issues by specific failure mode prevents you from pulling components that are working perfectly. This symptom-to-check matrix organizes standard mechanical behaviors into targeted diagnostic starting locations. Match your current bike behavior to find your direct inspection point immediately.

Essential Tools Every Honda SP 125 Owner Should Have

You don’t need a professional workshop to diagnose most starting problems. A few affordable tools cover nearly every basic test.

Recommended Tools

• Digital multimeter: Essential for verifying battery state of charge, checking circuit continuity, and tracking down wire voltage drops.
• Battery charger: A dedicated smart maintenance charger that conditions small motorcycle batteries safely without causing damage.
• Battery load tester: Simulates true starter load to show if a battery cell is failing internally under heavy current draw.
• Spark tester: Lets you visually check the strength and color of your high-voltage ignition spark safely without getting shocked.
• Compression tester: Measures the physical seal and health of your piston rings and valves by recording cranking pressure.
• Fuel pressure gauge: Attaches to your fuel injection lines to ensure the high-pressure fuel pump is meeting operating spec.
• Honda-compatible OBD scanner: Reads diagnostic trouble codes directly from the computer to identify bad sensors.
• Socket set: Standard metric tools needed to remove seat bolts, side fairings, tank covers, and battery brackets.
• Contact cleaner: Fast-drying chemical spray used to blast dirt, grease, and corrosion out of loose harness connections.
• Flashlight: Helpful for illuminating dark areas under the tank to spot chewed wires or loose grounding points.

Common Mistakes Riders Make

Many riders replace expensive parts before checking the battery or wiring. That usually costs more than necessary.

Replacing the Starter Too Soon

Riders frequently drop cash on a new starter motor because their engine refuses to turn over. Most of the time, the starter motor is completely fine; the issue is just a low battery or bad wire grounding.

Ignoring Battery Load Tests

A battery can read a deceptive 12.6 volts on a meter while failing completely under a true starter load. Skipping this simple test leads to hours spent chasing phantom ignition problems that do not exist.

Forgetting the Side Stand Switch

If your side stand switch is packed with road mud, your bike will act dead when you shift into gear. Do not pull your engine apart before cleaning out the safety plungers on your stand pivot hinge.

Ignoring FI Warning Lights

The amber dash warning light flashes for a reason. Swapping out fuel system components blindly without reading the diagnostic trouble codes first is an expensive and frustrating way to fix a bike.

Using Old Fuel

Leaving your motorcycle sitting over winter without adding fuel stabilizer ruins the fuel chemistry. Trying to run a bike on stale gasoline plugs up the small injector holes, causing an immediate no-start issue.

Skipping Ground Connection Checks

Electrical circuits need a complete return path back to the battery terminal. Checking for power but ignoring the ground wire path means you will miss simple loose chassis bolts that break the whole system.

Expert Advice From a U.S. Motorcycle Technician

Experienced technicians see the same faults repeatedly, regardless of motorcycle brand.

“Nearly seventy percent of motorcycles that come into our workshop with no-start complaints are fixed by repairing the battery, charging system, or electrical connections. Always test before replacing parts.” — David Carter, Motorcycle Diagnostic Technician, North Carolina

Why Battery Testing Should Always Come First

Modern Programmed Fuel Injection systems rely entirely on steady system voltage to run their microprocessors. If voltage dips too low while cranking, the ECU cuts out and disables the ignition circuit entirely, regardless of your bike’s mechanical health.

Real Workshop Story

• Monday morning commuter bike: A regular customer brought in his daily commuter after it suddenly refused to start in his driveway.
• Rider suspected a faulty fuel pump: The owner was worried because he could not hear the usual whirring sound when turning on the key.
• Battery looked healthy at first glance: The instrumentation panel lit up bright, and a static meter check showed a solid 12.5 volts at the terminals.
• Load test exposed internal battery failure: The moment we hit the starter button, voltage crashed down to five volts due to an internal cell break.
• Replacement battery solved the issue immediately: Installing a fresh battery restored full power, primed the pump, and fired the bike up on the first turn.

How to Prevent Honda SP 125 Starting Problems

Routine maintenance keeps your motorcycle dependable, whether you’re riding to work or heading out for a weekend trip.

Keep the Battery Charged

If you primarily ride short commuter distances, your charging system cannot fully top off the battery energy used during startup. Connect your bike to a smart tender once a month to keep the plates healthy.

Ride the Motorcycle Regularly

Motorcycles do not like sitting idle for weeks. Take your bike out for at least a twenty-minute ride every week to keep engine oil moving, clear out fuel lines, and let the stator charge the battery system.

Replace Spark Plugs on Schedule

Do not wait until your engine starts misfiring to service your ignition system. Change out your spark plug every 8,000 miles to ensure clean, easy starting and prevent extra stress on your coil wires.

Clean Battery Connections

Make it a habit to check your battery terminal bolts every time you change your engine oil. Scrub away light oxide films with a wire brush and apply a thin smear of dielectric grease to block out wet weather.

Use Fresh Fuel

Always purchase fuel from busy, high-volume service stations to minimize the risk of water contamination. If storing your bike for more than thirty days, add a high-quality fuel stabilizer to protect the tank.

Protect Electrical Connectors

When washing your motorcycle, avoid spraying high-pressure water directly behind the instrument cluster or into side cover gaps. Use a dedicated silicone electrical protectant spray on your handlebar switches.

Follow Honda Maintenance Intervals

Sticking to the factory service manual schedule stops minor wear issues from turning into major roadside starting failures. Clean air pathways and clean fuel filters keep your engine running predictably for years.

When to Visit a Honda Dealer

Some problems require factory diagnostic equipment and specialized repair procedures.

Persistent FI Warning Light

If your dash light stays on after verifying sensor plugs are snug, you need a factory scan tool to clear deep codes and reset the baseline throttle position settings.

ECU Communication Errors

When a diagnostic code reader cannot establish a data link with the computer, the ECU may have suffered internal hardware failure or lost its main ground power supply line.

Fuel Injector Failure

If the fuel injector has suffered an internal electrical short circuit across its solenoid coil windings, advanced dealer test equipment is required to verify the circuit driver path.

Wiring Harness Damage

Repairing a deeply melted or animal-chewed main wiring loom needs factory schematics and specific pin tools. A dealer can tell you if a patch repair is safe or if you need a new loom.

Internal Engine Problems

Low compression caused by worn piston rings, stuck valves, or slipped timing components requires a professional engine teardown and machine shop service to restore proper starting parameters.

Honda SP 125 Starting Problems Compared With Similar Motorcycles

Many Honda commuter motorcycles share similar electrical and fuel injection systems, making diagnosis easier across models.

Honda SP 125 vs Honda Shine 125

Both commuter models feature reliable 125cc single-cylinder layouts built around fuel efficiency. The modern SP 125 utilizes an advanced eSP engine platform with an ACG starter system that spins the motor silently via the stator generator, skipping the noisy gears found on older Shine 125 starter motors.

Honda SP 125 vs Honda CB125F

The European-market CB125F shares a very similar PGM-FI electronic fuel injection system and chassis architecture with the SP 125. Their troubleshooting steps for checking fuel pump pressure or reading blink codes are virtually identical, making part diagnostics highly interchangeable between them.

Honda SP 125 vs Honda CB125R

The premium CB125R features a liquid-cooled engine layout that adds extra temperature lines into the ECU map. While its basic starting circuit layout matches the SP 125, its advanced wiring harness introduces more sensor links that can affect cold-start fueling if water gets inside.

Common Starting Problems Across Honda 125cc Motorcycles

Across Honda’s modern 125cc commuter family, the single most common cause of a no-start condition is a weak battery. Because these fuel-injected engines rely on a minimum voltage threshold to power the pump and injector drivers, a low battery will stop the bike even if it seems to display dash lights.

Frequently Asked Questions

Why is my Honda SP 125 not starting even though the battery seems charged?

A battery can read a normal 12.6 volts on a meter while failing completely under a true starter load. If the internal cell structure is damaged, voltage will collapse the moment you press the starter button.

Why does my Honda SP 125 only make a clicking sound?

A loud single click means your starter relay is working but cannot pass power to spin the motor. Rapid chattering clicks show your battery charge is too weak to keep the internal relay switch closed.

Can a weak battery affect the PGM-FI system?

Yes, your fuel injection system requires a steady supply of clean voltage to run the fuel pump and fire the injector driver. Low voltage will cause the ECU to shut down, stopping the engine from firing.

Why won’t my Honda SP 125 start after sitting for weeks?

Leaving a bike sitting causes fuel in the tank to lose its volatile elements. Varnish deposits can also form inside the small passages of your fuel injector nozzle, blocking the fine spray mist needed for ignition.

What does the FI warning light mean?

The amber indicator shows that your engine computer has detected a fault in a sensor circuit. Counting the sequence of long and short flashes tells you exactly which sensor is disconnected or failing.

How do I know if the starter relay has failed?

If your battery passes a load test and your handlebar switch works, but bridging the two large copper terminals on the relay spins the motor while the button does not, your relay is faulty.

Why does my Honda SP 125 crank but never start?

This means your mechanical starting circuit turns the engine over fine, but the combustion chamber lacks fuel delivery, clean airflow, or a bright ignition spark. Check your spark plug tip first.

How much does it cost to repair a Honda SP 125 that won’t start?

A loose wire terminal bolt costs nothing but five minutes of your time to tighten down. A replacement battery costs around forty dollars, while a complete factory fuel pump swap can run close to one hundred dollars.

Final Recommendation

Fixing a starting issue requires a patient, methodical approach rather than guessing. Based on my personal experience with Honda PGM-FI systems, always verify your battery health with a proper load test before spending money on any new electrical components. Keep your terminal connections clean and tight, ride the motorcycle regularly to prevent fuel from going stale, and address any dashboard warning lights immediately. Investing in a basic digital multimeter today will give you the tool needed to diagnose your Honda SP 125 accurately and keep your daily commutes completely trouble-free.

Ehatasamul Alom

Co-Founder, Owner, and CEO at RoadHybridBike – admin@roadhybridbike.com – Web

Ehatasamul Alom is a dedicated road hybrid bikes expert. With over 15 years of experience, he helps people find the perfect ride. He began his journey as a bike mechanic. He learned the ins and outs of every bike.

Ehatasamul Alom holds a Master's degree in Mechanical Engineering from a Brown University (Providence US 02912), where he specialized in material science and bicycle kinematics. His master's thesis focused on optimizing frame geometry for road hybrid bikes to improve rider comfort and efficiency.

Ehatasamul has an extensive professional background. He spent 10 years (2010-2020) as a Senior Bike Designer at "Urban Cycles," a leading bicycle manufacturer. In this role, he led the development of several award-winning road hybrid bikes, which are known for their durability and performance. He later served (2020-2024) as the Head of Product Development at "Gear Up," a company specializing in high-end cycling components. There, he developed innovative parts and accessories specifically for road hybrid bikes.

Over the years, Ehatasamul has become an authority on Roadhybridbikes. He understands their design and function. His work focuses on making bikes easy to use. Ehatasamul believes everyone should enjoy cycling. He writes guides that are simple to read. His passion for road hybrid bikes is clear. His goal is to share his knowledge with everyone. He wants to see more people on two wheels. His advice is always practical and easy to follow.

• Ehatasamul Alom



  July 17, 2026

  125cc vs. 140cc Dirt Bike: How to Choose a First Manual-Clutch Bike
• Ehatasamul Alom



  July 9, 2026

  Trek FX Sport 5 Not Starting? 5 Ways to Free Frozen Gears
• Ehatasamul Alom



  July 9, 2026

  Why Your Trek FX Sport 4 Not Starting: Simple Chain Link Fixes
• Ehatasamul Alom



  July 9, 2026

  Trek FX 2 Disc Gen 4 Not Starting? 5 Ways to Free Your Gears
