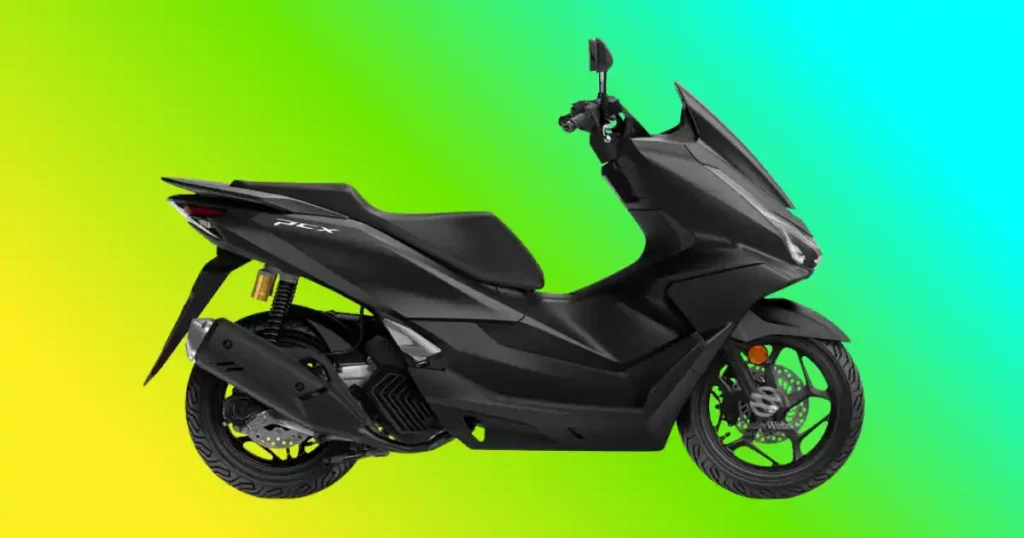

Why Your Honda PCX 125 Not Starting: Scooter Electronics Guide

Hearing absolute silence when you press your scooter starter button can ruin your day. A couple of seasons ago during a freezing week in Columbus, Ohio, a rider brought a bike in after trying to kick it over for hours. The quick fix was just replacing a flat coin cell inside the remote fob pocket. Minor electronic glitches frequently mimic major engine failures on modern fuel-injected maxi scooters. Before you pull your body panels apart or spend cash on a tow truck, let us walk through a clear diagnostic path. Resolving your honda pcx 125 not starting problem is easy when you use a methodical approach instead of guessing.

Honda PCX 125 Not Starting? Check These Things First

Before assuming the worst, start with a few simple checks. One chilly Tuesday morning in Columbus, Ohio, a commuter thought the starter motor had failed after work. The real problem? The smart key battery had gone flat. A fresh battery later, the scooter started like nothing had happened. Funny how tiny things can ruin a perfectly good ride.

What Happens When You Try to Start It?

• Nothing happens: The entire digital dash stays black, and the machine makes zero noise when you turn the main switch knob.
• Engine won’t crank: Your dashboard screen illuminates normally, but pushing the start button yields no engine movement at all.
• One clicking sound: You hear a single sharp snap near the battery compartment, but the motor refuses to spin.
• Rapid clicking noise: A loud chattering noise repeats from under the body plastic whenever you hold down the starter button.
• Engine cranks but won’t start: The motor spins fast and healthy, yet the engine never fires up into a steady idle.
• Starts and immediately stalls: The scooter springs to life for a fraction of a second but dies out instantly.
• Dashboard lights stay on but engine won’t start: Full electrical power shows on your panel, but the starter circuit stays dead.
• Smart key isn’t detected: The small key icon flashes on the display, and the main ignition dial refuses to unlock.

Five-Minute Quick Checks

• Verify the smart key battery: Check if the small LED light on your remote fob glows bright green when pressed.
• Confirm the engine stop switch position: Make sure the red rocker switch on the right handlebar is set to run.
• Check fuel level: Look at your digital fuel gauge to make sure the tank contains fresh premium gasoline.
• Ensure the side stand is fully up: Pull the spring-loaded side stand completely up against the metal frame mount.
• Squeeze the rear brake lever: Squeeze the left brake handle hard toward the grip to activate the safety switch.
• Inspect the battery terminals: Look for loose lead screws or fuzzy white rust growing on the main wire ends.
• Listen for the fuel pump priming: Listen close to the fuel tank for a two-second hum when cycling the key.
• Look for warning lights: Check for a blinking amber engine lamp or a flashing security light on the display.

When You Should Stop Troubleshooting

• Burning smell: A pungent odor of melting plastic means an active electrical short circuit is scorching your harness wires.
• Fuel leaking: Wet spots under the belly pan mean you must turn off the machine to prevent a fire.
• Smoke from wiring: Visible gray smoke means high current is destroying electronic components right under your seat storage.
• Dashboard shows multiple warning lights: Erratic flashing across the display indicates a serious central power supply fault.
• Grinding starter noise: Harsh metallic screeching means the starter drive gears are stripped or binding against the engine flywheel.
• Blown fuse repeatedly: If a replacement plastic fuse pops the instant you plug it in, a direct short exists.

How the Honda PCX 125 Starting System Works

The Honda PCX 125 relies on electronic systems working together. Understanding the starting sequence makes finding faults much easier.

Main Components

The modern electrical network relies on a strong twelve-volt battery to feed power directly through the main fuse block. The security loop features an advanced smart key system that communicates with a central electronic control unit (ECU). To permit cranking, the machine utilizes a side stand switch and a dual-purpose brake lever switch layout. Fuel delivery is handled by an electric fuel pump and a precise fuel injector governed by Programmed Fuel Injection (PGM-FI). For ignition, a high-voltage ignition coil transfers power down the lead to a premium spark plug. Engine rotation is monitored by a sensitive crankshaft position sensor, while a safety bank angle sensor cuts power if the scooter tips over.

Normal Starting Sequence

Carrying your active smart key fob near the scooter allows the security system to recognize the unique rolling code. Squeezing the rear brake lever closes an electrical contact, sending a start authorization signal down to the computer. The ECU verifies all safety switch inputs are correct and prompts the fuel pump to prime the injection lines. Pressing the handlebar button closes the starter relay, routing heavy battery current into the starter motor assembly. The starter motor spins the crankshaft smoothly to draw air and fuel into the combustion chamber. As the crankshaft position sensor marks top dead center, the ignition coil fires the spark plug to ignite the mixture.

Most Common Reasons Your Honda PCX 125 Won’t Start

Most starting problems come from battery issues, the smart key system, fuel delivery, or safety switches. Start with the easiest inspections before replacing expensive components.

Weak or Dead Battery

Common Symptoms

Your digital dash display dims significantly or resets completely whenever you try to engage the starter button on the handlebar.

Battery Voltage Test

Connect your digital multimeter leads directly to the lead terminal screws located inside the battery box under the floor mat. A healthy resting battery must read between twelve point eight and thirteen point zero volts with the ignition turned off.

Battery Load Test

Watch the digital meter screen while holding down the starter button with the rear brake lever squeezed completely flat. If the displayed number plummets below ten volts during this cranking attempt, your battery cells cannot support a load.

When Replacement Is Necessary

If your battery fails to climb above twelve point four volts after spending twelve hours connected to a smart motorcycle trickle charger, its internal lead plates are spent.

Smart Key Battery Failure

Warning Signs

The scooter takes multiple attempts to recognize your presence, or the key indicator light on the dash flashes slowly for several seconds after you turn the ignition switch on.

Emergency Starting Procedure

If your fob dies completely on the road, remove the plastic access panel to reveal the emergency mechanical key slot. Insert your plastic ID tag tool and enter your unique numerical door code sequence to unlock the computer manually.

Replacing the Key Battery

Use a small coin to split the plastic fob casing into two separate halves. Slide the old CR2032 lithium button cell out and install a fresh one with the positive face oriented downward.

Faulty Starter Relay

Clicking Without Cranking

A single loud click from the rear bodywork followed by total engine silence means your starter relay is shifting but failing to pass high current down the line.

Relay Testing

Locate the relay component box and bridge the two heavy copper screw studs using an old insulated screwdriver blade. If the starter motor spins immediately, the internal copper relay contacts are burnt and the unit must be swapped.

Starter Motor Problems

Slow Cranking

The starter motor can suffer from dry internal bearings or worn copper brushes over years of stop-and-start urban city riding. This wear creates high internal friction, causing very slow engine cranking that sounds incredibly weak.

Internal Wear

Thick black carbon dust from the wearing brushes can accumulate inside the motor housing over time. This dust creates an internal ground short that robs the starter of its spinning torque.

Fuel Pump Failure

No Priming Sound

If turning the ignition knob produces total silence under the plastic floorboards, your electric fuel pump is not spinning to build up proper fuel line pressure.

Fuel Pressure Test

Install a mechanical fuel pressure gauge inline between the fuel tank outlet pipe and the throttle body intake hose. Cycle the key to verify that the pump holds steady pressure.

Dirty Fuel Injector

Injector Blockage

Microscopic bits of dirt or sticky fuel lacquer can easily plug the tiny atomizing holes in your fuel injector nozzle. This restriction prevents the cylinder from receiving a fine mist of fuel.

Cleaning Options

Remove the single hold-down bolt to pull the injector out of the intake tract. Clean the nozzle tip by flushing it with specialized aerosol carburetor spray while pulsing the internal valve using a nine-volt battery.

Worn Spark Plug

Weak Spark

An old spark plug develops a rounded center electrode that requires much higher voltage to create an electrical arc. This wear results in a weak orange spark that fails to ignite cold fuel.

Correct Plug Gap

Use a wire feeler gauge to measure the distance between the center electrode and the side ground strap. The gap must measure exactly zero point eight to zero point nine millimeters.

Ignition Coil Failure

Coil Resistance

Set your digital multimeter to the low ohms scale to check the health of the primary coil windings. Measure across the input tabs, then check the high-tension spark plug lead wire for internal breaks.

Misfire Symptoms

A failing ignition coil often breaks down internally when it gets hot from riding. This creates an engine misfire that makes the scooter sputter before dying at traffic lights.

Side Stand or Brake Switch Failure

Safety Interlock Diagnosis

The side stand switch lives in a highly exposed area down under the frame where it catches road grit. If the internal return spring sticks open, the computer assumes the stand is down and cuts the ignition circuit.

Bank Angle Sensor Issues

Sensor Reset

The bank angle sensor is a safety device designed to shut down the fuel pump instantly if the scooter tips over on its side. To reset the circuit after a tip, turn the main switch off for ten seconds.

After a Fall

If your scooter refuses to crank after a minor parking lot fall, the internal pendulum inside the sensor might be stuck. Tap the plastic sensor housing gently with a screwdriver handle to free the mechanism.

ECU or Sensor Faults

FI Warning Light

When a critical engine sensor fails to report accurate data, the amber fuel injection warning light on your dash dashboard panel will illuminate.

Reading Diagnostic Codes

Locate the red four-pin diagnostic connector under the seat storage bucket. Plug in a compatible code reader to extract the active error codes stored in the computer memory.

Honda PCX 125 Cranks but Won’t Start

If the starter motor spins normally but the engine never fires, focus on spark, fuel, and compression.

Check Spark

Remove the cosmetic plastic access door inside the storage bucket to reach the cylinder head. Pull the thick rubber spark plug cap off, unscrew the plug, and insert it back into the cap. Hold the metal threaded body firmly against a bare aluminum bolt on the engine block. Press the starter button while watching the tip closely. You want to see a bright, snappy blue spark leap across the electrode gap.

Verify Fuel Delivery

If your spark looks strong and healthy, you must verify that fuel is actually entering the intake tract. Unbolt the plastic air cleaner duct to gain a clear view of the throttle body butterfly valve. Spray a short two-second burst of aerosol starter fluid directly into the intake mouth and crank the engine over. If the motor fires up briefly and idles for a moment, you have confirmed a fuel starvation issue.

Test Fuel Pump Pressure

Disconnect the quick-disconnect fuel line coupon located right above the valve cover area. Attach a mechanical fuel pressure tester gauge directly into the open line. Turn the ignition switch on to cycle the pump. The gauge needle must jump up rapidly and hold steady pressure. A low reading means the internal fuel pressure regulator or the pump pump filter screen is completely choked with debris.

Inspect Fuel Injector

A spark plug tip that stays bone dry after twenty seconds of continuous engine cranking indicates that no fuel is entering the combustion chamber. Unbolt the fuel injector assembly from the intake manifold while leaving its wire plug and fuel line attached. Point the nozzle into a clean glass jar and crank the motor. The injector must deliver a clean, crisp atomized cone pattern rather than a lazy stream of drops.

Perform Compression Test

Your engine requires mechanical compression to generate heat and properly combust the air and fuel mixture. Thread a standard automotive compression gauge tightly into the empty spark plug hole. Twist the handlebar throttle grip wide open and crank the engine for five full seconds. If the gauge fails to rise, look for tight valve clearances or a blown cylinder head gasket.

Inspect Air Filter

Open the plastic air box housing on the left side of the rear wheel to check the state of the pleated paper filter element. A filter choked with thick road dust, spider webs, or oil blow-by from a overfilled crankcase will suffocate the engine. Try starting the scooter with the filter element removed to see if the engine fires up.

Honda PCX 125 Starts Then Stalls

This usually points toward fuel delivery, idle control, or electronic sensor problems.

Fuel Pressure Loss

A failing fuel pump motor can often manage to generate just enough initial pressure to start the engine when cold. However, once the motor begins running, the pump can suffer from an internal electrical short that causes it to lose speed. This drop causes fuel pressure to fall off rapidly, resulting in an immediate stall.

Dirty Injector

A partially restricted injector nozzle might allow enough fuel through to catch a quick spark during starter cranking. Once the engine catches and expects a rapid, precise pulse of fuel to maintain a steady idle speed, the restricted fuel flow causes the mixture to run lean, making the engine sputter and die.

Idle Air Control Problems

Modern variants use an electronic bypass valve inside the throttle body to manage the volume of air entering the engine when your hand is off the throttle. If thick carbon sludge builds up inside this tiny air bypass channel, the engine will start fine but suffocate and stall the instant you release the starter button.

Vacuum Leak

Any unmetered air entering the engine behind the throttle body sensor will upset the delicate air-to-fuel balance. Inspect the rubber rubber intake manifold boot for fine cracks or loose hose clamps. A tiny air leak draws extra oxygen into the cylinder, creating a lean mixture that cannot sustain a steady idle.

Faulty ECU Sensor

The engine computer relies heavily on live data coming from the engine coolant temperature sensor. If this component sends a false warm reading to the computer on a cold morning, the ECU will fail to enrich the fuel mixture properly, causing the cold engine to stall out immediately after starting.

Honda PCX 125 Won’t Start After Sitting

Leaving the scooter unused for several weeks can create battery and fuel issues.

Battery Self-Discharge

Lead-acid and lithium motorcycle batteries naturally lose their electrical charge over time when left sitting idle in a garage. The smart key receiver module inside your scooter must stay awake continuously to watch for your remote fob, creating a tiny parasitic drain that can deplete a battery in less than a month.

Old Fuel

Modern pump gasoline blends begin to degrade and lose their volatile ignitable properties in as little as thirty days. The highly volatile chemical elements evaporate out through the tank vent, leaving behind a stale, heavy liquid that resists spark ignition and smells like old household paint thinner.

Injector Deposits

As stale fuel dries up inside the warm tip of a fuel injector nozzle, it leaves behind a hard lacquer crust. These microscopic varnish blockages stop the injector valve from atomizing fuel into a fine mist, leading to extended cranking sessions and completely dry spark plugs.

Corroded Battery Terminals

Moisture present in garage air can attack exposed copper and lead wire connections over months of storage. A thin layer of non-conductive green or white oxidation forms directly between the battery post and the wire terminal lug, blocking the heavy electrical flow needed to engage the starter motor.

Moisture in Connectors

Temperature changes inside a storage shed cause moisture to condense on cold metal components. This water can seep deep inside unsealed electrical wiring harness plugs, creating temporary high-resistance connections that confuse the electronic control unit when you first turn the key.

Honda PCX 125 Won’t Start After Rain

Moisture often finds its way into electrical connectors or ignition components.

Wet Ignition Coil

The high-voltage ignition coil sits under the body plastic where rear wheel splash can sometimes coat the housing. If the plastic coil body has developed microscopic cracks from age, rainwater will soak into the windings, shorting the high-voltage spark energy straight into the scooter frame.

Water Around Spark Plug

The deep spark plug well located in the top of the cylinder head features a small drain hole designed to let rainwater escape. If this tiny hole becomes plugged with road mud, the spark plug well will fill up with water during a downpour, shorting out the spark plug cap.

Damp Wiring Connectors

If the rubber weather seals inside your main wiring harness plugs are old or misaligned, rainwater can seep into the metal pins. This moisture creates temporary electrical connections between separate wire lines, sending false voltage signals that can prompt the ECU to shut down the ignition circuit.

Water Inside Switchgear

Rainwater can drain straight down into the starter button or the red engine stop switch housing on your handlebars. This water creates temporary corrosion on the physical copper contact plates, blocking the electrical signal from reaching the starter relay when you push the button.

Step-by-Step Honda PCX 125 Diagnosis

Professional technicians avoid guessing. One rainy Thursday in Portland, Oregon, a customer requested a new ECU after repeated starting failures. Testing revealed a weak battery dropping below 9 volts during cranking. A battery replacement solved everything before lunchtime.

Step 1 – Verify Smart Key Operation

Walk up to the scooter and press the button on your smart key fob. Ensure the tiny LED light flashes a bright green color. Press the main ignition switch knob inward on the scooter dash panel and verify that the circular blue backlighting ring illuminates to confirm successful wireless communication.

Step 2 – Measure Battery Voltage

Access the battery compartment under the floor mat and set your digital multimeter to the DC voltage scale. Touch the red meter lead to the positive battery screw terminal and the black lead to the negative post. Note the resting voltage, which must read twelve point eight volts or higher.

Step 3 – Load Test the Battery

Keep your digital multimeter leads pressed firmly against the battery posts. Squeeze the rear brake lever flat against the handlebar and push the starter button to crank the motor. Watch the meter screen closely; if the voltage drops below ten volts during cranking, the battery is dead.

Step 4 – Inspect Battery Connections

Give both the thick red positive cable and the heavy black ground cable a firm physical tug with your hand. Ensure the metal terminal bolts are cranked down perfectly tight. Use a wire brush to clean away any white powder corrosion before applying a thin coat of dielectric grease.

Step 5 – Check Main Fuse

Locate the primary fuse box adjacent to the battery container under the floor. Pull the main twenty-amp fuse out of its plastic slot and inspect the internal metal link element. If the link is melted or broken apart, install an identical spare fuse from the holder.

Step 6 – Listen for Fuel Pump

Turn the main ignition selector knob to the on position while keeping your ear close to the low floorboard area. Listen for a distinct, smooth two-second whirring sound as the electric pump primes the system. Total silence points toward a blown pump fuse or a bad fuel relay.

Step 7 – Test Spark

Unscrew the spark plug from the cylinder head using a dedicated thin-wall plug socket. Pop the plug back inside the rubber spark plug cap and ground the metal threads against a bare engine bolt. Hit the start button and look for a bright, snappy blue arc.

Step 8 – Compression Test

Thread a mechanical compression tester gauge into the empty spark plug opening in the cylinder head. Twist the handlebar throttle grip completely wide open to allow maximum airflow. Crank the engine over for five seconds using the starter button and check the gauge reading.

Step 9 – Read ECU Fault Codes

If the amber engine warning lamp is flashing on your dashboard screen, you must count the sequence of blinks. Long slow flashes represent tens, while short quick blinks represent single digits. Add them together to determine the diagnostic fault code for the broken sensor circuit.

Honda PCX 125 No-Start Troubleshooting Table

Years of workshop experience show that matching symptoms to likely causes saves both time and money. Start with the simplest possibilities before ordering new parts.

Experienced motorcycle mechanics use a systematic guide to match common symptoms with their primary causes. This process eliminates guesswork and saves valuable repair time in the workshop.

Honda PCX 125 Battery Voltage Guide

A digital multimeter quickly reveals whether the battery is healthy enough to support starting.

Testing battery voltage under a starting load gives you a true indication of the internal cell health before you buy a new replacement.

Diagnose by Symptom

Different symptoms point to different systems. This chart helps narrow the search before replacing parts.

Isolate starting faults quickly by grouping your observations into clear categories. Focus your efforts only on the systems related to your specific breakdown sign.

Maintenance Schedule to Prevent Starting Problems

Routine maintenance keeps the Honda PCX 125 dependable, especially if you ride every day.

Following a strict preventative maintenance plan prevents common wear items from developing into inconvenient starting failures on your morning commute.

Essential Tools Every Honda PCX 125 Owner Should Own

Most starting faults can be diagnosed without visiting a workshop if you have a few basic tools.

Recommended Tools

• Digital multimeter: Measures exact battery voltages and checks wire continuity across the harness circuits.
• Battery charger: A low-amperage smart maintenance charger that keeps your battery topped up during storage.
• Battery load tester: Applies a simulated starter load to reveal weak cells inside the battery casing.
• Spark tester: Connects inline to safely visually check the strength and color of your ignition spark.
• Compression tester: Screws into the spark plug port to evaluate the mechanical seal of your valves.
• OBD scanner compatible with Honda: Connects to the diagnostic port on FI models to read stored fault codes.
• Contact cleaner: A fast-drying spray that cleans grease, grime, and corrosion out of wire plugs.
• Basic socket set: A selection of metric sockets needed to remove body panels and engine covers easily.
• Torque wrench: Ensures engine components like spark plugs are tightened exactly to factory specs.

Common Owner Mistakes

Many repairs become expensive because owners replace parts before testing the basics.

Ignoring the Smart Key Battery

Many owners assume a major computer breakdown has occurred when the ignition dial refuses to unlock. They often overlook the tiny coin battery inside the smart key fob. This simple oversight results in expensive towing fees for a fix that takes two minutes.

Skipping Battery Load Testing

A battery can easily display a perfectly normal resting charge of twelve point seven volts on a digital meter. If you skip a proper cranking load test, you will miss internal cell degradation that causes voltage to drop under load.

Forgetting the Brake Switch

The starter motor will not engage unless the computer receives a clear signal from the brake switch. Owners frequently replace starter relays while completely ignoring a dirty microswitch behind the left handlebar lever.

Replacing the Starter Motor First

Buying an expensive new starter motor before checking your basic wiring is a frequent mistake. Most quiet starters are caused by a bad starter relay, a blown fuse, or a loose green ground wire on the engine case rather than a failed motor.

Ignoring FI Warning Lights

The flashing amber light on your dash is trying to tell you exactly where the problem is. Trying to adjust mechanical settings while the computer is actively warning you of a sensor circuit fault is a waste of time.

Using Old Fuel

Leaving pump gasoline sitting inside your fuel tank for six months and expecting the bike to start up smoothly is unrealistic. Modern fuel degrades quickly and will plug up tiny injector nozzles or carburetor jets with sticky varnish.

USA Motorcycle Expert Advice

Experienced technicians know that electrical testing saves money. Modern scooters like the Honda PCX 125 depend heavily on electronic systems, so guessing rarely works.

“Most no-start scooters arriving at our shop don’t need major repairs. We usually find a weak battery, faulty smart key battery, dirty fuel injector, or poor electrical connection. Testing always beats guessing.” — Mike Reynolds, Motorcycle Diagnostic Technician, Texas

Why Battery Testing Comes First

Modern electronic fuel injection systems and smart key computer modules require clean, stable electrical voltage to function properly. If your system voltage dips below ten point five volts while cranking, the central computer module will shut down temporarily to protect its internal circuits. Even if the engine turns over slowly, the scooter will never fire up if the ECU lacks the power to manage the fuel injector pulses.

Real Workshop Experience

On a busy Monday morning, a customer brought in a premium scooter, absolutely convinced that the main engine computer had failed. The dashboard screen turned on fine, but the engine refused to crank when the button was pressed. We connected a digital battery load tester and watched the voltage drop to six volts due to a hidden short inside the battery plates. Installing a fresh, fully charged battery solved the starting problem instantly, saving the customer from buying an expensive computer module.

How to Prevent Future Starting Problems

Small maintenance habits can prevent inconvenient no-start situations.

Keep the Battery Charged

Connect your scooter to an automatic smart maintenance charger if you plan to leave it parked for more than two weeks. This practice counters the continuous parasitic power drain from the smart key security module.

Replace the Smart Key Battery Before It Dies

Get into the habit of installing a fresh CR2032 lithium battery cell inside your remote control fob every single year. Replacing this inexpensive button cell early ensures you will never be left stranded by a dead signal.

Use Fresh Fuel

Always fill your scooter tank with high-quality fuel purchased from busy, reputable filling stations. If you must store your machine for the winter season, add a premium fuel stabilizer additive to protect the system lines.

Clean Electrical Connections

Unplug your primary electrical connectors once a year and spray the metal terminal pins with a fast-drying electronic contact cleaner. This simple maintenance step removes thin road salt corrosion before it creates electrical resistance.

Follow Honda’s Maintenance Schedule

Adhering to the factory service timeline ensures that critical wear components like spark plugs and valve clearances are checked on schedule. Keeping your engine within factory specifications prevents hard starting when the motor is hot.

Ride the Scooter Regularly

Taking your scooter out for a solid thirty-minute ride at highway speeds at least once a week keeps the engine healthy. This regular use burns off internal engine moisture and allows the stator to fully charge the battery.

When Should You Visit a Honda Dealer?

Some faults require factory diagnostic equipment and specialized repair procedures.

Persistent FI Warning Light

An amber fuel injection light that stays illuminated after checking your basic switch connections indicates an internal wiring break deep inside the main harness loom, requiring an advanced diagnostic scan tool.

ECU Communication Errors

If your central electronic control module has suffered internal hardware damage or lost its software programming, it must be replaced and synced using a proprietary factory system link that only authorized dealers possess.

Fuel Pump Replacement

Replacing a faulty fuel pump assembly requires draining the fuel system and using specialized locking ring tools to seal the new unit into the tank without causing dangerous fuel leaks.

Wiring Harness Damage

Fixing extensive wire damage caused by a rodent chew or a major frame short circuit requires professional diagnostic schematics and specialized splicing tools to prevent future resistance issues in sensitive data lines.

Low Engine Compression

If a compression gauge reveals that your cylinder cannot hold mechanical pressure, repairing worn piston rings or burnt valve seats requires deep engine teardown tools and precise measuring gear best left to professionals.

Honda PCX 125 Compared With Similar Honda Scooters

Many Honda scooters share similar electrical and fuel systems, so troubleshooting methods often overlap.

Honda PCX 125 vs Honda Forza 125

The Honda Forza 125 is a larger maxi-scooter that utilizes a more complex electronic wind screen and an expanded dashboard computer network. While the Forza shares a very similar engine design with the PCX 125, its starting circuit includes extra safety relays that add more steps to the electrical troubleshooting process.

Honda PCX 125 vs Honda Click 125

The Honda Click 125 is a lightweight step-through scooter engineered for crowded city streets. It lacks the complex smart key keyless ignition security system found on the premium PCX 125, making its starting circuit much simpler to diagnose with a basic test light when a no-crank condition occurs.

Honda PCX 125 vs Honda Activa 125

The Honda Activa 125 is a popular utility scooter utilizing a simplified mechanical key cylinder setup. Unlike the PCX 125, which relies strictly on its high-output electric starter motor, the Activa includes a traditional backup mechanical foot kick-starter lever that allows you to start the engine even if your battery is too weak to spin the starter.

Common Starting Problems Across Honda 125cc Scooters

Across this entire 125cc scooter family, the most frequent reason for an unexpected breakdown remains safety switch failure caused by road grime entering the exposed side stand switch housing. Regular cleaning of this lower pivot point keeps all these separate models starting reliably throughout the rainy season.

Frequently Asked Questions

Why is my Honda PCX 125 not starting?

The most common causes are a weak main battery, a flat smart key fob battery, a dirty rear brake lever switch, a stuck side stand safety switch, or a clogged fuel injector nozzle.

Why does my Honda PCX 125 click but not start?

A rapid chattering click sound means your battery lacks the amperage to spin the engine. A single sharp metallic click usually points toward burnt contacts inside your starter relay or worn starter motor brushes.

Why does my Honda PCX 125 crank but won’t start?

This indicates that your starter motor is spinning the engine successfully, but the cylinder is missing either a strong electrical spark, clean high-pressure fuel delivery, or proper mechanical compression.

Can a weak battery power the lights but not start the engine?

Yes, your digital dashboard and LED headlights require very little electrical current to turn on. Spinning over a high-compression internal combustion engine requires massive amperage that a degraded battery cannot provide.

How do I know if the smart key battery is dead?

If the smart key battery is dying, the key indicator icon on your dashboard screen will flash for several seconds when you turn the scooter on, or the fob LED will fail to glow green.

Why won’t my Honda PCX 125 start after sitting for weeks?

The main battery naturally discharges over time due to the security system drain, while modern pump gasoline degrades inside the fuel lines and forms a sticky varnish that plugs the injector nozzle.

What does the FI warning light mean?

The amber Fuel Injection light means your engine control unit has detected an active electrical fault within a sensor circuit. The ECU flashes the light in specific patterns to help you identify the broken component.

How much does it cost to repair a Honda PCX 125 that won’t start?

Simple fixes like cleaning a dirty side stand switch or changing a key fob battery cost very little. A professional fuel pump or ECU replacement will require a larger financial budget for parts and labor.

Final Recommendation

Dealing with a non-starting scooter can be a frustrating experience, but over my years of working on these legendary machines, I have learned that the fix is almost always incredibly simple. My ultimate recommendation is to avoid the temptation to buy new parts the moment your engine fails to fire up. Instead, take a deep breath and spend ten minutes checking the basic foundations: verify your fuel flow, check your battery voltage with a simple meter, and confirm you have a bright blue spark. Keeping your system clean and your battery properly charged will ensure your Honda PCX 125 remains completely dependable for every single journey.

Ehatasamul Alom

Co-Founder, Owner, and CEO at RoadHybridBike – admin@roadhybridbike.com – Web

Ehatasamul Alom is a dedicated road hybrid bikes expert. With over 15 years of experience, he helps people find the perfect ride. He began his journey as a bike mechanic. He learned the ins and outs of every bike.

Ehatasamul Alom holds a Master's degree in Mechanical Engineering from a Brown University (Providence US 02912), where he specialized in material science and bicycle kinematics. His master's thesis focused on optimizing frame geometry for road hybrid bikes to improve rider comfort and efficiency.

Ehatasamul has an extensive professional background. He spent 10 years (2010-2020) as a Senior Bike Designer at "Urban Cycles," a leading bicycle manufacturer. In this role, he led the development of several award-winning road hybrid bikes, which are known for their durability and performance. He later served (2020-2024) as the Head of Product Development at "Gear Up," a company specializing in high-end cycling components. There, he developed innovative parts and accessories specifically for road hybrid bikes.

Over the years, Ehatasamul has become an authority on Roadhybridbikes. He understands their design and function. His work focuses on making bikes easy to use. Ehatasamul believes everyone should enjoy cycling. He writes guides that are simple to read. His passion for road hybrid bikes is clear. His goal is to share his knowledge with everyone. He wants to see more people on two wheels. His advice is always practical and easy to follow.

• Ehatasamul Alom



  July 17, 2026

  125cc vs. 140cc Dirt Bike: How to Choose a First Manual-Clutch Bike
• Ehatasamul Alom



  July 9, 2026

  Trek FX Sport 5 Not Starting? 5 Ways to Free Frozen Gears
• Ehatasamul Alom



  July 9, 2026

  Why Your Trek FX Sport 4 Not Starting: Simple Chain Link Fixes
• Ehatasamul Alom



  July 9, 2026

  Trek FX 2 Disc Gen 4 Not Starting? 5 Ways to Free Your Gears
