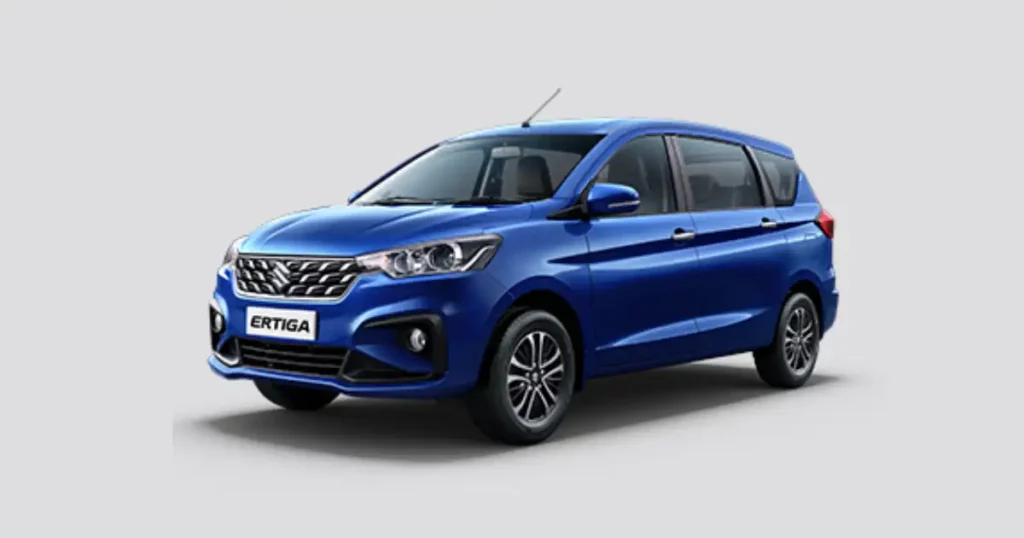

Suzuki Ertiga Not Starting? Complete Troubleshooting Guide

Stranded in a parking lot with a car that refuses to run can ruin your day completely. I still remember the stress of being stuck outside a busy diner in Flagstaff with a vehicle that suddenly went completely silent. That cool morning taught me how vital a quick, systematic check can be. Facing a suzuki ertiga not starting issue usually points to a simple electrical or fuel issue rather than a major mechanical failure. This complete guide will walk you through every common cause, simple fix, and smart diagnostic test to get your multi-purpose vehicle moving again.

Suzuki Ertiga Not Starting? Check These Simple Things First

Most no-start problems have surprisingly simple causes. I remember helping a family at a campground near Flagstaff on a cool Sunday morning. They were convinced the starter had failed, but the battery terminal had simply worked loose after driving rough gravel roads. Five minutes later, the Ertiga fired right up.

What Happens When You Try to Start the Ertiga?

• No crank at all: You turn the key or press the start button, but the engine bay remains completely silent.
• Single click: One sharp metallic sound rings out from under the hood, followed by total silence.
• Rapid clicking: A fast machine gun chattering sound builds up as long as you hold down the ignition switch.
• Engine cranks but won’t start: The motor spins fast and normal, but it refuses to catch fire and run on its own power.
• Starts then stalls: The engine fires up beautifully for one or two seconds but then immediately dies out.
• Dashboard lights flicker: The instrument cluster screens blink wildly when you try to crank the motor.
• Smart key not detected: A warning icon shows up on the dashboard screen indicating the car cannot find your key fob code.
• Slow cranking: The engine turns over very slowly and lazily, as if it lacks the energy to spin.

Five-Minute Quick Inspection Checklist

• Battery voltage: Measure the raw energy of your battery cells using a simple handheld pocket meter.
• Battery terminals: Wiggle the heavy lead wire clamps to make sure they are tight and free of loose movement.
• Fuel level: Look at your fuel gauge to confirm you have plenty of gasoline inside the tank.
• Gear selector in Park or Neutral (Automatic): Push the automatic transmission lever hard into Park before trying to start.
• Clutch pedal fully pressed (Manual): Shove the manual clutch pedal completely into the floor mat to close the safety switch.
• Brake pedal (Push-button models): Step firmly on the brake pedal until the small start button light glows green.
• Engine immobilizer light: Watch the dashboard to see if the security car lock icon turns off normally.
• Key fob battery: Hold your passive smart key directly against the start button while you press down.
• Main fuse: Inspect the largest plastic fuses inside the main engine bay box for broken metal links.
• Dashboard warning lights: Note any unique check engine symbols that stay lit when the key is on.

Warning Signs That Need Immediate Attention

• Burning smell: A strong acrid odor of melting plastic means an electrical wire is shorting out under the hood.
• Smoke under the hood: Visible white smoke means something is overheating or fluid is hitting hot exhaust metal.
• Fuel leak: The strong smell of raw gasoline near the engine means a fuel line might be leaking.
• Loud grinding noise: A harsh clashing metal sound means the starter teeth are slipping against the engine flywheel.
• Repeated blown fuses: A fuse that pops instantly after replacement means you have a live short circuit.
• Security warning light stays on: The anti-theft key icon remains lit, showing the car computer has locked you out.

How the Suzuki Suzuki Ertiga Starting System Works

Understanding how the starting system works makes troubleshooting much easier. Every successful engine start depends on battery power, fuel, air, spark, compression, and proper communication between the electronic systems.

Components That Work Together

• 12V battery: Stores chemical energy to provide the high current needed to spin the heavy starter motor.
• Starter motor: A powerful electric motor designed to physically turn the engine crankshaft to begin the combustion process.
• Starter relay: A small electrical switch inside the fuse box that handles high current safely.
• Starter solenoid: An electromagnet that pushes the starter gear forward into the teeth of the flywheel.
• Alternator: Generates electricity to run your electronics and recharge your battery while the engine runs.
• Electronic Control Unit (ECU): The central engine computer that manages fuel timing, spark delivery, and sensor monitoring.
• Ignition switch or push-button module: The input control that tells the vehicle computer you want to start the car.
• Fuel pump: An electric motor inside the fuel tank that pushes pressurized fuel up to the engine.
• Fuel injectors: Small electronic nozzles that spray a fine mist of fuel into the engine cylinders.
• Ignition coils: Upgrade low battery voltage into thousands of volts to create strong electrical sparks.
• Spark plugs: Create the tiny fire arcs inside the cylinder to explode the air and fuel mixture.
• Crankshaft position sensor: Measures the exact speed and position of the engine so the computer knows when to spark.
• Immobilizer system: An anti-theft security loop that verifies your smart key chip code before enabling the engine.

What Happens When You Press the Start Button?

• Immobilizer checks the key: The dashboard security module reads the wireless code from your key fob chip.
• ECU powers up: The main engine control computer boots up and checks all critical safety systems.
• Fuel pump primes: The electric pump runs for two seconds to build high pressure in the fuel lines.
• Starter motor engages: The starter solenoid clicks forward, locking its gear into the heavy engine flywheel.
• Fuel injectors spray fuel: The computer triggers the fuel nozzles to spray a precise mist into the air intake path.
• Spark ignites the mixture: The spark plugs fire in perfect time to explode the compressed fuel gas mix.
• Engine starts: The pistons move under their own explosive power, allowing the starter motor to disengage cleanly.

Most Common Reasons a Suzuki Ertiga Won’t Start

Most starting problems fall into a handful of categories. Following a step-by-step process helps you avoid replacing expensive parts unnecessarily.

Weak or Dead Battery

Common Symptoms

Your dashboard screens might light up normally, but they will dim or flicker wildly when you try to crank the engine. You will often hear a rapid clicking sound or a slow, tired grunt from the engine bay.

Battery Voltage Test

Take a digital multimeter and touch the probes to your bare battery posts with the car turned off. A healthy battery must read 12.6 volts or higher; a reading below 12.0 volts means the battery cells are flat.

Recharge or Replace?

If your battery is flat because an interior light was left on, a slow bench charger can restore it safely. However, if the battery is over three years old and cannot hold a charge, buy a new 12V battery.

Loose or Corroded Battery Terminals

Signs of Poor Connection

Look closely at the metal battery posts for any fuzzy white, blue, or green powdery crust. This lead sulfate powder acts like an electrical blanket that stops high current from reaching your starter cables.

Cleaning Battery Terminals

Loosen the negative clamp first using a metric wrench, remove both cables, and scrub the metal surfaces clean with a wire terminal brush. Wash away the residue using a mix of baking soda and warm water.

Faulty Starter Motor

Typical Symptoms

The battery is completely healthy, but you hear a single dull thud or absolute silence when trying to start. The dashboard lights remain bright, proving that power is waiting at the starter but the motor is dead.

Starter Testing

Use a voltmeter to check for a full 12 volts at the main starter power terminal while a helper cranks. If power arrives but the motor refuses to turn, internal brushes are worn, and the starter must be replaced.

Bad Starter Relay or Solenoid

Single Click Diagnosis

A single sharp click means your starter relay is working mechanically, but its internal contact pads might be burned out. The electricity cannot cross the burned copper faces to activate the heavy starter motor beneath.

Relay Inspection

Open the engine bay fuse box and locate the starter relay block using the cover diagram. Swap it temporarily with an identical, working relay from a non-essential circuit like the horn to test it.

Blown Fuse

Starter Fuse

A small dedicated fuse protects the control side of your starting circuit from high current surges. If this thin metal strip breaks, turning the ignition key will produce absolute silence under the hood.

Ignition Fuse

The ignition fuse supplies vital power to your vehicle steering lock module and ignition switch circuits. A blown ignition fuse prevents the car from recognizing that you are turning the key to start.

Main Fuse

The main fuse is a large high-amp metal link located directly on or near the positive battery terminal. If this heavy link blows, your entire car will lose electrical power instantly as if the battery was missing.

Fuel Pump Failure

No Priming Sound

Turn your key to the “ON” position without cranking and listen closely to the rear seat area. You should hear a quiet, two-second humming sound; absolute silence means the electric fuel pump is not running.

Low Fuel Pressure

A worn-out fuel pump might spin but fail to create enough liquid pressure to feed the injectors. The engine will crank over normally for a long time but will never catch fire or idle.

Dirty Fuel Injectors

Common Symptoms

The vehicle will suffer from rough idling, engine stumbling, or hard starting long before it fails completely. Clogged injector nozzles cannot spray a fine mist, leaving raw liquid droplets that refuse to ignite easily.

Cleaning Options

For mild clogs, pouring a bottle of high-quality polyetheramine fuel system cleaner into a full tank of fresh fuel can clear the nozzles. Severe clogs require professional removal and ultrasonic cleaning.

Faulty Spark Plugs or Ignition Coils

Misfire Before Failure

Worn spark plugs will cause your engine to stumble, lose fuel mileage, and trigger a flashing check engine light while driving. Eventually, worn electrodes cannot jump the gap, leaving the cylinder cold and wet.

Inspection Procedure

Remove the ignition coils and unscrew the spark plugs using a dedicated deep spark plug socket. Look for black carbon tracking, cracked white porcelain, or electrodes coated in thick dark engine oil.

Immobilizer or Smart Key Problems

Weak Key Fob Battery

A dead coin-cell battery inside your plastic key fob prevents the vehicle security antennas from reading your key code. If the keyless system fails, press the physical fob body directly against the start button to run.

Key Recognition Failure

This occurs when the internal programming link between your transponder chip and the engine computer breaks down. The car will refuse to crank because the security module actively blocks the fuel and spark systems.

Immobilizer Warning Light

Watch your instrument cluster for a yellow or red icon shaped like a car with a padlock inside. If this security indicator flashes rapidly when the key is on, the computer has locked you out.

Faulty Ignition Switch

Key Start Models

The physical electrical contact tracks behind your key cylinder can wear thin after years of daily twisting. If these tracks wear out, the switch fails to send the critical 12-volt start signal down the line.

Push-Button Models

On modern push-button variants, the electronic start switch housing can suffer from failed micro-switches inside. The car might enter accessory mode normally but ignore your requests to activate the starter relay circuit.

Crankshaft Position Sensor Failure

Symptoms

A failed crankshaft sensor prevents the engine computer from knowing if the motor is actually turning over. The engine will crank beautifully for hours, but the computer will never command the spark plugs to fire.

Diagnostic Testing

Connect a basic digital diagnostic code reader to the vehicle port under the steering wheel area. Check your real-time data screen while cranking to see if the engine RPM signal reads zero.

Alternator Charging Problems

Battery Keeps Going Flat

A bad alternator cannot produce enough electricity to run your car electrical systems and recharge your battery while driving. The vehicle will run off raw battery power until the cells drain completely flat.

Charging System Test

Jump-start your vehicle and connect a digital voltmeter to the bare battery terminals while the engine idles. A healthy charging system must read between 13.5 and 14.5 volts on your meter screen.

Suzuki Ertiga Cranks But Won’t Start

If the engine turns over but refuses to fire, focus on fuel delivery, spark, compression, and ECU communication before replacing parts.

Check for Spark

Remove an ignition coil, insert a dedicated spark testing tool, and ground the metal clip to the engine frame. Have a helper spin the engine while you watch the tester tip for a crisp, bright blue spark arc.

Listen for Fuel Pump Priming

Sit quietly inside the cabin, turn the ignition key to the second position, and listen for a brief humming sound from the back seat. This sound confirms the fuel pump motor is spinning to build initial line pressure.

Test Fuel Pressure

Connect a mechanical fuel pressure gauge directly to the test port on the engine fuel delivery rail. Crank the motor over and check that the gauge needle climbs up to meet factory pressure specifications instantly.

Inspect the Air Filter

Open the plastic engine air box and pull out the pleated paper filter element to check for heavy dirt. A completely clogged filter or an air intake path blocked by animal nesting material can suffocate the engine.

Scan OBD-II Trouble Codes

Plug a pocket diagnostic scan tool into the open port located underneath the driver side edge of your dashboard. Scan the internal vehicle memory for any stored fault codes related to sensors or modules.

Perform a Compression Test

Thread a professional compression gauge into an open spark plug hole and crank the engine over five times. The cylinder must build adequate pressure to compress the air fuel mix; low pressure means internal valve or ring wear.

Suzuki Ertiga Starts Then Dies Immediately

An engine that starts and stalls within seconds usually points toward fuel delivery issues, immobilizer faults, or air intake problems.

Immobilizer Activation

If the anti-theft security system does not recognize your smart key chip code, it allows the engine to catch fire for one second before cutting power. The computer actively shuts down the fuel injectors to prevent theft.

Fuel Pump Failure

A weak fuel pump motor might manage to build just enough resting pressure to fire the engine for a brief moment. However, the worn motor stalls out immediately under load, starving the running engine of liquid fuel.

Dirty Throttle Body

Over time, sticky black carbon sludge builds up around the edges of the internal round butterfly valve inside your throttle body. This debris blocks the tiny amount of fresh air needed to keep the engine idling smoothly.

Idle Air Control Issues

The engine computer uses an electronic control valve to manage fresh air bypass flow when your foot is off the gas pedal. If this valve sticks shut from dirt, the engine will die instantly unless you press the gas.

Sensor Communication Problems

A failed mass airflow sensor or a broken manifold pressure wire can send wild, incorrect data to the engine computer. The computer miscalculates the incoming air volume, creating an incorrect mix that causes the motor to stall.

Suzuki Ertiga Won’t Start After Sitting for Weeks or Months

Vehicles that sit for long periods often develop battery, fuel, and moisture-related problems. The good news is that most are straightforward to diagnose.

Battery Self-Discharge

Modern cars feature hidden electronic memories, clocks, and security modules that draw a tiny amount of electricity continuously. If your multi-purpose vehicle sits unused for a month, this constant parasitic drain will flatten the battery.

Sulfated Battery

Leaving a vehicle battery in a discharged or low state for weeks causes hard sulfur crystals to grow on the lead plates. This chemical sulfation ruins the internal cell structure, preventing the battery from accepting a charge.

Old Fuel

Modern gasoline begins to degrade and lose its volatile chemical properties after sitting inside a fuel tank for over three months. The fuel turns into a stale, varnish-like liquid that resists catching fire cleanly.

Fuel Pump Sticking

As old fuel sits inside the tank, it leaves behind sticky resin residues that coat the internal fuel pump gears. The small electric pump motor can bind up and stick completely when you finally try to start.

Rodent Damage

Parked vehicles offer a warm, safe home for mice and rats to build messy nests under the plastic engine cover. These pests will often chew through the soft rubber insulation of your engine wiring harness.

Moisture in Electrical Connectors

Without engine heat to dry out humid air, damp moisture can settle inside your open electrical plugs. This moisture causes green corrosion to form over metal terminals, blocking vital sensor signals from reaching the computer.

Step-by-Step Suzuki Ertiga Troubleshooting Process

Whenever I troubleshoot a no-start vehicle, I begin with the battery and work forward. One rainy Tuesday morning in Seattle, this exact routine saved a customer from replacing a perfectly healthy starter motor. The only problem was corrosion hidden beneath the battery clamp.

Step 1 – Check Battery Voltage

Place your digital multimeter leads directly onto the bare lead battery posts to read the resting state of charge. You must see at least 12.6 volts to prove the battery cells are healthy.

Step 2 – Inspect Battery Connections

Visually check both the positive red and negative black terminal clamps for any loose fitment or white powdery corrosion. Clean any crust off using a wire terminal brush and tighten the bolts firmly.

Step 3 – Check All Main Fuses

Open the plastic fuse box covers under the hood and beneath the dashboard to inspect the fuses. Look through the clear plastic windows to ensure the internal metal links are intact.

Step 4 – Listen for the Fuel Pump

Turn the ignition key to the run position without cranking the motor and listen carefully for a brief hum. This sound proves that the electric pump is waking up to supply fuel to the engine.

Step 5 – Inspect Spark Plugs

Remove your ignition coils and unscrew the spark plugs to check the condition of the firing tips. Ensure they are clean, dry, and free of black carbon fouling or wet fuel puddles.

Step 6 – Test the Starter Motor

Check for a clean 12-volt supply arriving directly at the main starter terminal stud while a friend cranks the ignition. If power arrives but the starter remains completely silent, the motor is dead.

Step 7 – Scan OBD-II Fault Codes

Plug your diagnostic scan tool into the open port located under the driver side edge of the dashboard. Read any stored trouble codes to identify failing safety switches or broken engine sensors.

Step 8 – Verify Fuel Pressure

Attach a mechanical pressure gauge to the engine fuel rail line to check the actual pump output during cranking. Verify that the line pressure matches factory specifications to ensure proper fuel delivery.

Suzuki Ertiga No-Start Diagnosis Table

Professional technicians compare symptoms before replacing parts. This approach saves time, reduces costs, and often leads to the correct repair on the first attempt.

Before spending money on replacement parts, use this technical symptom matrix to match your vehicle’s behavior with its most likely root cause.

Battery Voltage Reference Table

Checking battery voltage first has saved me more time than any other diagnostic habit. It quickly confirms whether the electrical system has enough power to crank the engine.

Connect a standard digital handheld meter to your vehicle battery posts while the engine is off to analyze the accurate state of charge.

Dashboard Warning Lights That Can Affect Starting

Modern Ertiga models rely on several electronic systems. Warning lights often provide valuable clues before you even lift the hood.

Review these critical dashboard indicators to see how individual electronic safety systems can interact with and influence your starting sequence.

Essential Tools for Diagnosing a Suzuki Ertiga

You don’t need dealership equipment for many no-start problems. These basic tools can help diagnose most common faults at home.

Recommended DIY Tools

• Digital multimeter: Measures exact DC voltage drops and checks electrical circuit continuity across open wires.
• OBD-II scanner: Communicates directly with the vehicle computer to pull stored diagnostic trouble codes quickly.
• Battery charger: Connects to a standard home wall outlet to slowly and safely recharge flat battery cells.
• Battery load tester: Applies a physical electrical load to test the actual cranking capacity of your battery plates.
• Socket set: A complete kit of standard metric sockets to easily unbolt terminal clamps, fuses, and engine covers.
• Fuse puller: A small plastic tweezer tool designed to remove small fuses without damaging adjacent circuits.
• Spark plug socket: A deep socket with an internal rubber insert to safely grip and remove spark plugs without cracking them.
• Battery terminal cleaner: A dual-purpose wire brush tool that cleans both the battery posts and the inside of cable clamps.
• Contact cleaner: An evaporating spray cleaner used to wash oil, dirt, and moisture out of delicate sensor plugs.
• Flashlight: A bright light source to inspect dark ground connections and low engine components clearly.

Common Mistakes Owners Make

Even experienced DIY mechanics sometimes overlook the basics. A calm, methodical approach usually wins over guesswork.

Assuming the Starter Motor Has Failed

Many owners rush to buy an expensive new starter motor the moment their vehicle goes completely silent. Most of the time, the starter motor is perfectly fine, and the true issue is a flat battery or a loose ground wire.

Ignoring Battery Voltage

Do not assume your battery is completely healthy simply because your radio and dome lights turn on. Those tiny accessories require very few amps, while spinning a multi-purpose vehicle engine requires massive current.

Forgetting About the Immobilizer

It is easy to overlook the vehicle security loop when troubleshooting a crank but no-start condition. A flashing security light means the computer is actively blocking fuel delivery; mechanical parts are not the issue.

Replacing Parts Before Reading OBD-II Codes

Buying new sensors or ignition coils before checking the vehicle computer memory is expensive guesswork. Always scan for stored fault codes first to let the vehicle sensors point you toward the true problem.

Ignoring Corroded Battery Terminals

Leaving a thick layer of green or white powdery crust on your battery connections limits current flow. Even a brand-new battery cannot start your engine if the electrical path is choked by heavy corrosion.

Forgetting to Check the Key Fob Battery

A weak or dying coin cell battery inside your key fob can easily mimic a major electrical failure. Always try your backup key or check the fob battery before unbolting heavy mechanical components under the hood.

Expert Advice From a U.S. Automotive Technician

Professional technicians begin with testing, not replacing. That approach saves money and often solves the problem much faster.

“Most no-start vehicles don’t need expensive repairs. In our shop, battery condition, cable connections, and starter circuit voltage account for the majority of starting complaints. We always verify the basics before replacing any component.” — Michael Torres, ASE Master Technician, Texas

Why Professionals Follow a Diagnostic Sequence

Following a strict testing sequence eliminates simple variables before moving on to complex electronic networks. It saves hours of diagnostic time and prevents you from installing unneeded parts on a healthy car.

Real Workshop Example

On a hot Thursday morning in Dallas, a customer had their multi-purpose vehicle towed to our shop, certain that the electric fuel pump had failed because the engine would crank over but wouldn’t start. I connected my digital meter to the battery and read a stable 12.4 volts while parked. However, the moment we cranked the engine, the voltage collapsed below 9 volts. This low voltage confused the engine computer, preventing it from firing the fuel injectors. A fresh battery solved the problem immediately, and the original fuel pump worked perfectly.

How to Prevent Suzuki Ertiga Starting Problems

Routine maintenance costs very little compared to emergency repairs. A few simple habits can greatly improve long-term reliability.

Test the Battery Twice a Year

Take your vehicle to a local service center or parts store for a professional electrical load test twice a year, ensuring it is ready for seasonal temperature shifts.

Keep Battery Terminals Clean

Inspect your battery connections every six months and clear away any trace of lead sulfate crust using a stiff wire brush. Apply a thin coat of protective grease to block moisture.

Replace the Key Fob Battery Every Few Years

Do not wait for your smart key system to fail completely. Swap out the small internal CR2032 battery inside your key fob every two years to maintain a strong wireless signal.

Drive the Vehicle Regularly

Avoid letting your vehicle sit idle for weeks at a time. Drive the car for at least twenty minutes once a week to allow the alternator to keep the battery fully charged.

Use High-Quality Fuel

Always fill your tank with clean fuel from reputable high-volume gas stations to prevent water contamination and fuel injector clogging over time.

Replace Spark Plugs on Schedule

Follow your vehicle maintenance manual guidelines and install fresh spark plugs at the recommended mileage intervals to ensure easy starting and clean combustion.

Scan OBD-II Codes During Routine Service

Plug a diagnostic scan tool into your dashboard port during regular oil changes to check for any pending codes before they grow into a no-start condition.

When You Should Visit a Suzuki Service Center

Some faults require specialized diagnostic tools and factory programming. If the basic checks don’t identify the problem, professional testing is the safest next step.

Immobilizer Programming Issues

If your vehicle computer loses track of your unique smart key security codes, resolving the issue requires a factory computer connection to securely re-link your keys.

ECU Communication Failures

When the main engine computer stops talking to the electronic body modules, diagnosing the broken data stream requires specialized automotive network diagnostic software.

Wiring Harness Damage

If rodents have chewed through a main factory wire bundle beneath the intake manifold, tracing and soldering those individual circuits requires professional wiring expertise.

Internal Engine Problems

Issues like a broken timing chain or severely worn internal piston valves require heavy mechanical teardown work that is best handled by certified shop technicians.

Repeated No-Start Conditions

If your vehicle battery keeps draining flat every few days despite being brand new, finding the hidden parasitic computer short requires a detailed electrical draw test.

Suzuki Ertiga vs Other Suzuki Models With Starting Problems

Many Suzuki vehicles share similar electrical systems, but each model also has its own common trouble spots.

Maruti Suzuki Ertiga vs Maruti Suzuki XL6

The Ertiga and XL6 share the same basic chassis architecture and K15 engine platform. However, because the XL6 utilizes a more complex mild-hybrid smart hybrid battery setup, it features additional battery sensors that can trigger unique electronic no-start conditions.

Ertiga vs Maruti Suzuki Dzire

The Dzire sedan features a smaller engine bay configuration and uses a lighter-capacity electrical starting circuit. While the Dzire is highly sensitive to minor terminal corrosion, the larger Ertiga platform tends to tax its battery quicker due to its dual air-conditioning blower loads.

Ertiga vs Maruti Suzuki Swift

The Swift hatchback is a lighter car with fewer cabin electronic modules drawing resting current. An Ertiga that sits idle will usually exhaust its starting battery days quicker than a Swift because of its larger central locking and body control systems.

Which Starting Problems Are Shared Across Suzuki Models?

All these passenger models utilize identical factory starter relay designs and similar copper lead battery clamp structures. They are all highly vulnerable to developing starting click noises or crank-no-start symptoms if driven strictly on brief, five-minute neighborhood trips.

Frequently Asked Questions

Why is my Suzuki Ertiga not starting even though the battery seems fine?

A car battery can hold enough surface voltage to run your headlights while lacking the high amp current needed to spin the starter motor under load.

Why does my Suzuki Ertiga click but not start?

A clicking noise means your starting relays are closing properly, but current cannot flow into the starter motor due to a flat battery or loose cable clamps.

Can a weak key fob battery prevent push-button starting?

Yes, a dead key fob battery stops the vehicle security system from reading your code. Hold the physical fob body directly against the start button to bypass this.

Why won’t my Suzuki Ertiga start after heavy rain?

Heavy dampness can cause moisture to settle inside worn ignition coils or older sensor plugs, shorting out the electrical paths needed to create a clean spark.

How do I know if the starter motor is faulty?

If your battery is confirmed healthy and you hear a single click while 12 volts arrives directly at the starter motor main terminal stud, the motor is dead.

Can a bad fuel pump stop the Ertiga from starting?

Yes, a failed fuel pump cannot deliver gasoline to the engine injectors. The engine will crank over normally for a long time but will never fire or run.

What does the immobilizer warning light mean?

The car-and-padlock icon means the vehicle security system does not recognize the key code being used and has locked down the engine management system.

How much does it cost to repair a Suzuki Ertiga that won’t start?

Simple fixes like cleaning dirty terminal clamps cost nothing. A new starting battery runs around a hundred dollars, while a professional starter motor swap costs more.

Final Recommendation

Resolving a no-start condition on your vehicle requires a patient, step-by-step approach. Throughout my years of hands-on automotive diagnostics, I have found that jumping to conclusions or replacing parts blindly only leads to wasted money. Always begin by verifying your battery health and wire connections before moving on to fuel or sensor circuits. Keeping your electrical connections clean and performing routine maintenance will keep your family vehicle highly reliable on the road. If your troubleshooting points toward a complex immobilizer or computer fault, seeking help from an authorized service center is the safest choice to protect your vehicle’s electronic networks.

Ehatasamul Alom

Co-Founder, Owner, and CEO at RoadHybridBike – admin@roadhybridbike.com – Web

Ehatasamul Alom is a dedicated road hybrid bikes expert. With over 15 years of experience, he helps people find the perfect ride. He began his journey as a bike mechanic. He learned the ins and outs of every bike.

Ehatasamul Alom holds a Master's degree in Mechanical Engineering from a Brown University (Providence US 02912), where he specialized in material science and bicycle kinematics. His master's thesis focused on optimizing frame geometry for road hybrid bikes to improve rider comfort and efficiency.

Ehatasamul has an extensive professional background. He spent 10 years (2010-2020) as a Senior Bike Designer at "Urban Cycles," a leading bicycle manufacturer. In this role, he led the development of several award-winning road hybrid bikes, which are known for their durability and performance. He later served (2020-2024) as the Head of Product Development at "Gear Up," a company specializing in high-end cycling components. There, he developed innovative parts and accessories specifically for road hybrid bikes.

Over the years, Ehatasamul has become an authority on Roadhybridbikes. He understands their design and function. His work focuses on making bikes easy to use. Ehatasamul believes everyone should enjoy cycling. He writes guides that are simple to read. His passion for road hybrid bikes is clear. His goal is to share his knowledge with everyone. He wants to see more people on two wheels. His advice is always practical and easy to follow.

• Ehatasamul Alom



  July 17, 2026

  125cc vs. 140cc Dirt Bike: How to Choose a First Manual-Clutch Bike
• Ehatasamul Alom



  July 9, 2026

  Trek FX Sport 5 Not Starting? 5 Ways to Free Frozen Gears
• Ehatasamul Alom



  July 9, 2026

  Why Your Trek FX Sport 4 Not Starting: Simple Chain Link Fixes
• Ehatasamul Alom



  July 9, 2026

  Trek FX 2 Disc Gen 4 Not Starting? 5 Ways to Free Your Gears
