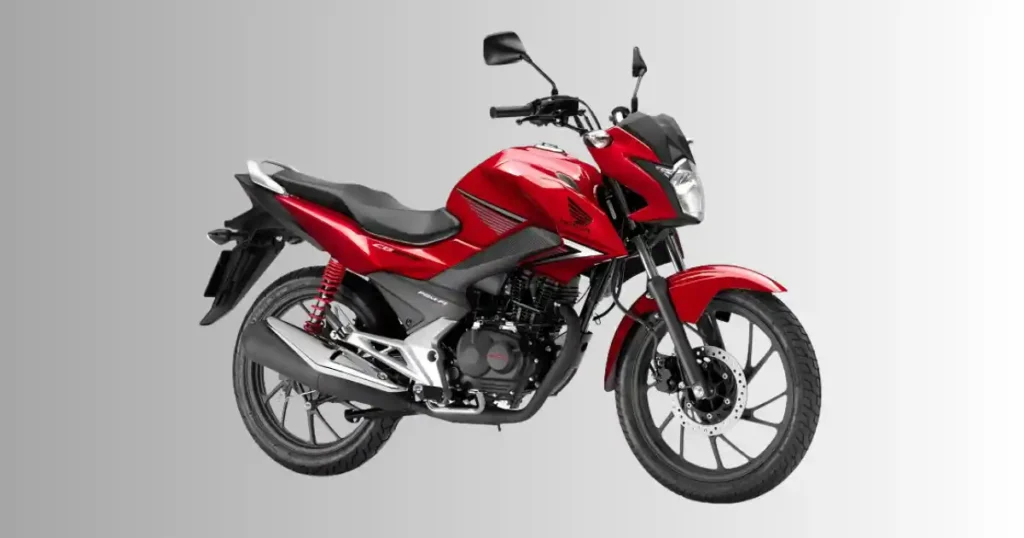

Why Your Honda CBF 125 Not Starting: Real Commuter Bike Fixes

Pushing your starter button only to hear a dead click is incredibly frustrating. A few winters ago during a freezing week in Nashville, Tennessee, a rider brought in a bike after trying to bump-start it for an hour. The fix was just a tiny turn of a loose ground screw under the tank. Minor electrical faults frequently mimic major engine failures on these commuter bikes. Before you pull your machine apart or spend hard-earned cash on a tow truck, let us walk through a clear diagnostic path. Finding the cause of your honda cbf 125 not starting issue is easy when you test instead of guess.

Honda CBF 125 Not Starting? Start With These Quick Checks

Fixing a bike that will not run does not require master mechanical skills. Most common issues come down to minor errors or loose connections that you can fix in your own garage.

What Happens When You Press the Starter?

• No response at all: The instrument panel stays pitch black, and the bike makes zero noise when you hit the button.
• Single clicking sound: You hear one solid click near the battery box, but the motor refuses to spin.
• Rapid clicking: A loud metallic chattering sound echoes from under the seat area as you press the switch.
• Engine cranks but won’t fire: The starting motor turns the crankshaft vigorously, yet the engine never catches life.
• Starts then stalls: The motor fires up for a brief brief second but dies immediately when you crack the throttle.
• Slow engine cranking: The motor groans and turns over lazily, sounding tired and lacking necessary speed.
• FI warning light stays on: The amber fault lamp on your digital display remains steadily lit after key activation.
• Headlight dims while starting: your front light fades out almost completely the instant your thumb hits the button.

Five-Minute Pre-Diagnosis Checklist

• Check battery voltage: Use a simple meter to see if your power cell has enough energy stored inside.
• Confirm fuel level: Shake the bike gently and look inside the tank to ensure you have fresh petrol.
• Verify engine kill switch position: Ensure the red handlebar rocker switch is set down to the run icon.
• Make sure the side stand is up: Lift the metal stand fully to disengage the internal safety ignition cut-off switch.
• Pull in the clutch lever: Squeeze the left handlebar lever completely to bypass the safety interlock circuit.
• Check neutral indicator: Confirm the green light is glowing on your dash before attempting a crank.
• Listen for fuel pump priming: Listen closely for a soft two-second whirring buzz when you cycle the key.
• Inspect battery terminals: Look for loose lead bolts or white fuzzy corrosion build-up on the wire ends.

Signs You Should Stop Riding Immediately

• Burning electrical smell: A sharp plastic odor means your wires are shorting out and melting their casing.
• Smoke from wiring: Visible smoke means a serious short circuit that can cause a dangerous vehicle fire.
• Fuel leakage: Any wet spots under the tank or fuel lines mean you must turn off the key.
• Loud grinding from starter: Harsh internal crunching noises mean the starter gears are stripped or badly misaligned.
• Repeated fuse failure: If a fresh plastic fuse blows immediately after installation, a direct short is present.
• FI warning light remains illuminated: A constantly glowing or flashing light warns of a severe electronic system error.

How the Honda CBF 125 Starting System Works

Modern small motorcycles use an interconnected network of switches and modules to control power safely. Knowing how these components talk to each other makes troubleshooting much simpler.

Components of the Starting System

The core electrical path relies on a strong twelve-volt battery that feeds power directly to the main fuse block. When you turn the ignition key, energy flows directly to the Electronic Control Unit (ECU). The safety loop includes a side stand switch, a clutch switch, and a neutral switch to ensure the bike cannot crank while in gear. Pulling the clutch or shifting to neutral allows the handlebar starter switch to send a low-current signal to the starter relay.

This relay acts as a heavy-duty magnetic switch, closing its internal plates to connect battery power directly to the starter motor. On fuel-injected versions, the Programmed Fuel Injection (PGM-FI system) utilizes an electric fuel pump to send fuel to the fuel injector. An ignition coil amplifies voltage to feed a hot spark through the spark plug. Older global variants may use a standard mechanical carburetor instead of electronic components, but they still rely on an identical crankshaft position sensor to timing the spark.

Starting Sequence Explained

Turning the ignition key to the run position boots up the central ECU immediately. On modern variants, you will hear a clear humming sound as the electric fuel pump primes the lines to high pressure. The computer then double-checks all safety switches to ensure the machine is safe to start. Pushing the starter button activates the starter relay, which passes high current to turn the starter motor over.

As the starter motor rotates the flywheel, the crankshaft position sensor tracks engine speed and position. This data tells the ECU exactly when to trigger the fuel injector and fire the ignition coil. The fuel enters the combustion chamber, the spark plug ignites the atomized mist, and the engine fires up into a steady idle.

Most Common Reasons Your Honda CBF 125 Won’t Start

Let us look closely at the primary areas where these commuter machines fail. Keeping these common issues in mind will save you hours of diagnostic work.

Weak or Dead Battery

A depleted or faulty power source is the absolute most frequent reason for starting issues on this platform. Without steady voltage, modern electronic brains cannot initiate the starting sequence.

Common Symptoms

Your horn will sound faint, the turn signals will barely illuminate, and the digital clock might reset to twelve zero-zero every time you attempt a crank.

Battery Voltage Test

Attach your digital multimeter leads directly to the battery screws. A healthy resting motorcycle battery must read between twelve point eight and thirteen point zero volts with the key off.

Load Testing

Keep the meter leads attached while pressing the starter switch. If the voltage drops below ten volts during the crank, the battery lacks the internal capacity to hold a true load.

When Replacement Is Necessary

If a battery cannot climb above twelve point four volts after a long slow night on a smart charger, its internal lead plates are spent.

Dirty or Loose Battery Terminals

Sometimes a battery is in fine health, but road vibrations break the physical connection at the wire ends.

Corrosion Symptoms

You may notice that your instrument panel flickers over bumps, or the bike dies completely when you pull the front brake lever.

Cleaning Procedure

Undo the negative cable first, then open the positive side. Scrub the metal posts with warm water mixed with baking soda, dry thoroughly, and apply a dab of grease before tightening.

Faulty Starter Relay

The relay is the heavy electro-magnetic switch that routes high-amperage current down to the starting motor.

Clicking Without Cranking

If you hear a distinct sharp click from the frame area whenever you press the button, but the engine stays still, the relay internal contacts are likely burnt.

Relay Testing

Locate the component and bridge the two main copper screw terminals using an old insulated wrench. If the starter spins, the relay is bad and needs a mechanical swap.

Worn Starter Motor

The starting motor utilizes internal carbon blocks that wear down after thousands of starting cycles.

Slow Engine Cranking

As the internal brushes wear away, the motor draws massive current but turns the engine over with a slow, heavy groaning sound.

Starter Inspection

Give the outer starter metal body a soft tap with a plastic mallet while holding the starter button. If it suddenly springs to life, the internal brushes are worn.

Fuel Delivery Problems

An engine cannot fire without a precise, pressurized supply of fresh gasoline entering the intake tract.

Fuel Pump Failure

If turning the ignition key produces total silence under the tank, your fuel pump is not spinning. Check its fuse before buying a new assembly.

Blocked Fuel Line

A kinked or pinched rubber fuel line completely starves the engine. Trace the line from the tank down to the throttle body to check for sharp bends.

Dirty Fuel Filter

A filter choked with rust flakes from an old fuel tank blocks fuel volume, causing the bike to sputter and die under throttle load.

Injector Problems (FI Models)

Small varnish deposits can easily clog the tiny holes in a fuel injector nozzle, preventing it from spraying an easily ignitable mist.

Carburetor Issues (Older Models)

On older non-FI bikes, stale fuel left inside the float bowl turns into sticky green varnish, plugging up the main jet and pilot jet passages completely.

Bad Spark Plug

The spark plug lives inside the hot combustion chamber and acts as the direct ignition source for the fuel.

Carbon Fouling

Frequent short trips prevent the plug from cleaning itself, leaving a thick layer of black carbon that shorts out the high-voltage electrical path.

Oil Fouling

Worn valve stem seals or weak piston rings let engine oil seep onto the plug tip, coating it in wet sludge that stops the spark completely.

Incorrect Gap

If the distance between the center electrode and ground strap is too wide or too narrow, the ignition spark will be weak, causing hard starting.

Ignition Coil Failure

The ignition coil is a transformer that turns low battery voltage into high-voltage power for the spark plug.

Weak Spark

A failing coil breaks down internally when it gets warm, producing a faint orange spark that cannot ignite the compressed fuel mixture inside the cylinder.

Coil Testing

Set your digital meter to ohms and measure the resistance across the primary input wires and the main spark plug lead wire. Compare with the shop manual.

Side Stand or Clutch Switch Problems

Safety switches are highly exposed to dirt, rain, and chain lube, making them common failure points on daily commuters.

Safety Switch Diagnosis

If your bike starts in neutral but dies instantly when you pull the clutch and click it into first gear, your side stand switch is stuck open.

ECU or Sensor Problems

The electronic control unit manages the fuel and ignition timing based on inputs from various engine sensors.

FI Warning Light

When a major sensor breaks down, the dashboard light will blink out a code. Count the flashes to find out which circuit is failing.

Crank Position Sensor

If this sensor fails to send a signal, the ECU does not know the engine is turning over and will refuse to supply any spark or fuel.

Blown Fuse or Wiring Damage

Fuses act as safety guards for your electrical system, blowing apart to protect expensive modules from high-current shorts.

Main Fuse Inspection

Locate the primary fuse block near the starter relay. Pull the main fuse out and check the internal wire link. If it is broken, install a fresh fuse.

Ground Connections

A loose or rusty main ground bolt on the engine case interrupts the entire electrical return path, leading to strange, erratic electrical behavior.

Honda CBF 125 Cranks but Won’t Start

When the starter turns the engine over at normal speed but the motor refuses to fire up, you can stop worrying about your battery. The issue is a lack of spark, fuel, or compression.

Check Spark Quality

Remove the spark plug cap from the engine. Use a proper spark plug socket to unscrew the plug, then pop it back inside the rubber cap. Hold the metal threaded body firmly against a clean bolt on the engine block. Crank the engine while watching the tip closely. You want to see a bright, snappy blue spark. A weak yellow spark or no spark at all indicates a fault in your ignition coil, wire, or plug.

Test Fuel Delivery

If the spark looks strong, move on to checking the fuel system. On older carbureted models, loosen the tiny drain screw at the bottom of the float bowl to see if fresh petrol flows out. For fuel-injected bikes, pull the main line off the throttle body and cycle the key briefly into a clean container. A healthy stream confirms fuel is moving through the lines.

Listen for Fuel Pump Operation

Find a quiet spot away from traffic noise. Turn your ignition key to the run position while keeping your ear near the base of the petrol tank. You should hear a distinct, clear two-second whirring sound as the pump builds line pressure. Total silence means you need to look for a blown fuel system fuse or a disconnected wire plug under the tank shroud.

Inspect Injector or Carburetor

A dry spark plug after minutes of continuous cranking tells you that fuel is not entering the cylinder. For an injection model, unbolt the injector from the intake port while leaving its lines attached. Tap the starter button briefly to verify it sprays a fine, cone-shaped mist. If it drips or stays bone dry, the nozzle is completely clogged.

Compression Test

An engine cannot combust fuel if it cannot trap and squeeze the air mixture inside the cylinder. Thread a standard compression tester gauge tightly into the empty spark plug port. Twist the handlebar throttle wide open and crank the motor for five seconds. A very low reading indicates tight valve clearances, worn piston rings, or a leaking head gasket.

Air Filter Inspection

Engines need a free flow of clean air to match the fuel delivery. Remove the plastic side panel and open the air box cover to inspect the pleated paper element. If the filter is choked with thick dust, leaves, or engine oil blowout, it will suffocate the engine. Try starting the bike with the filter out to see if it fires up.

Honda CBF 125 Starts Then Stalls

This symptom shows that your primary starting paths are working fine, but the engine cannot stabilize its air and fuel balance once running.

Low Fuel Pressure

A failing fuel pump might manage to build enough pressure to start the bike initially. However, once the motor runs, the pump fails to keep up with continuous demand, causing the line pressure to drop rapidly and starve the fuel injector.

Dirty Injector

A partially clogged nozzle might allow a tiny bit of fuel to seep through while cranking. Once the engine fires and expects a precise, fast pulse of fuel to maintain idle speed, the restricted flow causes the mixture to run lean and stall out.

Carburetor Idle Circuit

On older carbureted models, the tiny pilot jet manages fuel delivery when the throttle is closed. If a small speck of dirt or fuel varnish plugs this micro-passage, the bike will start with the choke on but die the instant you try to idle normally.

Vacuum Leak

Any unmetered air entering the engine behind the throttle body alters the precise air-to-fuel ratio. Inspect the rubber intake manifold boot for fine cracks or loose hose clamps. A tiny tear draws in extra air, making the mixture too lean to sustain a steady idle.

ECU Sensor Fault

The computer relies heavily on data from the Engine Coolant Temperature sensor and the intake air sensor. If a sensor reports false information, the ECU might pull back the fuel mixture too early before the metal engine components have warmed up to operating temperature.

Honda CBF 125 Won’t Start After Sitting

Leaving a motorcycle parked unused for several months without proper preparation often results in reliable starting problems when you finally try to ride.

Battery Self-Discharge

Lead-acid batteries naturally lose their electrical charge over time when left sitting idle. Modern fuel-injected bikes also draw a tiny amount of continuous power for the ECU memory, which can drain a healthy battery down to a completely dead state in less than a month.

Stale Fuel

Modern pump gasoline starts to degrade and lose its volatile properties in as little as thirty days. The volatile elements evaporate away, leaving behind a stale, heavy liquid that resists spark ignition and smells like old household varnish or paint thinner.

Injector Deposits

As old fuel evaporates inside the warm tip of a fuel injector, it leaves behind hard lacquer deposits. These microscopic blockages stop the injector from atomizing fuel properly, leading to extended cranking sessions and dry spark plugs.

Carburetor Varnish

When a carbureted bike sits, the fuel inside the float bowl dries up completely. This evaporation leaves a sticky green coating that plugs up the fuel jets, sticking the float needle valve shut and stopping fuel flow.

Rodent Wiring Damage

Motorcycles stored in sheds or barns make cozy nesting spots for small rodents. Mice and rats frequently chew through the soft soy-based wire insulation on the main harness, severing vital sensor connections or causing direct short circuits against the metal frame.

Honda CBF 125 Won’t Start After Rain

Water is an excellent electrical conductor that can quickly disrupt sensitive ignition paths when it gets into places it does not belong.

Wet Spark Plug Cap

Heavy downpours or high-pressure bike washing can easily force water deep inside the rubber spark plug boot. The high-voltage ignition current will take the easiest path, leaping through the moisture to the engine head instead of firing across the plug gap.

Moisture Inside Connectors

If the weather seals on your main wiring harness plugs are old or cracked, rainwater can seep into the metal pins. This creates temporary short circuits between separate wire lines, confusing the electronic brain and shutting down the ignition system.

Corroded Starter Relay

When a starter relay is exposed to continuous wet weather, moisture can penetrate its plastic casing. This causes the internal copper plates to rust and pit, preventing the relay from closing completely when you press the starter button.

Water in Ignition Switch

Rainwater can drain straight down into the key slot of your ignition switch. This moisture corrodes the internal copper contact plates over time, cutting off the main power supply from the battery to the starter button circuit.

Step-by-Step Honda CBF 125 No-Start Diagnosis

Professional motorcycle mechanics follow an exact, logical testing sequence to find electrical faults quickly without wasting time. One Friday afternoon in Phoenix, Arizona, a rider was ready to purchase a costly new ECU online. A quick load test with a digital meter showed his battery was collapsing under load. Testing first always prevents these expensive mistakes.

Step 1 – Check Battery Voltage

Set your digital multimeter to the DC voltage scale. Touch the red meter lead to the positive battery screw and the black lead to the negative post. Note the static reading with the ignition key off. A fully charged battery must show a minimum of twelve point eight volts.

Step 2 – Perform Load Test

Keep your meter leads pressed firmly against the battery posts. Pull in the clutch lever and push the starter switch while watching the display. If the number plummets below ten volts while the engine tries to spin, your battery lacks the capacity to power the bike.

Step 3 – Inspect Battery Cables

Give both the thick red positive cable and black negative wire a firm physical wiggle with your hand. The metal loop ends must be clamped perfectly tight to the battery terminals. Clean away any white crusty oxidation using a wire brush and warm water.

Step 4 – Check Main Fuse

Locate the main plastic starter relay housing under the side panel. Pull the green thirty-amp blade fuse out of its holder. Look closely at the small metal link inside the transparent plastic body. If the link is melted or broken, install an identical spare fuse.

Step 5 – Listen for Fuel Pump

Turn the ignition key to the run position and flip the kill switch to on. Listen closely for a clear two-second buzzing sound from inside the fuel tank. If you hear absolute silence, you need to check the fuel pump relay circuit and wire plug under the seat shroud.

Step 6 – Test Spark

Remove the spark plug from the cylinder head using a dedicated spark socket. Insert the plug back into its rubber cap and hold the threaded base against a bare metal engine bolt. Hit the starter button and look for a bright, snappy blue arc across the gap.

Step 7 – Inspect Fuel System

If you have a strong spark but a bone-dry plug tip, fuel is not entering the cylinder. On carbureted bikes, open the bowl drain screw to check for water contamination. For fuel-injected models, check the quick-connect fuel line plug for steady flow.

Step 8 – Compression Test

Thread a mechanical compression tester gauge into the empty spark plug hole. Twist the throttle handlebar wide open and crank the motor using the starter button for five seconds. Ensure the gauge rises quickly to meet the factory specification outlined in your manual.

Step 9 – Scan ECU Codes (FI Models)

If your engine light is flashing on the dashboard, count the pattern of blinks. Long slow flashes represent tens, while quick blinks indicate single numbers. Add them together to determine the fault code, which will tell you exactly which sensor circuit is broken.

Honda CBF 125 Starting Problems Diagnostic Table

This summary table helps you connect your motorcycle symptoms to the most likely electrical or mechanical fault before you reach for your toolkit. Tracking down starting issues is much quicker when you group your observations clearly.

Understanding these common patterns saves hours of aimless troubleshooting in your garage.

Battery Voltage Reference Table

A digital multimeter provides an accurate picture of your battery health. Use these exact numbers to evaluate your power cell condition.

Always test voltage before deciding to buy a replacement battery.

Honda CBF 125 Troubleshooting by Symptom

Isolate starting faults efficiently by grouping your observations into clear categories. Focus only on the components related to your specific breakdown sign.

Maintenance Schedule That Prevents Starting Problems

Taking care of your motorcycle systematically prevents common breakdown situations before they leave you stranded on the side of the highway.

Battery Care

Check your battery terminal screws every few thousand kilometers to ensure they have not vibrated loose on rough roads. If you do a lot of short city commuting, place the bike on an automatic smart charger once a month to top off the charge level.

Spark Plug Replacement

Unscrew your spark plug every four thousand kilometers to check the electrode gap and clean away any minor carbon deposits. It is best practice to replace the spark plug completely every eight thousand kilometers to ensure reliable starting performance.

Fuel System Maintenance

Avoid letting your motorcycle sit with a nearly empty petrol tank, as temperature changes cause condensation that leaves water in your fuel. Clean older carburetor float bowls annually, and use a quality fuel additive to keep fuel injection nozzles free of varnish.

Air Filter Service

Open your air box assembly during every regular oil change to check the state of the air filter. Tap out any loose dust or replace the paper element completely if it looks dark or oil-soaked, ensuring the engine can breathe freely.

Chain and Electrical Inspection

Keep your side stand pivot point clean and lubricated with light oil. This prevents road grime from sticking the safety switch plunger open, which can accidentally cut off your ignition power when you try to ride away.

Seasonal Storage Tips

If you plan to store your bike for the winter, fill the tank completely and add a quality fuel stabilizer. Remove the battery from the chassis and keep it stored in a warm spot connected to an automatic trickle charger to prevent cell damage.

Essential Tools for Diagnosing Honda CBF 125 Starting Issues

You do not need a professional workshop setup to handle common electrical troubleshooting on your bike. A few basic tools will allow you to diagnose almost any starting issue.

Recommended Workshop Tools

• Digital multimeter: Used to check battery voltages, trace wire continuity, and verify sensor resistances.
• Battery charger: A dedicated low-amp smart charger safely maintains your battery health during storage.
• Battery load tester: Simulates high starting current to reveal bad battery cells that voltage tests miss.
• Spark tester: Connects to your plug lead to let you safely observe your ignition spark quality.
• Compression tester: Screws into the spark plug port to measure the mechanical condition of your valves.
• Fuel pressure gauge: Plugs inline to confirm your electric fuel pump is meeting factory output specs.
• OBD diagnostic scanner: Connects to the diagnostic port on FI models to read stored fault codes.
• Electrical contact cleaner: A fast-drying spray that cleans grease, grime, and corrosion out of wire plugs.
• Basic socket set: A selection of metric sockets to remove body panels and engine bolts easily.
• Torque wrench: Ensures engine components like spark plugs are tightened exactly to factory specs.

Common Owner Mistakes

When your motorcycle refuses to start, it is easy to make quick assumptions that end up costing more money than necessary.

Ignoring the Battery

Many owners assume that because their headlight turns on, their battery must be perfectly fine. They waste hours pulling mechanical parts off the bike when the real issue is simply a weak battery that lacks the current to spin the starter motor.

Skipping Load Testing

A battery can show a perfectly normal resting voltage of twelve point seven volts on a basic meter. If you skip a proper load test while cranking, you will completely miss internal plate damage that causes the voltage to collapse under load.

Replacing the Starter Too Early

Buying a costly new starter motor before checking your basic wiring is a frequent mistake. Most quiet starters are caused by a bad starter relay, a blown fuse, or a loose green ground wire on the engine case.

Forgetting Safety Switches

The side stand and clutch interlock switches exist to protect you, but they fail regularly due to road dirt. Forgetting to clean and test these simple buttons can lead to looking for engine faults that do not exist.

Ignoring FI Warning Lights

The flashing amber light on your dash is trying to tell you exactly where the problem is. Trying to adjust mechanical settings while the computer is actively warning you of a sensor circuit fault is a waste of time.

Using Old Fuel

Leaving pump gasoline sitting inside your fuel tank for six months and expecting the bike to start up smoothly is unrealistic. Modern fuel degrades quickly and will plug up tiny injector nozzles or carburetor jets with sticky varnish.

Expert Advice From a U.S. Motorcycle Technician

Listening to the advice of experienced motorcycle workshop technicians can save you plenty of time and money when troubleshooting electrical issues.

“Nearly three out of four motorcycles that arrive with no-start complaints have battery, charging, or connection problems—not failed engines. Test every electrical circuit before replacing parts.” — Mike Reynolds, Motorcycle Service Technician, Texas

Why Professional Diagnosis Starts With Voltage

Modern electronic control units and fuel injection systems are highly sensitive to clean, stable electrical power. If your system voltage dips too low while the engine is cranking, the central computer module will shut down temporarily to protect itself. It cannot calculate fuel delivery pulses or ignition timing arcs under those weak conditions. Even if the starter motor manages to turn the crankshaft slowly, the engine will never fire up if the ECU lacks the power to manage the system.

A Real Workshop Story

On a busy Tuesday morning, a customer brought in a modern commuter bike, absolutely convinced that the main ECU had failed. The dashboard screen turned on fine, and the owner was certain the battery was completely healthy. We skipped the assumptions and connected a digital load tester directly to the battery screws. The moment we pressed the starter button, the system power dropped down to five volts due to a hidden broken bridge inside the battery case. Installing a fresh, fully charged battery solved the starting issue immediately, saving the customer from buying an expensive computer module they did not need.

When Should You Visit a Honda Dealer?

While most common starting faults can be diagnosed and fixed at home, certain complex electronic or mechanical situations require factory tools.

ECU Failure

If your central electronic control module has suffered internal hardware damage or lost its software programming, it must be replaced and synced using a proprietary factory system link.

Persistent FI Codes

When an amber fuel injection warning light stays on after you have replaced the suspected sensor, an internal wiring break deep inside the main harness loom is usually the cause.

Fuel Injector Replacement

Replacing a faulty fuel injector nozzle requires clean workshop conditions and proper digital calibration to ensure the new part matches the fuel map parameters stored in your ECU.

Wiring Harness Repairs

Fixing extensive wire damage caused by a rodent chew or a major frame short circuit requires professional splicing tools to prevent future resistance issues in sensitive data lines.

Low Engine Compression

If a compression gauge reveals that your cylinder cannot hold mechanical pressure, repairing worn piston rings or burnt valve seats requires deep engine teardown tools and precise measuring gear.

Honda CBF 125 Compared With Similar Honda Motorcycles

Many small-displacement Honda motorcycles use shared engineering concepts, meaning their starting systems and common faults are very closely related.

Honda CBF125 vs Honda CB125F

The newer CB125F features a redesigned, highly efficient engine with an updated electronic fuel injection layout. The CB125F uses a more compact fuel pump assembly that is less prone to fuel vapor lock during hot weather than the older CBF125 pump setup.

Honda CBF125 vs Honda SP125

The SP125 utilizes advanced silent start technology that integrates the starter motor directly into the alternator assembly. This setup completely eliminates the traditional starter relay and starter gears, meaning no-crank issues on the SP125 are almost always related to sensor errors rather than mechanical wear.

Honda CBF125 vs Honda Shine 125

The Shine 125 is a legendary global commuter that relied on a traditional mechanical carburetor for many model years. While the fuel injection models face electronic sensor issues, starting faults on a carbureted Shine are nearly always caused by dirty fuel jets or a sticky float valve inside the carburetor bowl.

Shared Starting Problems Across Honda 125cc Bikes

Across this entire commuter bike family, the most frequent mechanical issue remains safety switch failure caused by chain fling and road grime entering the exposed side stand switch housing. Regular cleaning of this lower pivot point keeps all these models starting reliably.

Frequently Asked Questions

Why is my Honda CBF 125 not starting?

The most frequent causes are a weak or dead battery, loose terminal connections, a blown main fuse, a stuck safety interlock switch, a fouled spark plug, or stale fuel blocking your fuel delivery system.

Why does my Honda CBF 125 only click when I press the starter?

A rapid clicking sound indicates that your battery charge is too low to spin the motor. A single loud click usually points to a faulty starter relay or a starter motor with worn internal carbon brushes.

Why does my Honda CBF 125 crank but never fire?

This shows that your starting mechanics are turning the engine fine, but the combustion chamber is missing either a strong electrical spark, a proper mix of fresh fuel, or sufficient cylinder compression.

Can a weak battery still power the lights but not start the bike?

Yes, your headlights and dash indicators require very little current to illuminate. Spinning the heavy internal components of an engine requires massive electrical amperage that a weak battery cannot provide.

What does the FI warning light mean?

The Fuel Injection light means your engine computer has detected an active electrical fault within a sensor circuit. The ECU flashes the light in specific patterns to help you identify the broken component.

How do I know if the starter relay is faulty?

If your battery is perfectly healthy and you hear a single click when pressing the button, bridge the two main relay terminals with an insulated tool. If the engine spins, your relay contacts are bad.

Why won’t my Honda CBF 125 start after winter storage?

The two most common reasons are a battery that has naturally self-discharged over the cold months, or modern fuel that has turned stale and gummed up your carburetor jets or fuel injector tip.

How much does it cost to repair a Honda CBF 125 that won’t start?

Simple repairs like tightening a loose battery cable bolt cost nothing at all. A fresh spark plug or replacement fuse is very inexpensive, while a new fuel pump or ECU module will require a larger financial budget.

Final Recommendation

Dealing with a non-starting motorcycle is a common experience that every rider encounters eventually. In my years of working on these machines, I have found that rushing to replace components before testing is the easiest way to waste time and money. Always start by verifying your battery health with a proper load test, as it is the foundation of the entire fuel injection system. Clean your safety switches regularly and keep your fuel fresh. If a basic systematic inspection does not solve the issue, do not hesitate to contact an authorized service center for an electronic scan. Taking care of small electrical details ensures your machine stays dependable for every journey.

Ehatasamul Alom

Co-Founder, Owner, and CEO at RoadHybridBike – admin@roadhybridbike.com – Web

Ehatasamul Alom is a dedicated road hybrid bikes expert. With over 15 years of experience, he helps people find the perfect ride. He began his journey as a bike mechanic. He learned the ins and outs of every bike.

Ehatasamul Alom holds a Master's degree in Mechanical Engineering from a Brown University (Providence US 02912), where he specialized in material science and bicycle kinematics. His master's thesis focused on optimizing frame geometry for road hybrid bikes to improve rider comfort and efficiency.

Ehatasamul has an extensive professional background. He spent 10 years (2010-2020) as a Senior Bike Designer at "Urban Cycles," a leading bicycle manufacturer. In this role, he led the development of several award-winning road hybrid bikes, which are known for their durability and performance. He later served (2020-2024) as the Head of Product Development at "Gear Up," a company specializing in high-end cycling components. There, he developed innovative parts and accessories specifically for road hybrid bikes.

Over the years, Ehatasamul has become an authority on Roadhybridbikes. He understands their design and function. His work focuses on making bikes easy to use. Ehatasamul believes everyone should enjoy cycling. He writes guides that are simple to read. His passion for road hybrid bikes is clear. His goal is to share his knowledge with everyone. He wants to see more people on two wheels. His advice is always practical and easy to follow.

• Ehatasamul Alom



  July 17, 2026

  125cc vs. 140cc Dirt Bike: How to Choose a First Manual-Clutch Bike
• Ehatasamul Alom



  July 9, 2026

  Trek FX Sport 5 Not Starting? 5 Ways to Free Frozen Gears
• Ehatasamul Alom



  July 9, 2026

  Why Your Trek FX Sport 4 Not Starting: Simple Chain Link Fixes
• Ehatasamul Alom



  July 9, 2026

  Trek FX 2 Disc Gen 4 Not Starting? 5 Ways to Free Your Gears
