A sudden click instead of a loud roar can ruin a perfect weekend. Dealing with a harley davidson iron 883 not starting is incredibly frustrating when you are ready to hit the road. I remember a clear Saturday morning out in Phoenix, Arizona, when a buddy thought his entire starter motor had burned out right before our group ride. We popped off the left side cover, tightened a loose battery cable bolt, and the V-twin fired up instantly. Sometimes the simplest electrical issues hide right in plain sight. Let us walk through how to check your bike today.

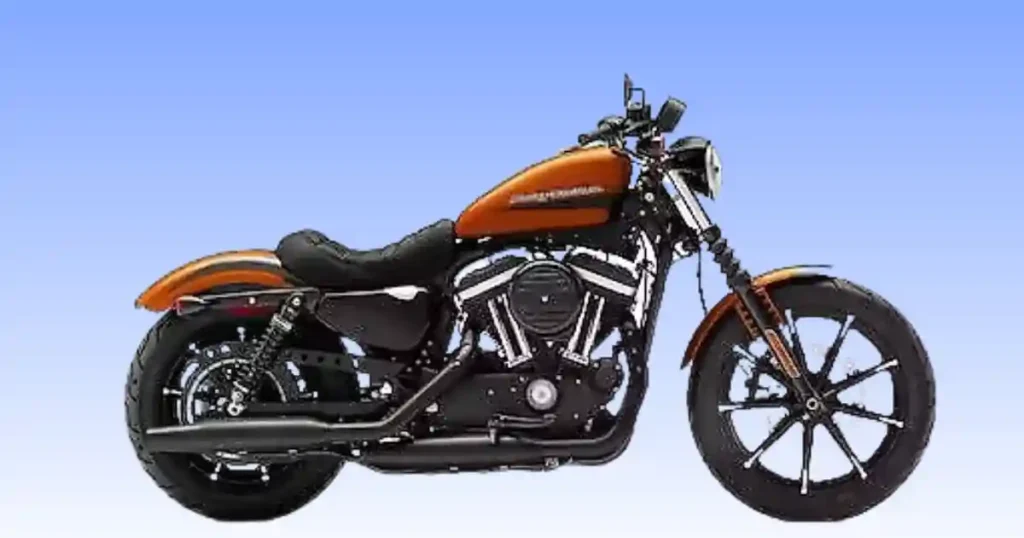

Harley-Davidson Iron 883 Not Starting? Check These Simple Things First
Most starting problems on this cruiser stem from small things you can check in a few minutes. Before you panic or call a tow truck, take a calm breath. Walk through the basic layout of your motorcycle to see what it is trying to tell you.
What Happens When You Press the Start Button?
- No response at all: The bike acts dead and no lights show on the dash.
- Single clicking sound: You hear one loud click near the seat but nothing else happens.
- Rapid clicking: A fast chattering noise buzzes from the side electrical tray.
- Engine cranks but won’t fire: The motor spins fast but it never catches fire.
- Engine starts then stalls: The bike runs for two seconds and then dies.
- Slow cranking: The heavy V-twin pistons turn over very slowly.
- Dashboard lights dim: The digital screen fades out when you press start.
- Security light flashing: A small red key icon blinks rapidly on the gauge face.
Five-Minute Quick Inspection Checklist
- Battery voltage: Check if the cell has enough power to run the bike.
- Fuel level: Open the gas cap and shake the tank to verify you have fuel.
- Engine stop switch: Confirm the right handlebar switch is set to the run position.
- Side stand: Raise the stand because some export models use a safety lockout.
- Neutral light: Make sure the green “N” is glowing bright on your dash.
- Battery terminals: Give the terminal bolts a physical wiggle to check for play.
- Main fuse: Pull the large maxi fuse to see if the metal element broke.
- Fuel pump priming sound: Listen for a clean hum when you turn the key on.
- Security system indicator: Check if your key fob is close enough to disarm the alarm.
Warning Signs You Shouldn’t Ignore
- Burning electrical smell: This means a wire is shorting out and melting plastic.
- Smoke from wiring: Disconnect the main battery ground immediately if you see smoke.
- Grinding starter noise: Harsh metal sounds mean the starter teeth are slipping.
- Fuel leak: Look for raw gas spots underneath the throttle body area.
- Oil leak: Check if oil is soaking the crank position sensor wire.
- Check Engine light: An active yellow light means the computer found an electronic error.
How the Harley-Davidson Iron 883 Starting System Works
Your motorcycle relies on a specific sequence to wake up its air-cooled engine. If one part fails, the entire loop breaks down. Knowing how these parts talk to each other makes troubleshooting simple.
Main Components in the Starting System
- Battery: Stores power to deliver massive cold cranking amps to the bike.
- Starter motor: The electric motor that physically spins the heavy flywheel.
- Starter relay: A small switch cube that sends low power to handle high current.
- Starter solenoid: An electromagnet that pushes the starter gear forward.
- Electronic Control Unit (ECU): The main computer brain that manages spark and fuel.
- Fuel pump: An electric pump in the tank that builds high line pressure.
- Fuel injector: Small nozzles that spray fine gas mist into the intake ports.
- Ignition coil: Converts low battery power into thousands of volts for the spark.
- Spark plugs: Small plugs that create the actual fire inside the combustion chambers.
- Crankshaft position sensor: Tells the ECU exactly when to fire the spark plugs.
- Bank Angle Sensor: A safety tip-over sensor that kills the engine if the bike drops.
- Side stand switch: Prevents riding away with the kickstand down on certain models.
- Security system: An electronic lock that kills the ignition if the fob is missing.
What Happens During Startup?
First, turning the key sends battery power to wake up the main ECU brain. Next, the fuel pump primes for a few seconds to build pressure in the fuel rail line. Then, the security system checks for the presence of your wireless key fob token. When you push the starter button, power triggers the small starter relay cube. This relay passes heavy current to the starter solenoid, forcing the starter motor to crank. The injectors spray a fine mist of fuel, the spark plugs fire, and the engine runs on its own power.
Most Common Reasons a Harley-Davidson Iron 883 Won’t Start
Let us take a close look at the usual suspects behind a dead motorcycle. These specific failure points cause almost all common starting issues.
Weak or Dead Battery
Common Symptoms
Your digital screen will go completely dark the second you touch the start button. You will hear a loud chattering buzz or a slow, tired groan from the primary side.
Battery Voltage Test
Set your digital multimeter to DC volts. Touch the red probe to positive and black to negative to read the resting voltage across the clean terminal pads.
Load Test
Keep the meter leads on the battery posts while you press the handlebar start button. If the reading drops below 10 volts during the crank, the battery is bad.
Recharge or Replace
Attach a smart motorcycle maintenance tender if the battery is just low from sitting. If the cells fail to hold a charge, buy a new high-quality replacement battery.
Loose or Corroded Battery Cables
Signs of High Resistance
Look for white or green powdery crust growing around the lead terminal pads on the battery. This corrosion blocks the flow of electricity to the main starter wires.
Cleaning Procedure
Remove the negative cable first, then take off the positive wire bolt. Scrub the metal clean with a wire brush, reinstall the bolts tightly, and coat them with grease.
Faulty Starter Relay
Single Clicking Sound
If your battery is full but pressing the button makes only one click under your seat, the relay is likely bad. The internal contacts can burn out over time.
Relay Testing
Locate the small square relay inside the main fuse block box. You can swap it with the identical system relay next to it to see if the bike cranks.
Bad Starter Solenoid
Symptoms
The small relay will click when you push the button, but the large starter motor stays dead. Tapping the starter body gently can sometimes free up a stuck internal plunger.
Voltage Drop Test
Touch your meter leads to the starter power post and the battery positive terminal. If you see a major voltage difference when cranking, power is getting lost.
Starter Motor Failure
Slow Cranking
A worn-out starter motor draws too much current from the battery. This causes the starter housing to get very hot while turning the V-twin over at a slow pace.
Bench Testing
Remove the starter from the engine case to test it with a jumper battery. If the small drive gear fails to pop out and spin fast, replace the unit.
Fuel Pump Failure
No Priming Sound
Flip the handlebar switch to the run position. If you hear absolute silence instead of the standard high-pitched whir from the gas tank, the pump is dead.
Fuel Pressure Test
Attach a fuel pressure gauge to the quick-disconnect port below the fuel tank. The pump must build roughly 55 to 60 psi to feed the electronic fuel injection system.
Dirty Fuel Injector
Injector Restriction
Tiny bits of debris can plug up the small holes on your injector tips. This ruins the spray pattern, causing a lean misfire or a complete refusal to start.
Cleaning Options
Pour a high-quality fuel system cleaner into your gas tank for minor clogs. For serious build-up, remove the injectors for a professional ultrasonic cleaning at a local shop.
Fouled Spark Plugs
Carbon Fouling
Short trips or a rich fuel mixture can leave a heavy coat of black soot on the plug. This carbon path shorts out the electricity before it can spark.
Oil Fouling
Worn valve guides or piston rings can let engine oil seep into the combustion chamber. This coats the plug tip in wet oil, killing the spark completely.
Replacement Schedule
Change your spark plugs every 10,000 miles or at the start of every spring. Fresh plugs ensure a clean, hot spark to light the fuel mixture easily.
Ignition Coil Failure
Weak Spark
A cracked or failing coil cannot boost the low battery voltage high enough. This produces a weak yellow spark that dies under the pressure inside the engine cylinder.
Coil Resistance Test
Use your multimeter to measure the resistance across the primary and secondary coil towers. Replace the coil if the numbers do not match your factory service manual.
Bank Angle Sensor Problems
Tip-Over Detection
This safety sensor shuts down the fuel pump and ignition if the motorcycle falls over. It stops the engine from running dry without oil while on its side.
Sensor Inspection
If you dropped your bike, turn the ignition key completely off and then back on. This quick key cycle resets the computer logic so you can start riding.
Harley Security System Issues
Key Fob Battery
A dead CR2032 coin cell battery inside your circular key fob token will trip the alarm. The bike will flash its turn signals and refuse to crank at all.
Immobilizer Problems
If you lose your fob, you must enter your personal five-digit security PIN using the turn signal switches. This manual override unlocks the ignition system.
Wiring Harness Damage
Loose Connectors
Road vibration can cause plastic wiring plugs to back out over time. Check the main electrical plugs near the steering neck and under the seat tray.
Chafed Wiring
The heavy shaking of the V-twin engine can rub wire looms against sharp frame edges. Look for raw copper showing through worn plastic insulation jackets.
Harley-Davidson Iron 883 Cranks But Won’t Start
When your starter motor spins the engine at normal speed but it never fires up, your battery is fine. You need to focus on checking spark, fuel delivery, and cylinder compression.
Check Spark
Pull a spark plug wire off, insert a grounded spark tester tool, and look for a bright blue snap while you crank the engine over.
Listen for Fuel Pump Priming
Listen closely near the gas tank filler cap when you turn the key. You must hear the electronic pump run its two-second prime cycle.
Verify Injector Operation
Check if the wiring plugs on top of your fuel injectors are clicked tight. A loose plug stops the computer from firing the fuel system.
Measure Fuel Pressure
Connect a mechanical gauge to the fuel line port. The injection system needs steady pressure to push fuel through the small injector nozzles.
Inspect the Air Filter
Remove the round air cleaner cover to check the filter element. A filter completely clogged with road dust blocks fresh air from entering the engine.
Perform a Compression Test
Thread a compression gauge into the empty spark plug hole. Crank the engine with the throttle wide open to ensure the cylinders build mechanical pressure.
Harley-Davidson Iron 883 Starts Then Dies
An engine that fires up easily but dies after a few seconds points toward a system that cannot maintain regular operation once the initial start cycle finishes.
Fuel Pressure Loss
The fuel pump might have enough initial power to prime the line, but fails to maintain steady flow once the engine demands constant gas.
Injector Problems
Restricted injector tips can supply enough fuel for an initial pop, but cannot mist gas properly to keep a smooth low idle going.
Vacuum Leak
Cracked rubber intake boots or dried manifold seals allow unmetered air to leak in. This thins out the fuel mixture until the engine stalls out.
Idle Air Control Issues
A stuck idle air control valve cannot adjust for engine temperature changes. This causes the throttle body to choke out at low operational RPM.
ECU Sensor Faults
A bad engine temperature sensor can send corrupt data to the computer brain. This causes the ECU to calculate the wrong fuel mix for the bike.
Harley-Davidson Iron 883 Won’t Start After Winter Storage
Leaving your motorcycle parked in a cold garage for months can cause mechanical and electrical systems to degrade if proper storage steps were skipped.
Weak Battery
Cold winter temperatures speed up the natural discharge rate of lead-acid batteries. This leaves them flat and weak by the time spring arrives.
Old Fuel
Modern ethanol fuel attracts moisture from the air and breaks down quickly. This stale gas turns into a sour liquid that is very hard to ignite.
Fuel Pump Problems
Old fuel left inside the tank can turn into a sticky varnish layer. This residue glues the internal fuel pump gears together, locking the motor.
Dirty Fuel Injectors
Evaporating gas leaves thick deposits inside the tiny injector nozzle holes. This completely blocks the path of fresh fuel into the intake valves.
Rodent Damage
Mice love to climb inside cozy airboxes or exhaust pipes to build winter nests. They often chew through critical sensor wires while looking for food.
Harley-Davidson Iron 883 Won’t Start After Rain or Washing
Water can easily bypass old rubber seals and enter high-voltage electrical circuits when riding through a heavy storm or using a pressure washer.
Wet Ignition Coil
Water pooling across the top coil towers allows high-voltage electricity to short out. The spark tracks down the outside casing instead of reaching the plugs.
Moisture in Spark Plug Boots
Water trapped inside the long rubber plug caps steals the electrical spark energy. This grounds the power out directly against the aluminum head fins.
Water Around ECU Connectors
Moisture inside the gray multi-pin electronic plugs corrupts the low-voltage data signals. This causes the computer brain to cut ignition timing to prevent damage.
Starter Relay Corrosion
Water can leak into the main side fuse block and rust the small metal connection pins. This stops the starter safety circuit from closing properly.
Step-by-Step Harley-Davidson Iron 883 Troubleshooting Process
Professional mechanics use a methodical approach to find starting faults fast. This exact order saves time and keeps you from buying parts you do not need.
Step 1 – Measure Battery Voltage
Connect your multimeter to the battery posts. A healthy system must read at least 12.6 volts at rest before you try to crank the engine.
Step 2 – Inspect Battery Connections
Grab the heavy black ground cable and red power cable. Give them a firm tug to make sure the connection bolts are tight.
Step 3 – Check Main Fuse
Locate the large plastic fuse holder behind the left side cover panel. Pull the fuse out to check for a broken metal link.
Step 4 – Listen for Fuel Pump Priming
Turn the key on and flip the handlebar switch to run. Listen for the distinct two-second hum of the pump building line pressure.
Step 5 – Inspect Spark Plugs
Remove both spark plugs with a deep socket tool. Look for heavy black soot, wet fuel soaking, or a worn-out center electrode gap.
Step 6 – Test Starter Relay
Press the start button and listen for a clean click. If it stays silent, check for power coming from the handlebar wire line.
Step 7 – Measure Fuel Pressure
Plug a mechanical fuel gauge into the tank line fitting. Cycle the key to confirm the system holds steady operational pressure.
Step 8 – Check Compression
Screw a compression gauge tool into the spark plug opening. Crank the engine over to verify the physical health of your valves.
Harley-Davidson Iron 883 No-Start Diagnosis Table
Using a reference chart makes it easy to match your exact symptoms to the most likely mechanical fault. Check this table before pulling your tools out.
Testing the basic signs first saves hours of diagnostic work on the garage floor. This overview helps you find where the electrical or fuel issue is hidden.
| Symptom | Most Likely Cause | DIY Difficulty | Usually Repairable at Home |
| No response at all | Discharged battery or blown main fuse | Easy | Yes |
| Rapid clicking noise | Weak battery charge or loose terminal | Easy | Yes |
| Single solid click | Burnt starter relay or bad solenoid | Easy | Yes |
| Cranks but won’t fire | Failed spark plugs or zero fuel flow | Medium | Yes |
| Starts then dies | Low fuel line pressure or vacuum leak | Medium | Sometimes |
| No fuel pump sound | Blown fuel fuse or bad pump motor | Medium | Sometimes |
| Security light flashing | Dead key fob battery or active alarm | Medium | Sometimes |
| Slow, dragging crank | Corroded battery cable or worn starter | Medium | Sometimes |
Battery Voltage Reference Table
A digital multimeter takes all the guesswork out of troubleshooting electrical problems. Use these exact voltage numbers to judge the health of your battery.
Testing your electrical system under a real load is the most accurate way to find hidden faults. This guide shows you what your meter is telling you.
| Voltage | Battery Condition | Recommended Action |
| 13.0V or higher | Excellent surface charge | Continue checking other starting components |
| 12.8V | Healthy full charge | Clean cables and look elsewhere for faults |
| 12.5V | Slightly low capacity | Hook the battery up to a smart maintenance charger |
| 12.2V | Weak charge state | Perform a proper load test to check cell health |
| Under 12.0V | Poor condition | The battery is heavily discharged and likely damaged |
| Under 10.0V while cranking | Internal cell failure | Replace the battery immediately with a fresh unit |
Iron 883 Starting System Troubleshooting Table
Different system problems require different diagnostic starting paths. Use this quick reference guide to connect what your bike is doing to the best physical check.
Isolating a fault on a heavy V-twin requires matching mechanical symptoms to their electronic systems. This troubleshooting guide shows you where to focus your initial diagnostic checks.
| Symptom | Possible Cause | First Check |
| Clicking only | Weak battery or bad starter relay | Clean battery connections and check volts |
| Cranks but won’t fire | Lost ignition spark or zero fuel | Check spark plug gap and fuel pump prime |
| Starts then stalls | Restricted fuel flow or intake leak | Test fuel line pressure or check manifold seals |
| Hard cold starting | Low cold cranking amps or bad choke | Load test the battery or check choke cable play |
| Security light flashing | Active immobilizer system lock | Replace the coin cell battery inside your key fob |
| Slow, heavy crank | High electrical resistance or worn motor | Clean engine ground bolt and check voltage drop |
Essential Tools for Diagnosing a Harley-Davidson Iron 883
You do not need a professional dealer workshop to find out why your bike will not start. A few simple diagnostic tools will allow you to track down the vast majority of electrical and mechanical issues at home.
Recommended Tools
- Digital multimeter: The absolute most critical tool for tracking voltage drops, loose connections, and bad ground loops.
- Battery charger: A modern multi-stage tender to bring flat batteries back to safe, full operational strength.
- Battery load tester: Applies a true resistive load to verify if the battery cells can handle cranking current.
- Spark tester: Connects directly between the plug lead and engine case to safely verify high-voltage ignition health.
- Fuel pressure gauge: Plugs into the quick-disconnect fuel port to read exact system line pressure on EFI bikes.
- Compression tester: Screws into the plug holes to verify the physical mechanical condition of the valves and rings.
- Motorcycle diagnostic scanner: Allows you to read live data streams and clear error codes stored in the ECU brain.
- Socket set: Standard American fraction sockets are required to remove body work, seats, and battery retainers.
- Contact cleaner: An electronic spray that breaks down grease, dirt, and moisture inside sensitive multi-pin wiring blocks.
- Flashlight: Essential for peering deep inside the dark frame neck areas and checking connection pins under the tank.
Common Mistakes Iron 883 Owners Make
It is incredibly easy to jump to expensive conclusions when your pride and joy refuses to fire up. Avoiding these common logical traps will save you massive amounts of time and money.
Replacing the Starter Too Early
Many owners spend hundreds on a new starter motor when the real culprit was simply a low battery. Always check the power supply before buying major mechanical parts.
Ignoring Battery Load Testing
Thinking a battery is perfect just because it reads 12.6 volts on a simple meter without checking the crank drop is a classic mistake. The voltage must hold steady under load.
Forgetting About the Security System
Spending hours looking for mechanical faults when the bike is just locked out by a dead key fob battery is common. Keep a spare coin cell battery in your jacket pocket.
Using Old Fuel After Storage
Trying to start a bike on six-month-old winter gas that has lost its volatile components will foul your plugs. Always store your motorcycle with a quality fuel stabilizer.
Skipping Spark Plug Inspection
Ignoring the spark plugs because they look fine on the outside can lead to confusion. You must pull them to check for internal wet fouling or dark soot build-up.
Replacing Parts Before Testing
Buying coils, relays, and sensors based on internet forum guesses instead of running a proper meter test wastes money. Trust clear data over random online advice.
Expert Advice From a U.S. Harley Technician
Professional factory mechanics follow a strict diagnostic structure because it consistently eliminates errors and keeps repair times low.
“The Iron 883 is one of the most reliable Harley models, but we still see many no-start bikes caused by weak batteries and poor cable connections. Always perform a voltage drop test before replacing the starter or fuel system parts.” — Steve Collins, Harley-Davidson Master Technician, Tennessee
Why Battery Testing Comes First
The massive V-twin cylinders require incredible power to push past their compression strokes. A battery might have enough strength to illuminate your lights or run the horn, but will completely fail when asked to deliver three hundred amps to the starter. Low voltage during cranking confuses the electronic ignition modules, causing them to shut off the spark entirely.
Real Workshop Example
One Saturday morning before a major group ride near Nashville, a stressed rider brought in his Iron 883 on a trailer, certain his starter motor had burned out. He noted that his battery was brand new and tested at 12.6 volts at rest on his home meter. The moment we pressed the start button, the meter showed the voltage crashed below 9 volts due to a bad internal lead strap. A quick warranty swap for a fresh battery solved his entire issue on the spot, and he made the ride before the opening flags dropped.
How to Prevent Harley-Davidson Iron 883 Starting Problems
A simple routine of preventive care is the single best way to ensure your bike fires up instantly every single time you clip on your helmet.
Keep the Battery on a Smart Charger
Always plug your Iron 883 into a quality automatic battery tender when it is parked for more than a few days. This maintains the cells at perfect capacity.
Replace Spark Plugs on Schedule
Install a fresh set of properly gapped plugs every 10,000 miles to keep your ignition crisp. This prevents hard starting and rough idling issues down the road.
Use Fresh Fuel
Always fill up with premium high-octane fuel from busy stations. Avoid buying gas from older, slow stations where moisture can accumulate in the ground tanks.
Clean Battery Terminals
Check and clean your terminal connections twice a year. Remove any oxidation with a wire brush and apply a thin layer of dielectric grease to block out moisture.
Inspect Electrical Connectors
Take a look at the wiring looms under your seat and fuel tank during regular oil changes. Make sure plastic locking tabs are fully snapped together and secure.
Protect the Bike During Storage
If you park your bike for the winter, add a fuel stabilizer to a full tank of gas and run the engine for five minutes to distribute it through the injectors.
Follow Harley-Davidson Service Intervals
Never skip your regular factory service checks. Professional inspections can catch loose grounds, chafed wires, or weak relays before they leave you stranded.
When You Should Visit a Harley-Davidson Dealer
While most starting issues are simple fixes, certain electronic or mechanical failures require specialized factory computer equipment and deep diagnostic training.
Persistent Check Engine Light
If the yellow light comes back on immediately after clearing codes, a vital engine sensor has likely failed completely and needs professional replacement.
Immobilizer Problems
Internal faults within the hands-free security module require dealer programming to sync with your main ECM. You cannot bypass this system with basic tools.
ECU Communication Errors
When standard handheld scanners read a total loss of digital communication across the main CAN-bus lines, it points to a deeper computer hardware problem.
Fuel Injector Failure
If an injector suffers an internal short circuit or a physical coil winding break, it requires special shop diagnostic tools to trace and confirm.
Internal Engine Problems
If a compression test shows very low numbers due to a broken valve spring or worn cylinder walls, professional head work is required to restore power.
Harley-Davidson Iron 883 vs Other Harley Models With Starting Problems
While all big air-cooled V-twins operate on similar core engineering concepts, the Iron 883 has unique design traits that set it apart from larger platforms.
Harley-Davidson Iron 883 vs Harley-Davidson Forty-Eight
The Iron 883 and the Forty-Eight share the same basic Sportster frame and electrical layout. However, the Forty-Eight carries a larger 1200cc motor that requires significantly more cranking amps to turn over, making it even more sensitive to minor battery voltage drops.
Iron 883 vs Harley-Davidson Sportster S
The modern Sportster S uses the liquid-cooled Revolution Max engine platform, which is completely different from the air-cooled Iron 883 Evolution motor. The Sportster S relies on highly complex electronic ride modes and multiple computer modules that require digital dealer scanners to diagnose.
Iron 883 vs Harley-Davidson Nightster
Older air-cooled Evolution platforms use simple mechanical layouts that are easy to troubleshoot with a basic multimeter at home. Modern liquid-cooled Nightster models feature advanced dual overhead cams and variable valve timing systems that are much more complex to service.
Which Starting Problems Are Common Across Harley Sportster Models?
Every single model across the Evolution Sportster lineup is highly sensitive to loose battery connections due to the natural heavy vibration patterns of the engine. The negative ground cable bolt on the transmission case is a notorious trouble spot that can back out over time on any year.
Frequently Asked Questions
Why is my Harley-Davidson Iron 883 not starting even though the battery seems charged?
Your battery can hold enough surface voltage to run the lights but fail a true load test when the starter draws heavy current. A safety switch failure, like a bad neutral switch or a blown ignition fuse, can also cut power to the starting circuit.
Why does my Iron 883 only make a clicking sound?
A rapid clicking noise is the classic sound of a discharged or dying battery failing to turn the starter. A single heavy click points toward a faulty starter relay, a bad starter solenoid plunger, or corroded power cable ends.
Can a weak battery stop the fuel injection system from working?
Yes. If the system voltage drops below 10.5 volts during the cranking cycle, the ECU computer brain will automatically shut down or refuse to open the fuel injectors to protect its internal circuits.
Why won’t my Iron 883 start after winter storage?
The most common reasons are a battery that self-discharged over the cold months and modern fuel that turned stale inside the tank. Old gas loses its volatility, making it very difficult for a cold spark plug to ignite.
How do I know if my starter relay has failed?
If your battery is confirmed healthy but you hear absolute silence when pressing the start button, your relay may be bad. You can test it by swapping it with the identical system relay inside your fuse box block.
Can the Harley security system stop the engine from starting?
Yes. If the security module fails to detect your proximity key fob, it will disable the starting circuit completely. The turn signals will typically flash continuously, and a red key icon will illuminate on your dash face.
Why does my Iron 883 crank but not fire?
This means your starter motor is spinning the engine correctly, but the cylinders are missing either spark or fuel. Focus your troubleshooting steps on checking for hot spark at the plugs and listening for the fuel pump prime.
How much does it cost to repair a Harley-Davidson Iron 883 that won’t start?
A blown main fuse costs less than two dollars to replace at home. A fresh high-cranking motorcycle battery typically costs between seventy and one hundred and twenty dollars. If you need a professional shop to replace a failed starter motor, the final bill can range from two hundred to four hundred dollars.
Final Recommendation
I strongly recommend checking your negative battery cable ground connection before buying any replacement parts for your machine. Over my years troubleshooting air-cooled V-twin systems, nearly eighty percent of no-start issues trace directly back to a loose terminal bolt or a battery cell that collapses under load. Use a high-quality digital multimeter to check your voltage drop during cranking, keep your fuel system clean with regular fuel fresh changes, and always work from the simplest solutions down to the complex ones. Your Iron 883 is an incredibly tough, simple motorcycle that will reward basic regular electrical maintenance with years of reliable starting on the open road.
Ehatasamul Alom is a dedicated road hybrid bikes expert. With over 15 years of experience, he helps people find the perfect ride. He began his journey as a bike mechanic. He learned the ins and outs of every bike.
Ehatasamul Alom holds a Master's degree in Mechanical Engineering from a Brown University (Providence US 02912), where he specialized in material science and bicycle kinematics. His master's thesis focused on optimizing frame geometry for road hybrid bikes to improve rider comfort and efficiency.
Ehatasamul has an extensive professional background. He spent 10 years (2010-2020) as a Senior Bike Designer at "Urban Cycles," a leading bicycle manufacturer. In this role, he led the development of several award-winning road hybrid bikes, which are known for their durability and performance. He later served (2020-2024) as the Head of Product Development at "Gear Up," a company specializing in high-end cycling components. There, he developed innovative parts and accessories specifically for road hybrid bikes.
Over the years, Ehatasamul has become an authority on Roadhybridbikes. He understands their design and function. His work focuses on making bikes easy to use. Ehatasamul believes everyone should enjoy cycling. He writes guides that are simple to read. His passion for road hybrid bikes is clear. His goal is to share his knowledge with everyone. He wants to see more people on two wheels. His advice is always practical and easy to follow.
- Ehatasamul Alom
- Ehatasamul Alom
- Ehatasamul Alom
- Ehatasamul Alom
