Driving a Jeep Wrangler through North Brunswick, NJ, puts heavy demands on your engine’s accessory drive. An Aramid Reinforced Serpentine Belt uses strong synthetic cords to spin your alternator, water pump, and power steering pump without slipping. These tough synthetic fibers handle high heat and sudden engine loads far better than standard cords.
On my own Wrangler, swapping to a premium belt stopped the annoying chirps during cold morning starts. Finding the right Jeep Wrangler aramid drive belt requires matching your exact engine, year, and air conditioning setup.

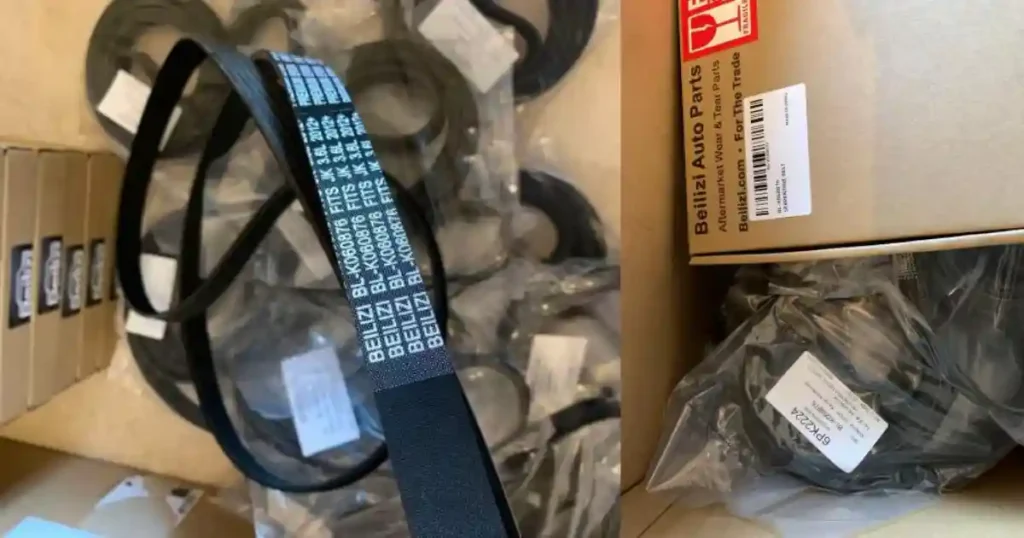

What Is an Aramid Reinforced Serpentine Belt?
How a serpentine belt works
A serpentine belt is a long, continuous rubber belt that powers key engine systems. It snakes around several pulleys to turn your alternator, water pump, power steering pump, and air conditioning compressor. The engine crankshaft turns the belt, which transfers movement to each accessory. A spring-loaded tensioner keeps constant pressure on the belt so it does not slip during quick acceleration.
What aramid reinforcement means
Aramid reinforcement means the belt uses strong synthetic aramid fibers inside its rubber body. The inner cords carry the physical pull, while the outer EPDM rubber grips the metal pulleys. This separation allows the rubber to stay flexible while the internal cords resist stretching under heavy load.
Aramid vs standard belt reinforcement
Standard drive belts often use polyester cords for internal reinforcement. Aramid fibers offer much higher tensile strength and stretch far less under heavy stress. They handle engine heat and sudden shock loads with ease. This extra stability reduces noise, prevents slip, and extends belt life in demanding conditions.
Why Choose an Aramid Drive Belt for a Jeep Wrangler?
Better resistance to demanding accessory loads
Off-road gear like high-output alternators, heavy-duty winches, and dual air compressors place massive loads on your engine drive system. An Aramid Reinforced Serpentine Belt handles these extra loads without slipping or stretching out of shape.
Reinforcement for high-tension applications
Modern tensioners apply strong pressure to keep drive belts tight. Aramid fibers resist stretching under constant high tension, keeping your accessories running smoothly at all times.
Resistance to repeated flexing
Your drive belt bends around small pulleys thousands of times per minute. Aramid cords resist internal fatigue from this continuous bending, preventing early cord breakage.
Performance in hot engine compartments
Jeep engine bays get very hot during slow trail crawls. Aramid fibers maintain their strength and shape in extreme heat, keeping your belt working reliable on long trips.
Why reinforcement does not make a belt indestructible
Aramid is not a substitute for correct belt sizing
Using a belt that is too long or too short will cause problems, regardless of how strong the internal cords are. Proper fitment is always required.
A premium belt can still fail from pulley problems
A seized pulley or a bad bearing will destroy any belt. Strong aramid cords cannot stop a stuck metal pulley from wearing down the rubber ribs.
Correct installation matters as much as belt material
Forcing a belt onto pulleys with a screwdriver can snap internal cords. Proper routing and tensioner retraction are vital for a long service life.
Jeep Wrangler Aramid Drive Belt Fitment Explained
Why Wrangler belt fitment is not one-size-fits-all
Jeep Wranglers use different accessory layouts based on several factors:
- Model year
- Engine size
- Air conditioning options
- Dual alternator setups
- Belt rib count
- Overall belt length
Mopar lists distinct part numbers across different Wrangler configurations, so double check your vehicle details before buying.
Wrangler 3.6L Pentastar V6 belt considerations
The 3.6L Pentastar V6 uses a specific belt length and rib pattern. Routing must follow the factory diagram exactly to clear the front timing cover and water pump.
Wrangler 3.0L EcoDiesel belt considerations
EcoDiesel engines create high low-end torque and use a heavy-duty accessory layout. They require a specific belt designed to handle diesel engine vibration.
Earlier Wrangler generations
Older TJ and JK Wranglers with 4.0L inline-six or 3.8L V6 engines use different belt lengths and pulley layouts than newer JL models.
JL Wrangler belt differences
Newer JL models with eTorque mild-hybrid systems use unique belt setups to handle the motor-generator unit.
Check the VIN before ordering
Your Vehicle Identification Number confirms your exact engine, year, and factory options.
Match the OE or aftermarket part number
Cross-reference your old belt’s part number with the new one to confirm a direct match.
Verify rib count and dimensions
Count the grooves on the inside of the belt and measure its total length before installation.
Confirm the exact engine application
Never assume a belt fits just because it says Jeep Wrangler on the box.
Aramid Reinforced Serpentine Belt Construction
EPDM rubber compound
Modern belts use Synthetic EPDM rubber because it resists heat cracking, ozone damage, and physical wear far better than old neoprene rubber.
Aramid tensile cords
Strong aramid cords run through the middle of the belt to carry the mechanical load without stretching.
Rib profile
V-shaped ribs on the inner surface fit precisely into pulley grooves to maximize surface contact and traction.
Belt backing
A smooth, durable backing fabric protects the outer side of the belt as it runs against flat idler pulleys.
Heat-resistant construction
Heat-resistant materials keep the belt flexible and strong in hot engine compartments.
Pulley contact surface
The ribbed rubber compound grips metal pulleys firmly to transfer power without squealing or slipping.
What the ribs actually do
The ribs increase contact surface area, wedging into pulley grooves to transfer rotational power efficiently.
What the reinforcement cords actually do
Internal cords carry the pulling force, keeping the belt at a constant length under load.
Why belt geometry affects fit
Incorrect rib depth or spacing causes the belt to ride improperly on pulleys, leading to fast wear and noise.
Aramid Reinforced vs Standard Serpentine Belts
Choosing between belt types comes down to your driving demands and vehicle load needs. Here is how construction materials affect everyday performance:
Strength and load handling
Aramid cords provide exceptional tensile strength, making them ideal for heavy accessory loads. Standard belts use polyester cords that work well for normal daily driving.
Flexibility
Aramid belts bend easily around tight pulleys without cracking. Standard belts offer good flex but may stiffen faster as they age.
Heat exposure
Aramid materials handle intense engine bay heat without degrading. Standard belts withstand normal operating temperatures but age faster under extreme thermal stress.
Noise
Reinforced belts resist stretching, which keeps proper tension and prevents belt squeal. Standard belts may squeal if they stretch or loose tension.
Cost
Aramid-reinforced belts cost more up front due to advanced materials. Standard belts offer a lower purchase price for budget-conscious repairs.
Expected durability
Aramid belts offer excellent wear resistance under heavy use. Standard belts deliver reliable service life under normal commuting conditions.
Best use cases
Use aramid belts for off-roading, towing, and high-output accessories. Standard belts are fine for stock vehicles on daily street drives.
| Feature | Aramid Reinforced | Standard Reinforcement |
| Tensile reinforcement | High-strength aramid fiber | Standard polyester fiber |
| High-load use | Excellent choice for heavy loads | Suitable for stock setups |
| Heat exposure | Handles high engine heat well | Standard thermal resistance |
| Flexibility | Remains flexible under flex stress | Good flexibility for stock pulleys |
| Cost | Moderately higher price | Budget-friendly pricing |
| Fitment | Must match exact application | Must match exact application |
| Best choice | Demanding off-road or towing use | Regular street driving |
Signs Your Jeep Wrangler Serpentine Belt Needs Attention
Visible cracks or damage
Small cracks across the rubber ribs mean the belt is aging. Multiple cracks close together show it is time for a replacement.
Frayed belt edges
Frayed edges indicate that the belt is rubbing against a pulley flange, often caused by a misaligned idler pulley.
Missing rib sections
If chunks of the rubber ribs break off, the belt loses grip and can snap suddenly.
Shiny or glazed belt surface
A shiny or glazed underside means the belt has been slipping and overheating against the pulleys.
Belt squealing
A high-pitched squeal during start-up or acceleration signals a loose belt, worn tensioner, or fluid contamination.
Chirping from the accessory drive
Rhythmic chirping noises usually point to a misaligned pulley or worn belt ribs.
Belt wandering on the pulley
If the belt moves back and forth on a flat pulley while running, the tensioner or pulley bearing is worn out.
Sudden loss of accessory operation
If your power steering gets heavy or the battery light comes on, the belt may have snapped or slipped off completely.
Why noise does not always mean belt failure
A squeaking noise can come from a bad pulley bearing rather than the belt itself.
Why a quiet belt can still have a problem
Modern EPDM belts rarely squeak when worn; they simply lose rubber depth while remaining quiet.
What Causes an Aramid Reinforced Belt to Fail?
Worn tensioner
A weak tensioner loses its spring tension, allowing the belt to slip, overheat, and wear out quickly.
Seized or rough pulley bearing
A stuck pulley grinds against the moving belt, melting the rubber in minutes.
Pulley misalignment
If a pulley sits crooked, it forces the belt to run at an angle, stripping the edges.
Incorrect belt routing
Routing the belt on the wrong side of a pulley turns accessories backward and damages the belt backing.
Wrong belt length
A belt that is too long will slip, while a belt that is too short overloads accessory bearings.
Oil or coolant contamination
Engine leaks soften the rubber compound, causing the belt to swell, slip, and deteriorate rapidly.
Foreign objects entering the belt drive
Gravel and sticks from off-road trails can get caught between the belt and pulleys, tearing the ribs.
Excessive heat
Extreme under-hood heat over time bakes the rubber, making it brittle and prone to cracking.
Normal material aging
Every drive belt eventually wears down from mechanical stress and time.
The belt may be the symptom, not the root cause
Replacing a damaged belt without fixing a stuck pulley will cause the new belt to fail quickly.
Why replacing only the belt can lead to repeat failure
Always inspect the tensioner and idler pulleys to prevent immediate damage to your new belt.
How to Inspect a Jeep Wrangler Aramid Drive Belt
Start with the engine off and cool
Always turn off the engine, remove the key, and let the motor cool down before placing your hands near drive belts.
Look across the full belt surface
Use a flashlight to check the exposed sections of the belt for cracks, fraying, or glossiness.
Check every rib
Twist the belt slightly to look into the V-grooves for missing rubber chunks or deep cracks.
Inspect the belt edges
Look for loose internal threads or uneven edge wear that signals poor alignment.
Look for contamination
Check for wet spots from engine oil, power steering fluid, or radiator coolant.
Examine pulley alignment
Sight down the row of pulleys to make sure they all line up in a straight line.
Inspect the tensioner
Check the tensioner mark to confirm it sits within its normal operating range.
Check accessory pulleys for abnormal movement
Wiggle each pulley by hand with the belt off to feel for loose bearings or rough movement.
What a healthy belt should look like
A good belt shows smooth, even rubber ribs without cracks, fraying, or oil stains.
What obvious damage means
Splitting, deep cracks, or exposed cords mean the belt must be replaced immediately.
When visual inspection is not enough
Use a belt wear gauge to measure rib depth, as modern EPDM rubber wears down without cracking.
How to Choose the Right Jeep Wrangler Aramid Drive Belt
Start with model year
Vehicle designs change over time, so start your search with your Wrangler’s exact build year.
Confirm the engine
Check whether you have the 3.6L V6, 2.0L Turbo, 3.0L EcoDiesel, or 6.4L V8 engine.
Check the OE part number
Look up the original Mopar part number stamped on your factory belt for a direct match.
Match rib count
Ensure the new belt has the exact same number of ribs as your factory pulleys.
Match belt length
Check the belt length specification in millimeters or inches to ensure proper tensioner fitment.
Confirm A/C configuration
Vehicles built without air conditioning use shorter drive belts than models with A/C.
Compare reputable belt manufacturers
Brands like Dayco offer high-quality aramid-reinforced EPDM belts built to SAE standards.
Check warranty and application data
Choose belts backed by strong manufacturer warranties and clear vehicle fitment guides.
| Check | Why It Matters |
| Model year | Belt routing changes across model generations |
| Engine | Different engines use unique accessory layouts |
| VIN | Verifies exact factory options and engine codes |
| OE part number | Provides a direct reference for cross-shopping |
| Rib count | Must match pulley groove patterns exactly |
| Belt length | Maintains proper tensioner position and force |
| A/C configuration | Alters total belt path length significantly |
| Manufacturer spec | Confirms high-load and heat capability ratings |
Popular Materials and Belt Construction Terms to Know
EPDM serpentine belts
Synthetic EPDM rubber is the industry standard material for heat resistance and long service life.
Aramid reinforced EPDM
Combines durable EPDM rubber with ultra-strong aramid tensile cords for maximum heavy-duty performance.
Polyester reinforced belts
Standard belts use polyester cords, which work well for everyday driving on stock engines.
OE-specification belts
Belts manufactured to match the original factory size, material, and performance standards.
Ribbed drive belts
Belts featuring parallel V-shaped ribs that run lengthwise to grip grooved pulleys.
Automotive V-ribbed belts
Another common name for serpentine belts that use multiple small V-grooves.
What “aramid reinforced” does not mean
It does not mean the belt is indestructible or immune to damage from bad pulleys.
Why the complete belt specification matters
Rubber quality, cord placement, and rib shape must all work together to ensure reliable operation.
Dayco lists aramid-reinforced EPDM construction for select Wrangler applications, meeting SAE J1459 and SAE J2432 standards.
Common Jeep Wrangler Serpentine Belt Problems
Belt squeal at startup
Possible tension or contamination issue
A loud squeal when turning the key usually points to a weak tensioner or water on the belt.
Chirping while driving
Possible alignment issue
A steady chirping sound while driving suggests a misaligned idler pulley or worn belt ribs.
Belt keeps coming off
Inspect tensioner and pulley alignment
If a new belt slips off repeatedly, check for a bent pulley bracket or a worn tensioner arm.
Belt wears on one edge
Look for pulley misalignment
Uneven edge wear shows that the belt is pulling sideways against a pulley flange.
New belt fails quickly
Check the tensioner and accessories
A rapid failure usually means a stuck accessory bearing or improper belt installation.
Belt looks fine but accessory performance changes
Inspect the complete accessory-drive system
If your battery drops charge while the belt looks good, the alternator itself may be failing.
Serpentine Belt Replacement Planning
When replacement makes sense
Replace your belt if you spot cracks, fraying, oil contamination, or if it has been in service for several years.
Why mileage alone should not decide replacement
Driving conditions affect belt wear far more than mileage. Off-road dust and high heat age belts faster than highway cruising.
Replace damaged belts promptly
Never delay changing a cracked or fraying belt; a snapped belt leaves you stranded without power steering or engine cooling.
Consider related components during service
Tensioner
Replacing the tensioner alongside the belt ensures proper pressure on your new drive component.
Idler pulleys
Idler pulley bearings wear out over time, so swap them out to keep your drive system quiet.
Accessory pulleys
Check all accessory pulleys for smooth rotation while the belt is off the engine.
Avoid installing a belt that only “looks close”
A belt that is slightly off in length will slip or damage your accessory bearings.
Keep the old belt until fitment is confirmed
Hold onto your old belt until you install the new one and test-run the engine.
Aramid Reinforced Serpentine Belt Maintenance
Keep fluids away from the belt
Clean up oil and coolant spills immediately to prevent the rubber compound from softening.
Watch for unusual belt noise
Listen for new squeaks, chirps, or thumps coming from the front of your engine bay.
Inspect after major engine work
Check belt alignment and tension after servicing the alternator, water pump, or radiator.
Check the belt after off-road trips
Rinse out trail mud, sand, and small pebbles caught in the pulley grooves after off-roading.
Inspect after a cooling-system leak
Coolant leaves a slick residue on drive belts that causes slippage and noise.
Address pulley problems early
Fix noisy pulley bearings right away to prevent them from snapping your drive belt.
Tools and Equipment for Belt Inspection
Inspecting and servicing your Jeep Wrangler’s drive system is straightforward with the right tools on hand:
Flashlight
A bright light helps you inspect dark engine corners for hidden cracks or alignment issues.
Inspection mirror
An adjustable mirror lets you check the underside of the belt without taking off engine covers.
Socket and hand-tool set
You need standard sockets and a breaker bar to retract the spring-loaded belt tensioner safely.
Torque wrench for applicable fasteners
A torque wrench ensures all pulley bolts are tightened to factory specifications during repairs.
Manufacturer-specific service information
Having the factory routing diagram prevents confusion when installing the new belt.
| Tool | Main Use | DIY Value |
| Flashlight | Spot cracks, fraying, and leaks | High |
| Inspection mirror | View hidden belt ribs and backings | Medium |
| Socket set | Retract tensioner and remove pulleys | High |
| Torque wrench | Tighten bolts to factory torque specs | High |
| Service manual | Verify correct routing and part fitment | Very high |
Jeep Wrangler Serpentine Belt Replacement Mistakes to Avoid
Buying by vehicle name alone
Ordering a belt just for a Jeep Wrangler without specifying the engine size leads to getting the wrong part.
Ignoring engine differences
The 3.6L V6 and 2.0L Turbo use completely different belt lengths and routing paths.
Using the wrong belt length
Installing a belt that is too short overloads bearings, while a long belt slips constantly.
Forgetting the rib count
A belt with six ribs will not seat properly on a seven-groove pulley.
Routing the belt incorrectly
Bypassing a pulley turns an accessory the wrong way or causes the belt to rub against engine brackets.
Forcing the belt over a pulley
Prying a belt over a pulley with a screwdriver tears the internal aramid cords.
Reusing a damaged tensioner
Putting a new belt on a weak tensioner leads to fast slippage and premature wear.
Ignoring a seized accessory pulley
Never install a new belt if an accessory pulley feels rough or hard to turn by hand.
Why belt routing diagrams matter
Routing diagrams ensure every accessory turns in the correct direction at the right speed.
Why “it fits” is not enough
A belt might fit over the pulleys but still have the wrong tension, leading to early failure.
Professional Inspection: When to Stop DIY Troubleshooting
Belt repeatedly comes off
If new belts keep throwing off the pulleys, a professional needs to check for bent brackets or frame alignment issues.
A pulley feels rough or seized
Seized accessories like a locked A/C compressor require professional repair and system flushing.
Severe belt damage is present
If a belt snaps and wraps around fan blades or damages wiring, have a shop assess the engine bay.
The accessory drive makes grinding noises
Loud grinding noises indicate failing internal bearings inside the alternator, water pump, or power steering pump.
You cannot confirm correct routing
If your vehicle is missing its routing decal, consult a professional repair database to avoid engine damage.
The vehicle has an unresolved charging or cooling problem
If a new belt does not fix overheating or battery drain issues, the alternator or water pump may be broken internally.
USA Expert Advice for Jeep Wrangler Belt Selection
Interview-style expert section with a qualified U.S. technician
Professional mechanics always verify the vehicle year, engine code, and factory options before selecting a drive belt. Diagnosing why an old belt failed is just as important as installing a new one. Aramid reinforcement provides superior strength, but it must be paired with healthy pulleys and correct tension to perform reliably on the trail.
Suggested expert quote format
When consulting certified technicians, always verify part numbers against official service manuals before making repairs.
Real-World Jeep Wrangler Belt Inspection Scenario
A hot summer morning in Arizona
A Jeep Wrangler owner notices a faint chirping sound from under the hood while preparing for a long desert drive.
What the inspection reveals
Belt condition
The belt looks okay on top, but closer inspection reveals micro-cracks along the inner EPDM ribs.
Tensioner condition
The tensioner arm vibrates excessively while the engine runs, showing its internal dampener is worn out.
Pulley alignment
The idler pulley bearing feels loose, causing the pulley to tilt slightly under load.
Fluid contamination
A slow power steering leak is dripping fluid onto the bottom crankshaft pulley.
Why the belt should not automatically get the blame
The belt noise was caused by a worn tensioner and fluid leak, proving that replacing the belt alone would not fix the problem long-term.
Aramid Reinforced Serpentine Belt Maintenance Schedule
Regular belt inspections keep your Wrangler reliable on the road and trail. Follow this general care schedule to spot wear early:
| Timing | What to Check |
| Routine service | Inspect belt surface for cracks, fraying, and proper tension |
| Before long trips | Listen for drive squeals and check pulley alignment |
| After fluid leaks | Clean fluid off belts and pulleys immediately |
| After belt replacement | Re-check belt routing and alignment after 100 miles |
| After repeat belt failure | Inspect tensioner spring force and all accessory bearings |
| When noise appears | Perform a full accessory-drive inspection for bad pulleys |
Frequently Asked Questions
What is an aramid reinforced serpentine belt?
It is a rubber drive belt that uses strong synthetic aramid fibers inside to carry mechanical loads without stretching.
Is an aramid serpentine belt better than a standard belt?
Yes, for high-load, high-heat applications like off-roading, towing, or running heavy accessories.
What is a Jeep Wrangler aramid drive belt?
It is an aramid-reinforced drive belt sized specifically for a compatible Jeep Wrangler engine layout.
Does every Jeep Wrangler use the same serpentine belt?
No; belt sizes and routing paths change based on model year, engine size, and factory accessories.
How do I know which serpentine belt fits my Wrangler?
Check your VIN, engine size, factory options, and old belt part number to confirm fitment.
How long does an aramid reinforced belt last?
Lifespan varies by driving conditions, but regular visual inspections help you replace it before it fails.
Can a bad tensioner damage a new serpentine belt?
Yes; a weak tensioner lets the belt slip and overheat, while a stuck tensioner causes excessive cord stress.
Why does my new serpentine belt squeal?
Squealing usually means the belt is loose, misaligned, or contaminated with oil or coolant.
Can I use an aftermarket aramid belt instead of an OEM belt?
Yes, provided the aftermarket belt matches the original length, width, rib count, and performance specifications.
Should I replace the tensioner with the belt?
Replacing the tensioner with the belt is good practice, especially on high-mileage vehicles.
What happens if a serpentine belt breaks?
You will lose power steering, alternator charging, and engine cooling, forcing you to pull over safely.
Can I drive with a damaged serpentine belt?
No; a damaged belt can snap without warning, leaving you stranded and risking engine overheating.
Final Recommendation
As a Jeep enthusiast who has spent years wrenching in my own garage, I know how vital a reliable drive system is on the trail. Choosing the right Aramid Reinforced Serpentine Belt comes down to matching your exact engine, year, and accessory layout. Never buy a belt based on the vehicle name alone; always verify the VIN and rib count first. Pairing an aramid-reinforced belt with a fresh tensioner and smooth pulleys guarantees reliable power delivery wherever your Wrangler takes you.
Ehatasamul Alom is a dedicated road hybrid bikes expert. With over 15 years of experience, he helps people find the perfect ride. He began his journey as a bike mechanic. He learned the ins and outs of every bike.
Ehatasamul Alom holds a Master's degree in Mechanical Engineering from a Brown University (Providence US 02912), where he specialized in material science and bicycle kinematics. His master's thesis focused on optimizing frame geometry for road hybrid bikes to improve rider comfort and efficiency.
Ehatasamul has an extensive professional background. He spent 10 years (2010-2020) as a Senior Bike Designer at "Urban Cycles," a leading bicycle manufacturer. In this role, he led the development of several award-winning road hybrid bikes, which are known for their durability and performance. He later served (2020-2024) as the Head of Product Development at "Gear Up," a company specializing in high-end cycling components. There, he developed innovative parts and accessories specifically for road hybrid bikes.
Over the years, Ehatasamul has become an authority on Roadhybridbikes. He understands their design and function. His work focuses on making bikes easy to use. Ehatasamul believes everyone should enjoy cycling. He writes guides that are simple to read. His passion for road hybrid bikes is clear. His goal is to share his knowledge with everyone. He wants to see more people on two wheels. His advice is always practical and easy to follow.
- Ehatasamul Alom
- Ehatasamul Alom
- Ehatasamul Alom
- Ehatasamul Alom
